CWD1222BK

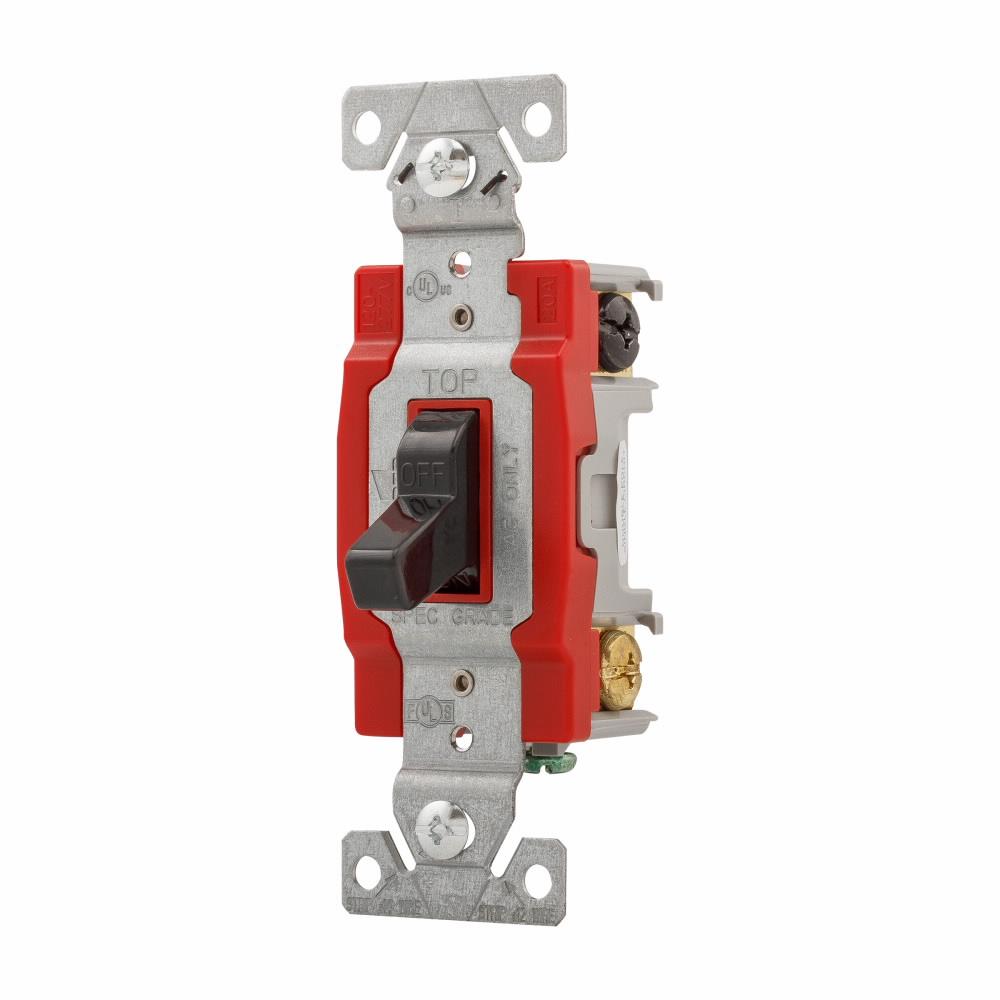

EATON Arrow Hart® 1222BK 1220 Automatic Grounding Construction Grade Toggle Switch, 120/277 V, 20 A, 1 hp Power Rating
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWD1222BK
- MPN: 1222BK
- UPC:032664735714
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Arrow Hart® construction grade AC toggle switches incorporate the most durable design elements in the industry and are horsepower rated to handle motor loads.
EATON Arrow Hart® Toggle Switch, Automatic Grounding Construction Grade, Series: 1220, 120/277 V, 20 A, 1 hp Power, 2 Pole, Toggle Actuator, Flush Mounting, Back/Side Wire/Screw Terminal, Polycarbonate, Black, Environmental Conditions: -4 to 140 deg F Operating Temperature, 1.31 in L x 0.88 in W x 3.28 in H Dimensions
| Actuator | : | Toggle |
| Amperage Rating | : | 20 A |
| Color | : | Black |
| Dimensions | : | 1.31 in L x 0.88 in W x 3.28 in H |
| Environmental Conditions | : | -4 to 140 deg F Operating Temperature |
| Material | : | Polycarbonate |
| Mounting | : | Flush |
| Number of Poles | : | 2 |
| Power Rating | : | 1 hp |
| Series | : | 1220 |
| Terminal Type | : | Back/Side Wire/Screw |
| Type | : | Automatic Grounding Construction Grade |
| Voltage Rating | : | 120/277 V |
- Rugged thermoplastic top and bottom housing provides durability and strength
- Color coded top housing helps identify amperage
- Back and side wire terminals accept up to 10 AWG solid or stranded wire
- Dual back wire holes for maximum feed through wiring flexibility
- 1-piece brass contact arm assures proper contact for low resistance switching
- Automatic grounding eliminates need for bonding jumper in metal enclosures
- Tri-combo terminal and mounting screws for flexibility in installation
- 14 to 10 AWG wire
