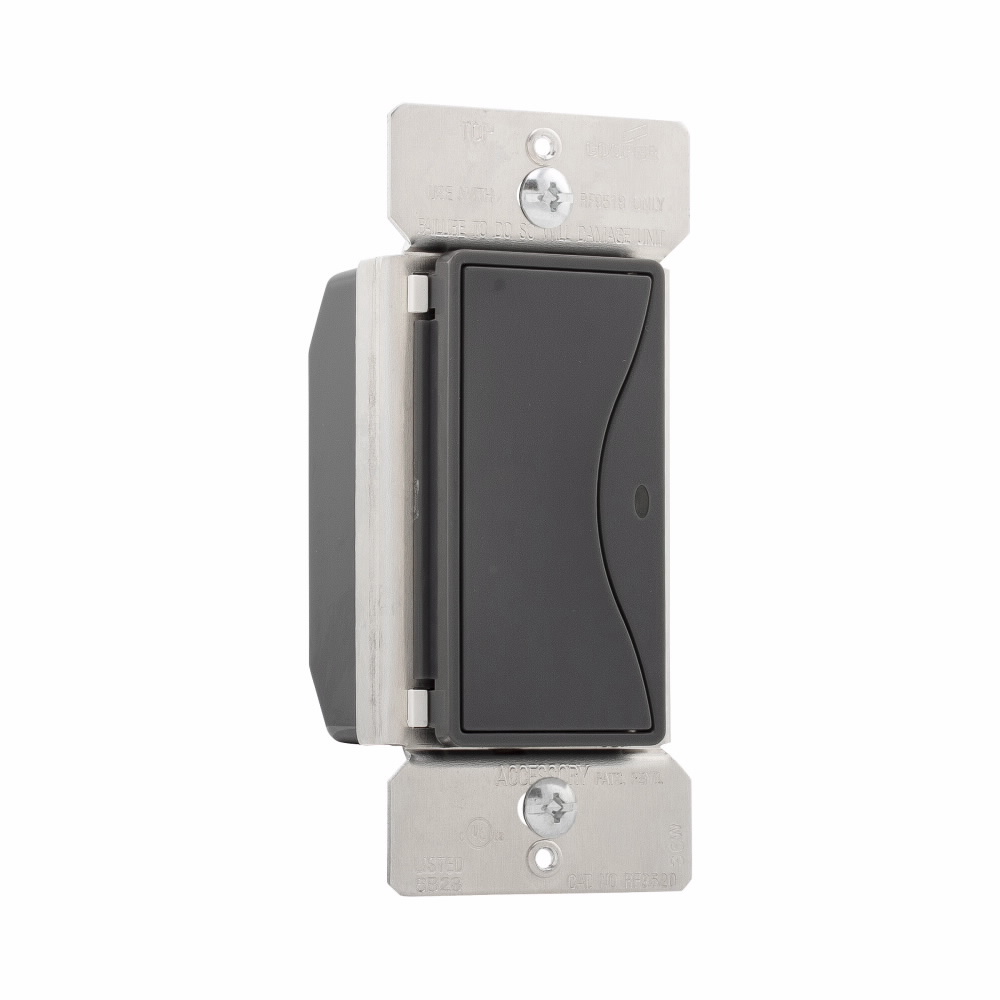

EATON ASPIRE RF™ RF9520SG Designer Lighting Control Switch, 120 V, 1 Poles, On/Off Operation, Silver Granite

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDRF9520SG
  • MPN: RF9520SG
  • UPC:032664670473
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Add wireless control to your lighting with Eaton's Z-Wave wireless collection to make your home connected and smart. This complete offering of lighting controls is easy to install, requires no special wiring and is perfect for both existing homes and new construction. With Z-Wave based technology you can create your own wireless home network to enhance security, control appliances, set the right mood and save energy. Select from a range of styles and colors to match your home's decor.

EATON ASPIRE RF™ Lighting Control Switch, Series: Designer, 120 V, 60 Hz Frequency, 1 Pole, Rapid Start, Operation Mode: On/Off, 3-Way Control, 32 to 104 deg F, Polycarbonate, Silver Granite, 4.2 in H x 1.8 in W x 1.36 in D Dimensions

Color      :      Silver Granite
Control      :      3-Way
Dimensions      :      4.2 in H x 1.8 in W x 1.36 in D
Frequency Rating      :      60 Hz
Material      :      Polycarbonate
Number of Poles      :      1
Operation Mode      :      On/Off
Series      :      Designer
Start Type      :      Rapid
Temperature Rating      :      32 to 104 deg F
Voltage Rating      :      120 V
  • Push pad actuator
  • Compatible with Aspire RF® master switch (RF9518) for 3-way, multi-location control using traditional 3-way wiring or dedicated traveler wires (up to 3 locations)
  • Electro-mechanical pushbutton for ON/OFF operation
  • Blue LED at center right indicates ON/OFF load status
  • Cannot use association function, as this is a non-RF device use traveler wires for 3-way application
  • Decorator and designer series products offer the same functionality with two distinct styles
  • Neutral wire is not required for installation of device
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9166ab44fa78de2d9c9f178dd12da4dfd6ce249596f8f2ddef31a707d7418cbe.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5a51d4e5787d85c1fb742afaa0759053ef86ce8530c1dd7c32a255a48b5253b6.pdf
