9507TRDS EATON
EATON 9507TRDS CWD9507TRDS
Send Print
  1. pin-int

CWD9507TRDS

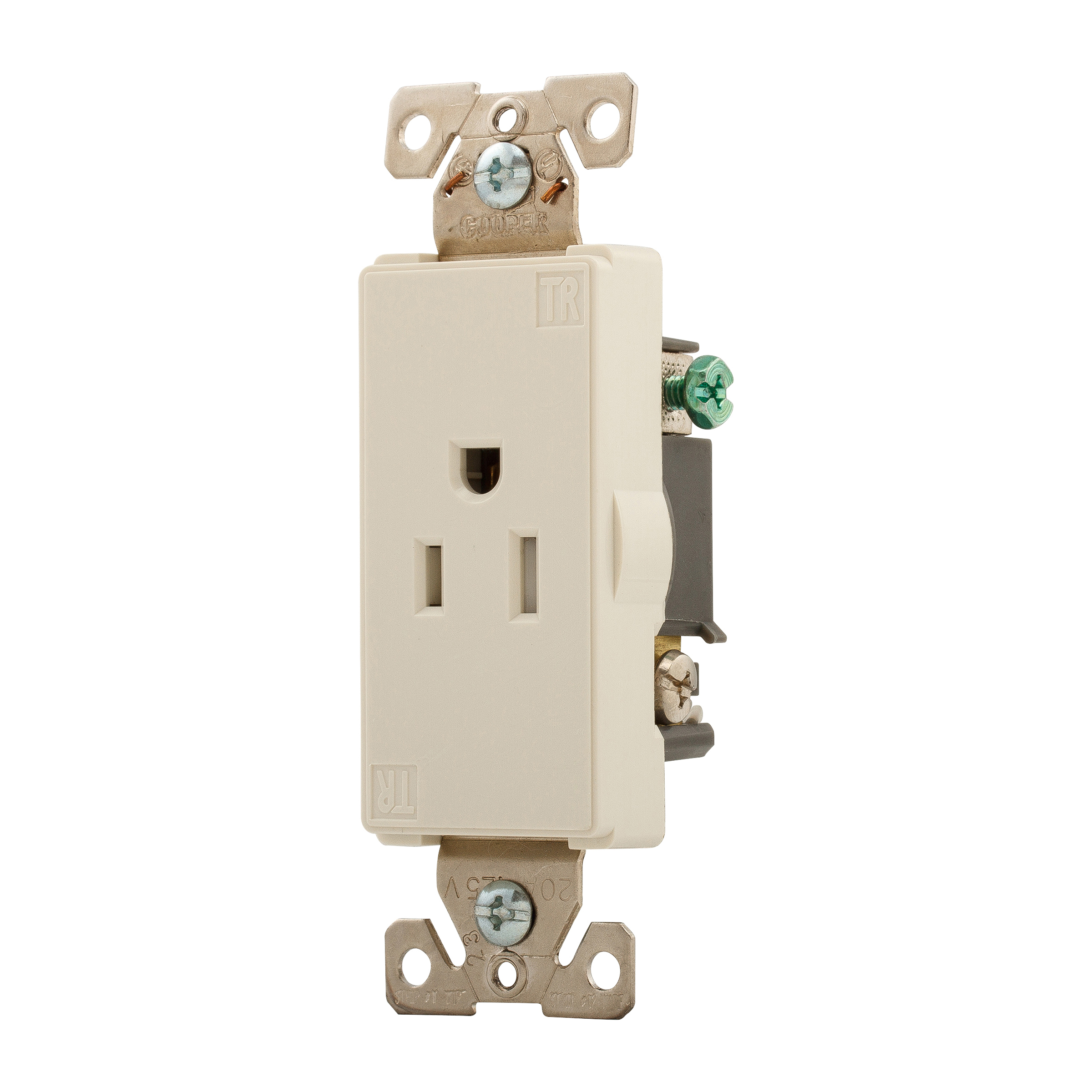

EATON Aspire® 9507TRDS Receptacles Straight Blade Receptacle, 125 V, 15 A, 2 Poles, 3 Wires, Desert Sand

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD9507TRDS
  • MPN: 9507TRDS
  • UPC:032664665509
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

From decorator and standard styles to tamper resistant receptacles, our broad line covers virtually any need throughout a house. All of our receptacles are designed for long-term reliability and ease of installation, while meeting and exceeding the latest industry and UL performance standards.

EATON Aspire® Straight Blade Receptacle, Receptacles, 125 V, 15 A, 2 Pole, 3 Wires, 5-15R NEMA Rating, -20 to 70 deg C, Back/Side Wire/Push-In/Screw Terminal, Thermoplastic, Desert Sand, 1.3 in Dia x 3.81 in H Dimensions

Amperage Rating      :      15 A
Color      :      Desert Sand
Dimensions      :      1.3 in Dia x 3.81 in H
Material      :      Thermoplastic
NEMA Rating      :      5-15R
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -20 to 70 deg C
Terminal Type      :      Back/Side Wire/Push-In/Screw
Type      :      Receptacles
Voltage Rating      :      125 V
  • Brass contacts
  • Flush mounting
  • Nylon face insulation
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_12800ac60465fc30b8650c3c538e35a7e34e9f8095cde9c268980560c9259f2d.pdf
