4067BK-BU
EATON
https://www.billows.com/3410166/product/CWD4067BKBU
https://www.billows.com/3410166/product/CWD4067BKBU
CWD4067BKBU

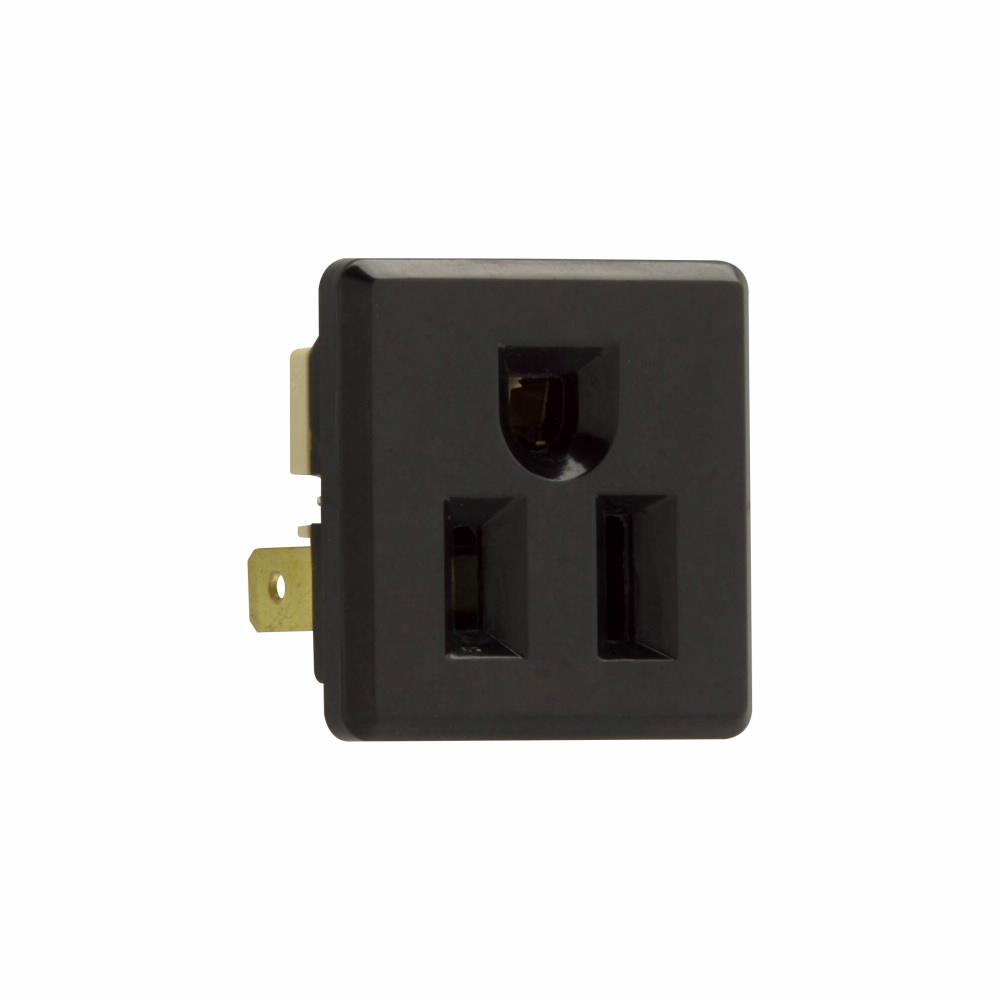

EATON Arrow Hart® 4067BK-BU Grounding Quick-Connect Locking Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWD4067BKBU
- MPN: 4067BK-BU
- UPC:032664594137
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Eaton's straight blade receptacles cover the full range of residential, hospital, industrial, construction, and commercial grades to meet any application. Choose from decorator or traditional styles, multiple colors, tamper resistant solutions and weather resistant products for exterior installations. Eaton also offers special solutions for complex environments including corrosion-resistant, severe-duty insulated and watertight products.
EATON Arrow Hart® Locking Receptacle, Grounding Quick-Connect, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15R, Residential Grade, Thermoplastic, Black, 1.29 in L x 0.71 in W x 2.61 in H
| Amperage Rating | : | 15 A |
| Color | : | Black |
| Dimensions | : | 1.29 in L x 0.71 in W x 2.61 in H |
| Grade | : | Residential |
| Material | : | Thermoplastic |
| NEMA Rating | : | 5-15R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Type | : | Receptacles |
| Voltage Rating | : | 125 V |
- Large face, quick connect
- Polypropylene base
- Brass contact
- 14 to 12 AWG wire
- Snap-in mounting
- Urea face
- Single-style
