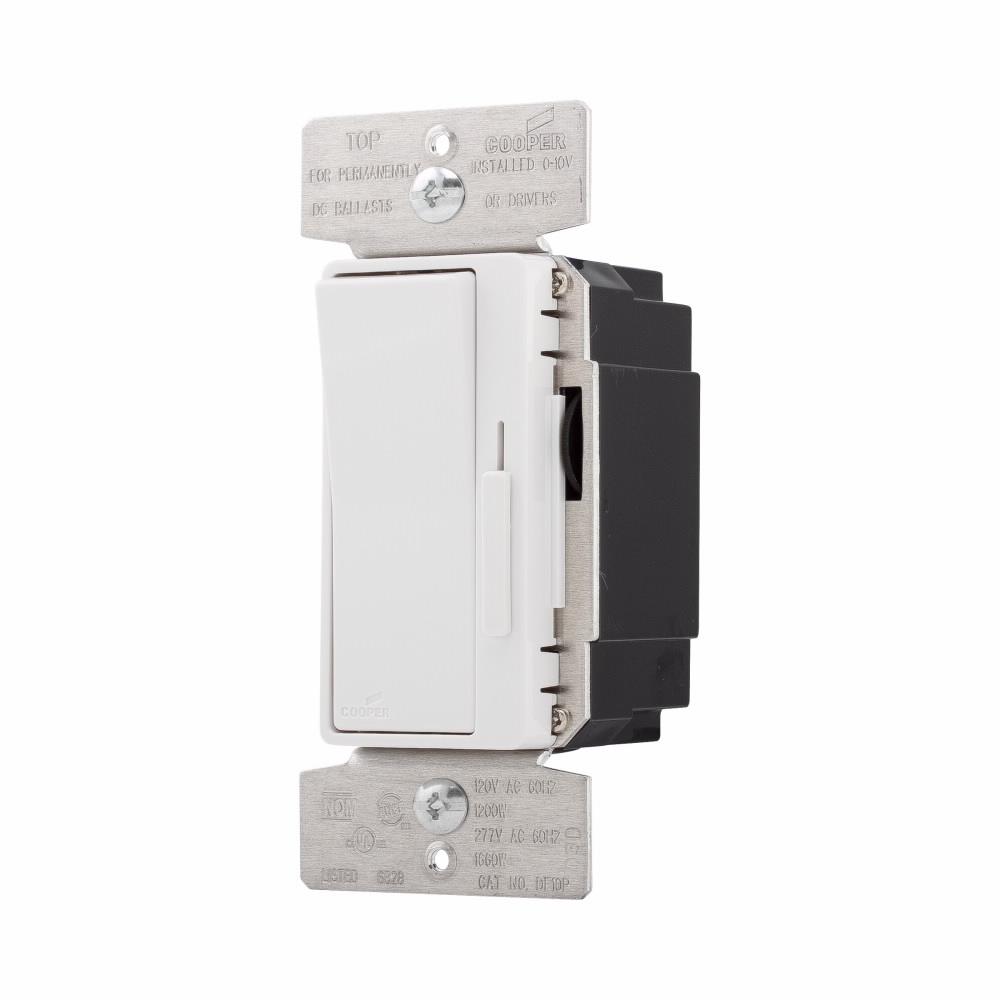

EATON DF10P-C4 Decorator Dimmer Switch, 120/277 VAC/0 to 10 VDC, 8 A, 1 Poles, Preset Operation, Black/White/Ivory

  • Manufacturers: Eaton
  • Brand Name: EATON
  • MPN: DF10P-C4
  • UPC:032664736841
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Using the latest in dimming technology, Eaton's dimmers let you adjust the level of your lighting at the light switch, so you can bring the right look to the room and save money at the same time. That s because lighting controls reduce the amount of electricity used by your lights, which saves electricity, reduces utility bills and extends the life of the bulb. Eaton's lighting controls are compatible with most common lighting loads, including LED, CFL, MLV, ELV and Fluorescent; and they come in multiple styles and colors, you can select the perfect dimmer for every room in your home or commercial building.

EATON Decorator Dimmer Switch, 120/277 VAC/0 to 10 VDC, 8 A, 1200/1660 W Power, 60 Hz Frequency, 1 Pole, Fluorescent/LED Lamp, Operation Mode: Preset, Wall Mounting, Back/Side Wire Terminal, 0 to 40 deg C, Polycarbonate, Black/White/Ivory, 3.31 in L x 2.84 in W x 5.39 in H Dimensions

Amperage Rating      :      8 A
Color      :      Black/White/Ivory
Dimensions      :      3.31 in L x 2.84 in W x 5.39 in H
Frequency Rating      :      60 Hz
Lamp Type      :      Fluorescent/LED
Material      :      Polycarbonate
Mounting Type      :      Wall
Number of Poles      :      1
Operation Mode      :      Preset
Power Rating      :      1200/1660 W
Temperature Rating      :      0 to 40 deg C
Terminal Type      :      Back/Side Wire
Voltage Rating      :      120/277 VAC/0 to 10 VDC
  • Integrated linear slide control for easy, precise operation
  • 14 to 12 AWG allowable wire
  • Preset feature allows user to return to previous light setting when turning lights on
  • 1000 sq-ft coverage illumination
  • Neutral is not required for installation of device
  • Replaces a standard switch and offers dimmer capabilities
  • Square law dimming, perceived dimming level is proportional to the slider position
  • Power failure memory
  • Electrostatic discharge protection
  • Precise color matching to match room decor
  • Compatible with any decorator wallplate
  • Adjustable high end trim
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4f465799fed0a6b3befb00c5a3e170b405142e2008b511bc77c94bd36d5b41a1.pdf
