CWDAH1202PL

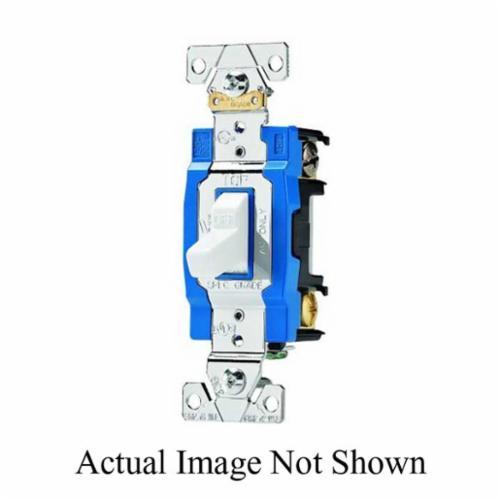

EATON Arrow Hart AH1202PL Automatic Grounding Premium Piloted Switch Specification Grade Toggle Switch, 120/277 V, 15 A, 1/2 hp, 2 hp Power Rating
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWDAH1202PL
- MPN: AH1202PL
- UPC:032664706448
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Industrial grade toggle switches incorporate the most durable design elements in the industry and are horsepower rated to handle motor loads. Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections. Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure. Ground screw terminal standard. 0.05 in THK steel mounting strap zinc plated for corrosion resistance. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications. Combination slot/Phillips® head mounting and terminal screws ease installation with power screwdrivers (slot/robertson screws in Canada where available). Tri-combo screws.
EATON Arrow Hart Toggle Switch, Automatic Grounding Premium Piloted Switch Specification Grade, 120/277 V, 15 A, 1/2 hp, 2 hp Power, 2 Pole, Toggle Actuator, Wall Mounting, Screw Terminal, 30000 Cycles Operating Cycles, Polycarbonate/Urea, Red, Environmental Conditions: -20 to 60 deg C Operating Temperature, 3.28 in L x 1.31 in W x 1.05 in H Dimensions
| Actuator | : | Toggle |
| Amperage Rating | : | 15 A |
| Color | : | Red |
| Dimensions | : | 3.28 in L x 1.31 in W x 1.05 in H |
| Environmental Conditions | : | -20 to 60 deg C Operating Temperature |
| Material | : | Polycarbonate/Urea |
| Mounting | : | Wall |
| Number of Poles | : | 2 |
| Operating Cycles | : | 30000 Cycles |
| Power Rating | : | 1/2 hp, 2 hp |
| Terminal Type | : | Screw |
| Type | : | Automatic Grounding Premium Piloted Specification Grade |
| Voltage Rating | : | 120/277 V |
- 14 to 10 AWG terminal accommodation
- 2.4 in L screw to screw
