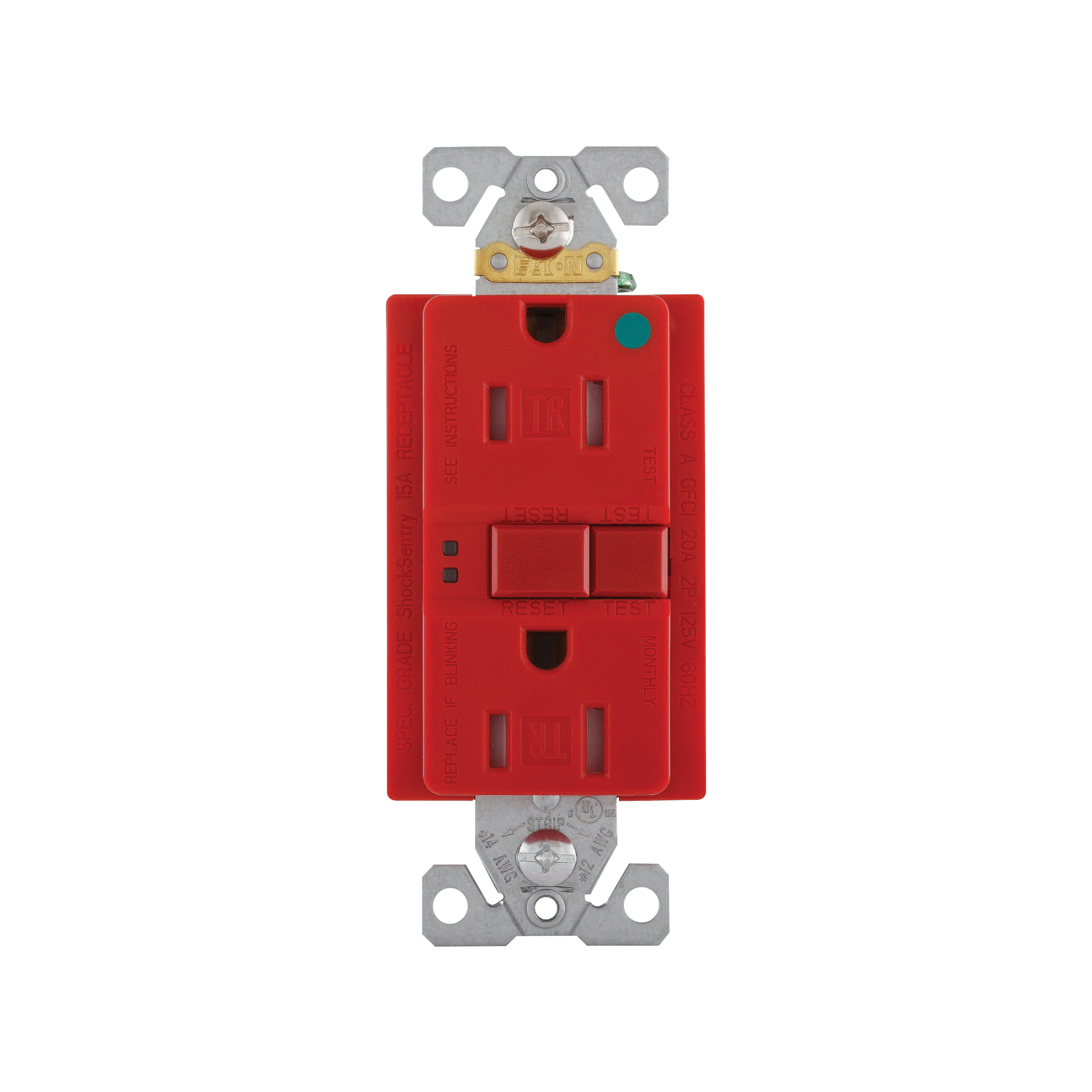

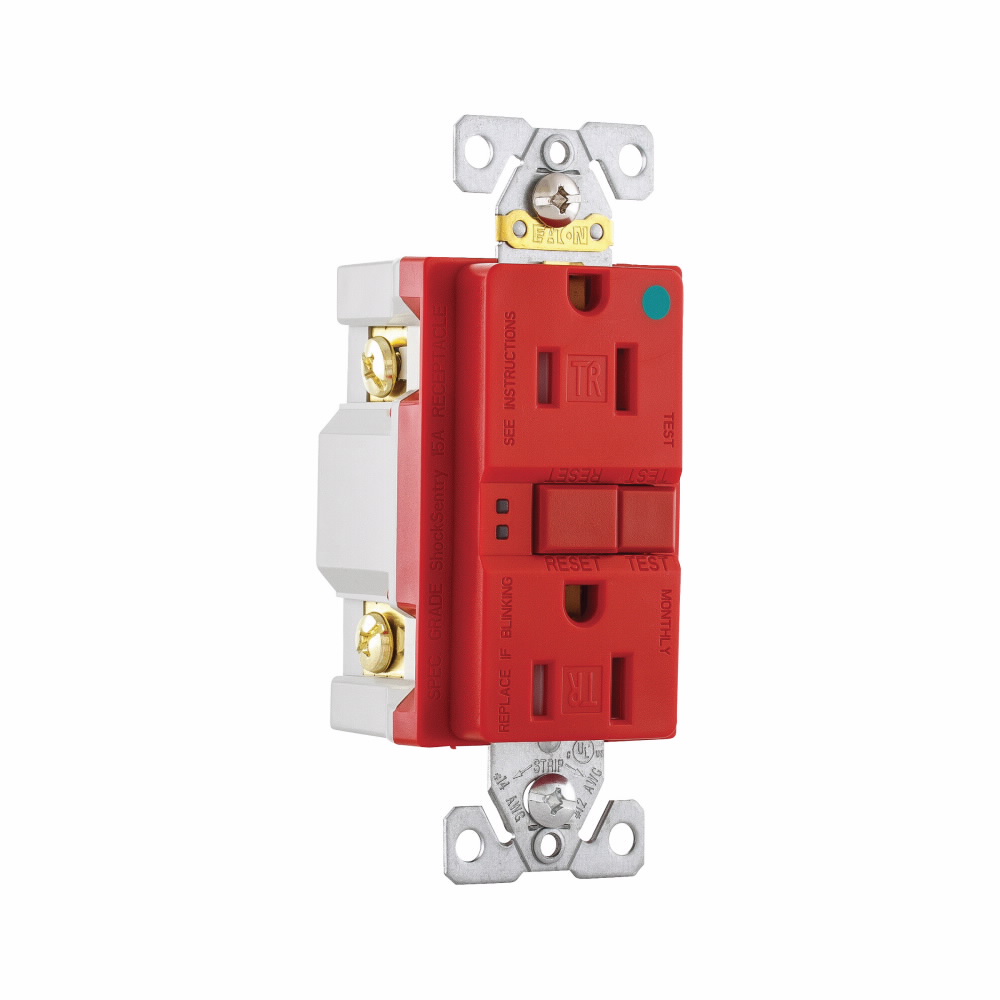

EATON Arrow Hart® TRSGFH15RD Duplex Outlet GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Red

  • Manufacturers: Eaton
  • Brand Name: EATON
  • UPC:032664740039
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's Ground Fault Circuit Interrupter (GFCI) receptacles are circuit interrupters designed to recognize a ground fault in your wiring and immediately break the flow of electricity, thus protecting you from electrical shock. Further, they prevent re-setting if, once tripped, the ground fault renders the device no longer functional. Eaton GFCIs are tested to the highest standards and provide dependable, state-of-the-art protection suitable for residential, commercial, and industrial settings, including homes, offices, hospitals, schools, and even outdoor applications. When combined with Eaton's AFCI technology, Eaton's ground fault circuit interrupter receptacles provide fire and electrical safety in one device (AF/GF) and are also available in breakers.

EATON Arrow Hart® GFCI Receptacle, Duplex Outlet, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, Back/Side Wire Terminal, Polycarbonate, Red, 2.813 in L x 2 in W x 4.625 in H Dimensions

Amperage Rating      :      15 A
Color      :      Red
Dimensions      :      2.813 in L x 2 in W x 4.625 in H
Grade      :      Commercial
Material      :      Polycarbonate
NEMA Rating      :      NEMA 5-15R
Number of Poles      :      2
Number of Wires      :      3
Terminal Type      :      Back/Side Wire
Type      :      Duplex Outlet
Voltage Rating      :      125 VAC
  • Performs periodic self tests to ensure integrity of GFCI protection if no ground fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
  • Meets and exceeds 10 kA short circuit testing and underwriters laboratories UL 943 safety standards
  • Large visual trip indicator light gives quick notification of a tripped or "end of life" condition
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
  • Ground termination with back wire clamp provides secure wiring and reduces installation time
  • Tamper resistant shutters resist the insertion of foreign objects
  • Line side terminals are backed out and staked for fast installation
  • Horizontal test/reset button alignment provides larger unobstructed area
  • Test and reset buttons are color matched to provide superior aesthetics
  • Tapered backwire openings handle multiple wire sizes and types for applications up to 10 AWG stranded/solid wire
  • When downstream receptacles are wired from load side, a 20 A feed through rating offers full protection
  • Line/load miswiring protection, ShockSentry GFCI’s will not provide power downstream when wired incorrectly
  • Tri combo head terminal and mounting screws
