9352AN EATON
EATON 9352AN CWD9352AN
Send Print
  1. pin-int

CWD9352AN

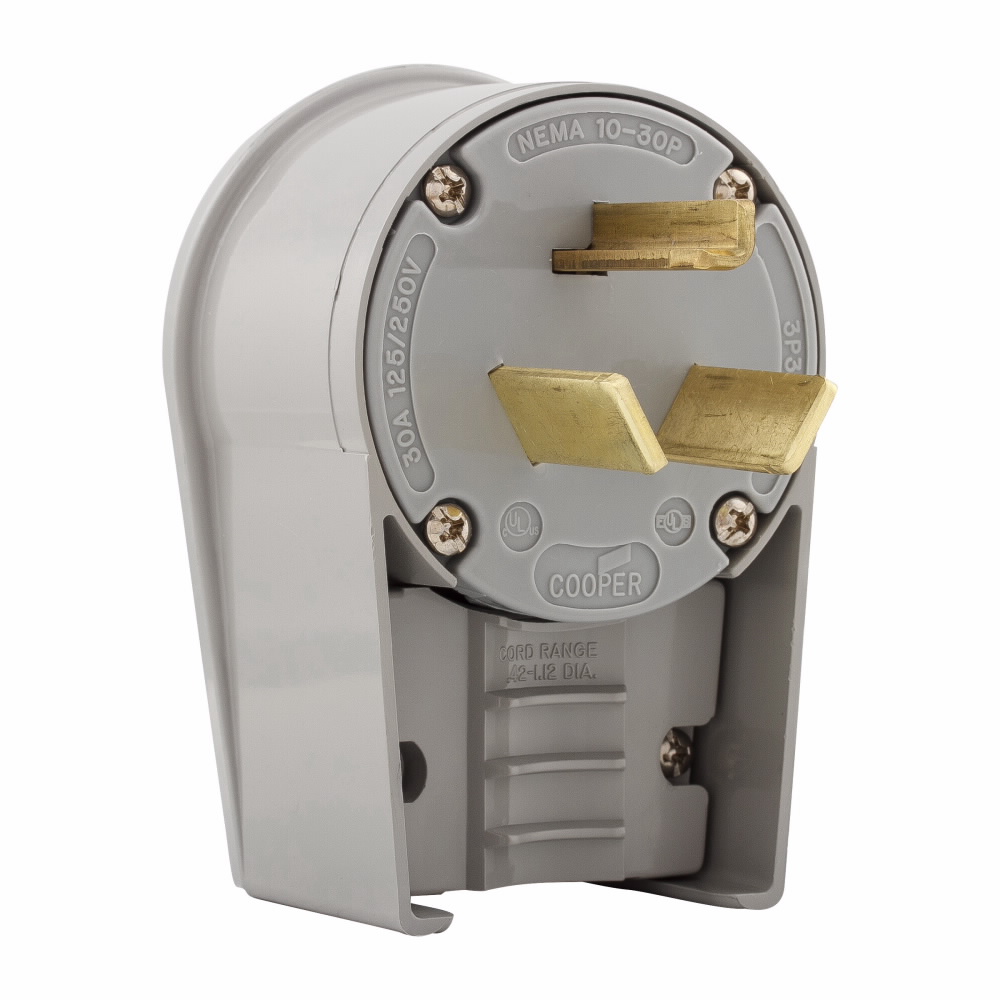

EATON 9352AN Non-Grounding Straight Blade Plug, 125/250 VAC, 30 A, 3 Poles, 3 Wires, Gray

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD9352AN
  • MPN: 9352AN
  • UPC:040893018799
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Straight Blade Plug, Non-Grounding, 125/250 VAC, 30 A, 3 Poles, 3 Wires, NEMA 10-30P, Commercial Grade, Nylon, Gray, 3 in L x 1.8 in W x 4.3 in H

Amperage Rating      :      30 A
Color      :      Gray
Dimensions      :      3 in L x 1.8 in W x 4.3 in H
Grade      :      Commercial
Material      :      Nylon
NEMA Rating      :      10-30P
Number of Poles      :      3
Number of Wires      :      3
Type      :      Plug
Voltage Rating      :      125/250 V
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0efff51c6a9dbc273b126766e53e23f1fd5b706f88460b11df4da327abdb357a.pdf
