RFS15-V EATON
EATON RFS15-V CWDRFS15V
Send Print
  1. pin-int

CWDRFS15V

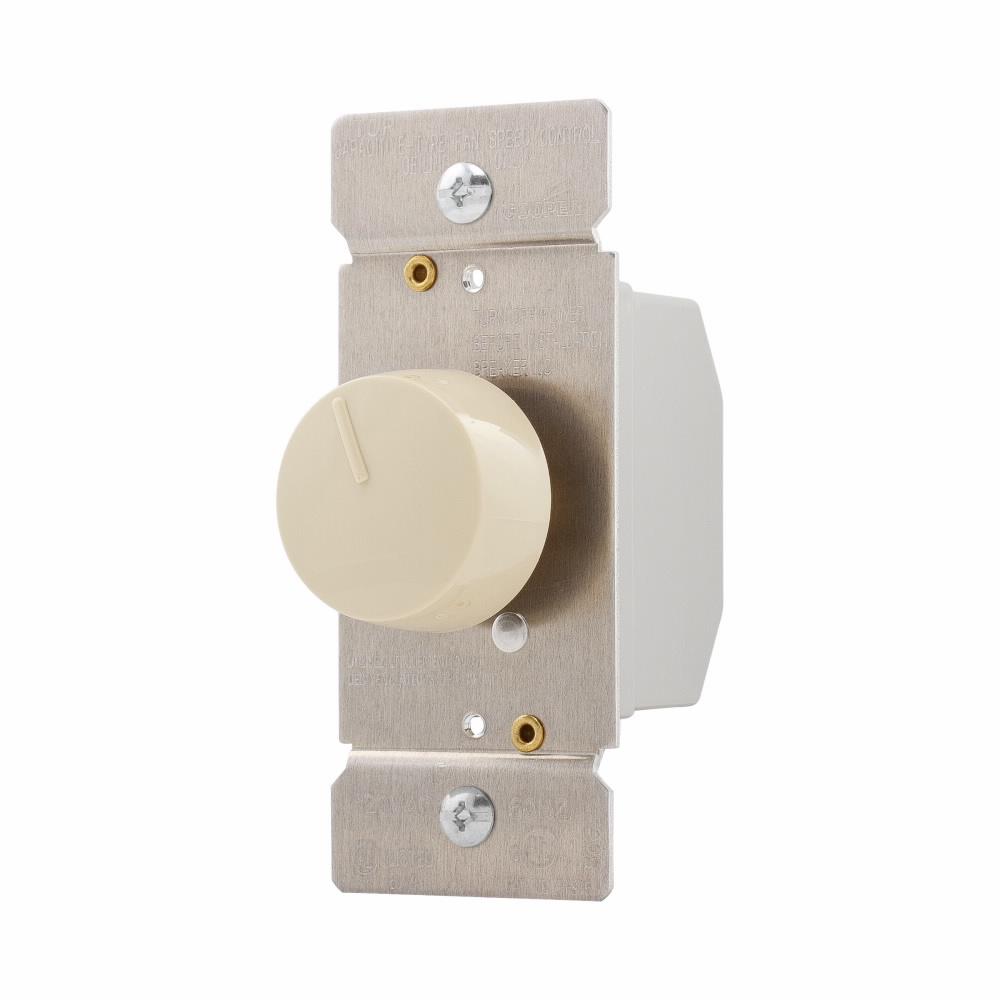

EATON REACT® RFS15-V Rotary Fan Speed Control, 120 VAC, 1.5 A, 3-Speed Operational Mode, Polycarbonate, Ivory

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDRFS15V
  • MPN: RFS15-V
  • UPC:032664699153
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's fan controls vary the speed of air flow and employ special circuitry to quiet the fan's motor at low speeds. Install the device in place of a standard switch to add convenient fan control with quiet, smooth actuation. Tri-combo and ground screws help allow easy accesibility and installation. The top and back body are virtually unbreakable, and the device features electrostatic discharge protection, radio frequency interface filtering, and power failure memory. Eaton fan controls are available with color change kits and are compatible with traditional-style or screwless wallplates.

EATON REACT® Fan Speed Control, Rotary, 120 VAC, 1.5 A, 3-Speed/On/Off/Dim/Bright Operational Mode, Flush Mounting, Lead Wire Terminal, 0 to 40 deg C, Polycarbonate, Ivory, 2.3 in L x 3.08 in W x 4.75 in H Dimensions

Amperage Rating      :      1.5 A
Color      :      Ivory
Dimensions      :      2.3 in L x 3.08 in W x 4.75 in H
Material      :      Polycarbonate
Mounting      :      Flush
Operational Mode      :      3-Speed
Temperature Rating      :      0 to 40 deg C
Terminal Type      :      Lead Wire
Type      :      Rotary
Voltage Rating      :      120 VAC
  • Power failure memory, non-preset
  • 16 AWG allowable wire
  • Maintained closure
  • 60 Hz frequency rating
  • Incandescent, halogen load type
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_575ff7c74828fb13be392fd309391784fbae4b051d9219b97e815bc8b238becf.pdf
