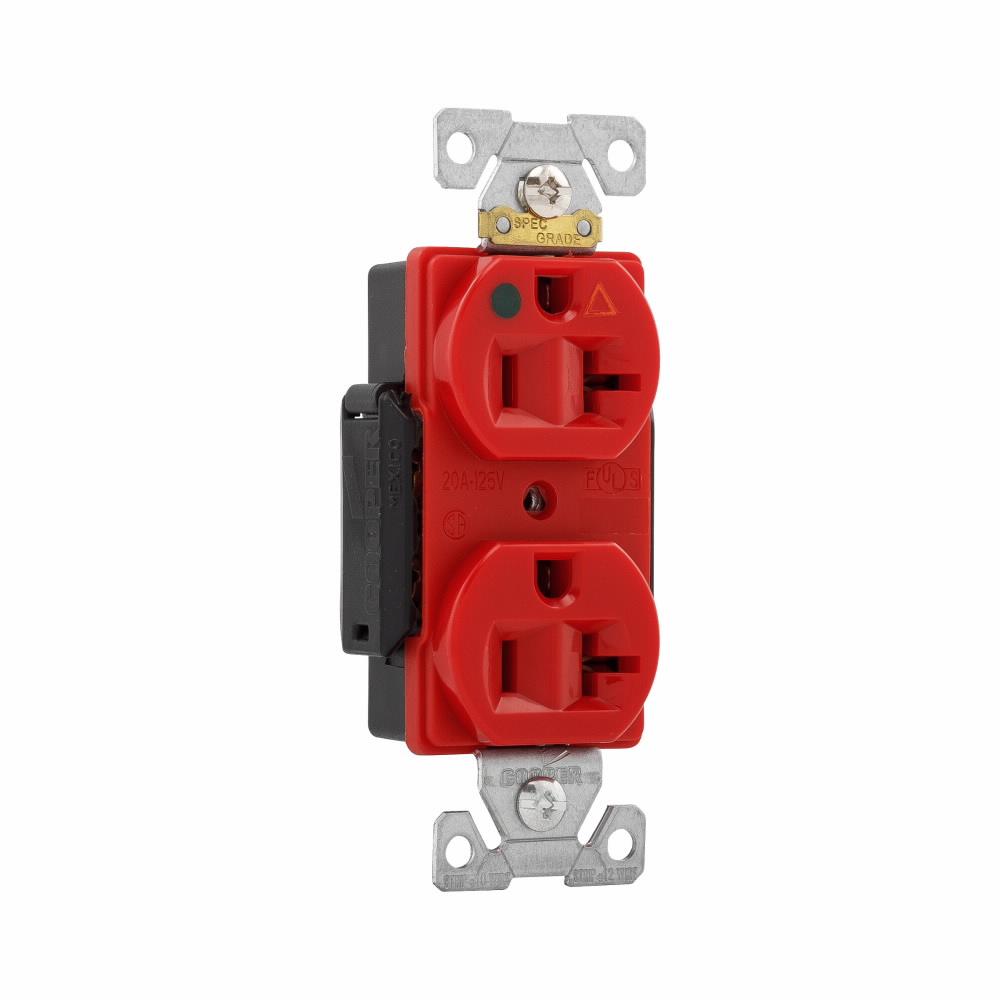

EATON Arrow Hart® IG8300RD IG8300 Duplex Isolated Ground Premium Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDIG8300RD
  • MPN: IG8300RD
  • UPC:32664560460
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Hospital specification grade straight blade receptacles - isolated ground premium back wire and side wire. Arrow Hart® feature rich line of hospital grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and federal specification WC596 to provide a consistent means of connectivity where downtime can be critical.

EATON Arrow Hart® Straight Blade Receptacle, Duplex Isolated Ground Premium, Series: IG8300, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital/Industrial Grade, -4 to 158 deg F, Screw Terminal, Nylon/PVC, Red, 4.19 in H x 1.3 in W x 0.89 in D Dimensions

Amperage Rating      :      20 A
Color      :      Red
Dimensions      :      4.19 in H x 1.3 in W x 0.89 in D
Grade      :      Hospital/Industrial
Material      :      Nylon/PVC
NEMA Rating      :      NEMA 5-20R
Number of Poles      :      2
Number of Wires      :      3
Series      :      IG8300
Temperature Rating      :      -4 to 158 deg F
Terminal Type      :      Screw
Type      :      Duplex Isolated Ground Premium
Voltage Rating      :      125 VAC
  • Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
  • Exclusive 5-leaf, brass line contacts provide consistent performance and superior plug retention
  • Rigid, glass reinforced nylon base lends ultimate strength and superior high heat resistance in contact carrier
  • 0.03 in solid brass, non-riveted, integral 1-piece isolated grounding shunt system assures ground integrity under heaviest use isolated from common building ground
  • High impact and chemical resistant nylon face maintains receptacle integrity
  • Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
  • All terminal and mounting screws triple combination (Slot/Phillips/Robertson) head for maximum installer flexibility
  • Long, broad mounting strap helps reach large panel cutouts for code compliance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Screw-Catch™ feature on duplex devices speeds mounting of wallplates
