CWL715FO
EATON
https://www.billows.com/3410276/product/CWDCWL715FO
https://www.billows.com/3410276/product/CWDCWL715FO
CWDCWL715FO

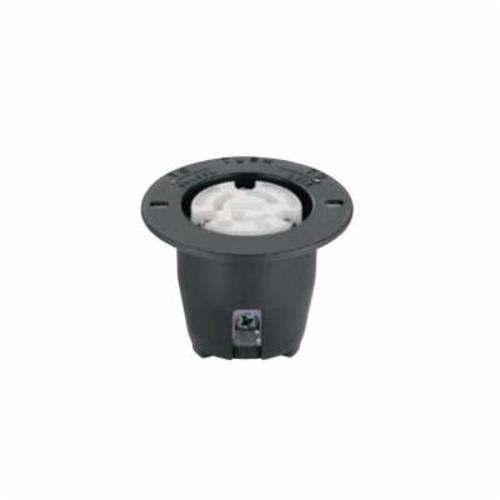

EATON Arrow Hart™ Hart-Lock® Safety Grip™ Eaton Wiring Devices CWL715FO Locking Flanged Outlet, 277 VAC, 15 A, 2 Poles, 3 Wires, Black/White
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWDCWL715FO
- MPN: CWL715FO
- UPC:040893680422
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Industrial specification grade locking devices - inlets and outlets 15 A, 277 vac NEMA L7-15 2-pole 3-wire. The widest range of NEMA and non-NEMA devices, designed and built with superior materials for long-lasting performance.
EATON Arrow Hart™ Hart-Lock® Safety Grip™ Eaton Wiring Devices Locking Flanged Outlet, 277 VAC, 15 A, 2 Pole, 3 Wires, NEMA L7-15 NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, Nylon/Polycarbonate, Black/White, 2.56 in Dia x 1.92 in H Dimensions
| Amperage Rating | : | 15 A |
| Color | : | Black/White |
| Dimensions | : | 2.56 in Dia x 1.92 in H |
| Grade | : | Industrial |
| Material | : | Nylon/Polycarbonate |
| NEMA Rating | : | NEMA L7-15 |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Back/Side Wire |
| Voltage Rating | : | 277 VAC |
- Mounting holes interchangeable with competitive units
- Back-wire terminal clamps for easy secure wiring
- Individual wiring compartments with tapered channel for easy insertion of wires
- Nylon flanged housing/interior body, polycarbonate terminal retainer
- 14 to 8 AWG wire
