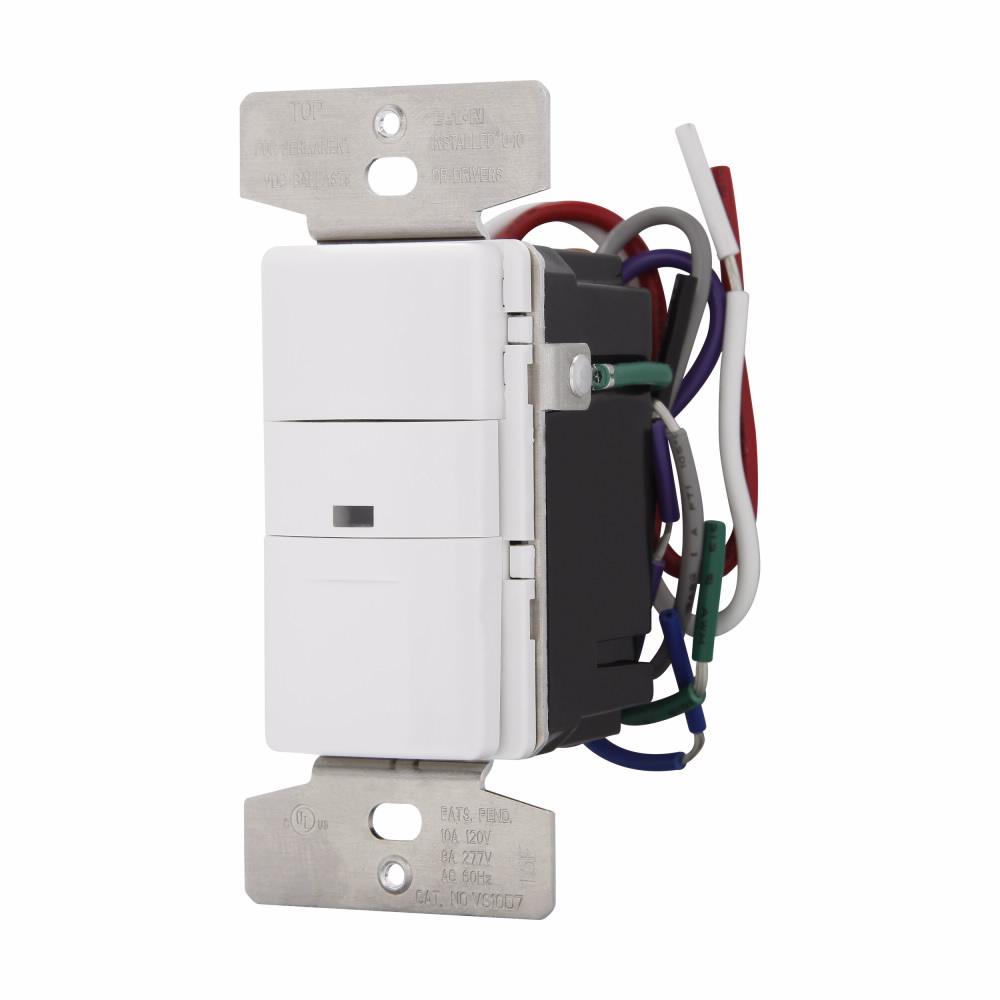

EATON VS10D7-W Dimmer Sensor, 120/277 V, 8/10 A, 1 Pole, White

  • Manufacturers: Eaton
  • Brand Name: EATON
  • MPN: VS10D7-W
  • UPC:032664748677
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Enjoy advanced energy savings and state-of-the-art automation with Eaton's occupancy and vacancy sensors. Eaton's motion sensor lighting controls use advanced Passive Infrared (PIR) and ultrasonic sensing technology to detect your presence and switch lights ON. Then, once you ve left the room, our sensors turn the lights OFF following a preset period of time. Sensors are the perfect solution for commercial and residential applications where a switch is inconveniently located and in spaces where lights may be left on accidentally.

EATON Dimmer Sensor, 120/277 V, 8/10 A, 1200/2200 W, 60 Hz, 1 Pole, Flush Mount, 0 to 40 deg C, White, 1.969 in L x 2.756 in W x 4.252 in H

Amperage Rating      :      8/10 A
Color      :      White
Dimensions      :      1.969 in L x 2.756 in W x 4.252 in H
Frequency Rating      :      60 Hz
Mounting Type      :      Flush
Number of Poles      :      1
Power Rating      :      1200/2200 W
Temperature Rating      :      0 to 40 deg C
Voltage Rating      :      120/277 V
  • 3 in 1 device combining dimming, switching and motion sensing
  • Digital PIR sensor for occupancy (auto ON/auto OFF) and vacancy (manual ON/auto OFF) sensing
  • Provides 180 deg field of view and 1000 sq-ft of major motion coverage
  • Selectable ambient light override in occupancy sensor models
  • Wallbox occupancy sensor
