TR5362RD
EATON
https://www.billows.com/3410315/product/CWDTR5362RD
https://www.billows.com/3410315/product/CWDTR5362RD
CWDTR5362RD

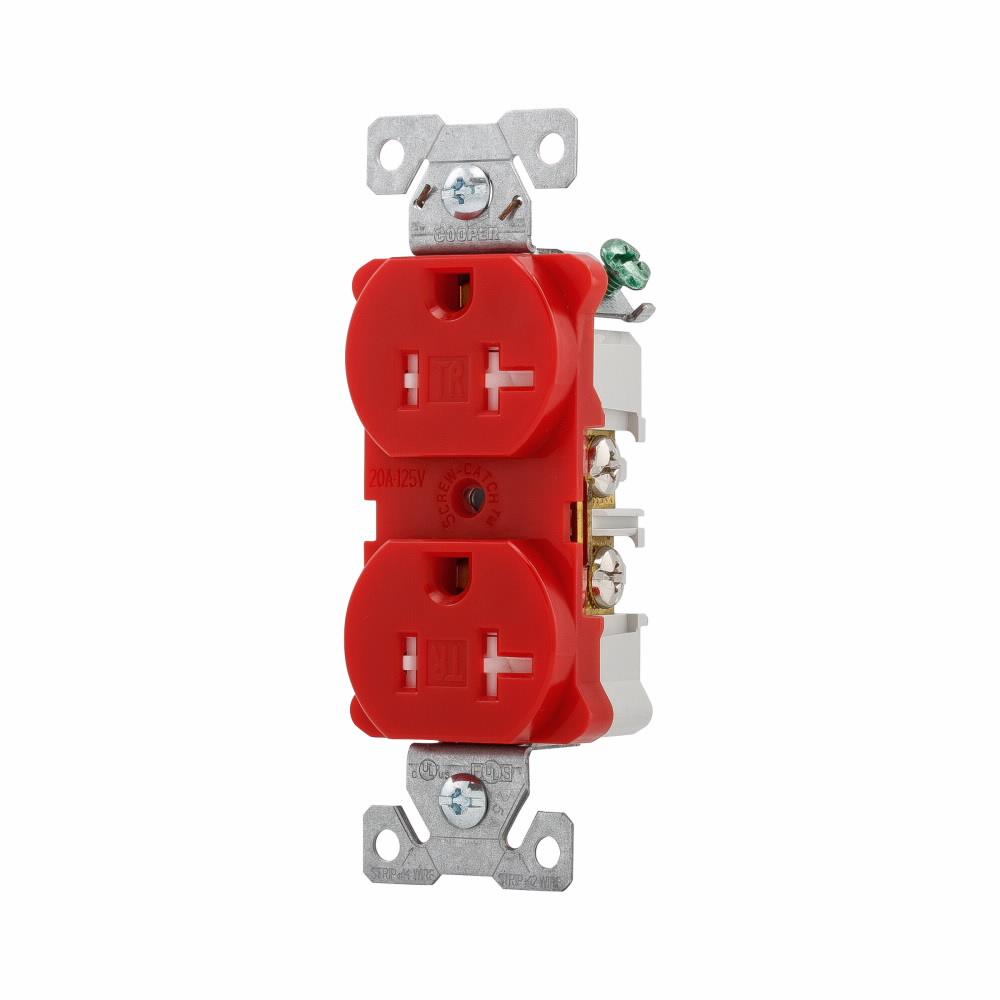

EATON Arrow Hart® TR5362RD TR5362 Duplex Grounding Standard Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWDTR5362RD
- MPN: TR5362RD
- UPC:032664718601
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Construction specification grade straight blade receptacles - tamper resistant 20 A, 125 VAC, NEMA 5-20R. Provides compliance with 2011 NEC article 406.12 that states that all receptacles installed dwelling units must be tamper resistant. "TR" designation provides visual identification.
EATON Arrow Hart® Straight Blade Receptacle, Duplex Grounding Standard Tamper-Resistant, Series: TR5362, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Construction Grade, -4 to 140 deg F, Screw Terminal, Nylon, Red, 4.19 in H x 1.3 in W x 0.84 in D Dimensions
| Amperage Rating | : | 20 A |
| Color | : | Red |
| Dimensions | : | 4.19 in H x 1.3 in W x 0.84 in D |
| Grade | : | Construction |
| Material | : | Nylon |
| NEMA Rating | : | NEMA 5-20R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Series | : | TR5362 |
| Temperature Rating | : | -4 to 140 deg F |
| Terminal Type | : | Screw |
| Type | : | Duplex Grounding Standard Tamper-Resistant |
| Voltage Rating | : | 125 VAC |
- High impact and chemical-resistant nylon face maintains receptacle integrity
- Convenient built-in 10 and 12 AWG wire strippers
- All terminal and mounting screws triple combination (slot/Phillips/Robertson) head for maximum installer flexibility
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosures
- Extra long/wide mounting strap maintains assembly security and helps reach oversize cutouts
