9501AW EATON
EATON 9501AW CWD9501AW
Send Print
  1. pin-int

CWD9501AW

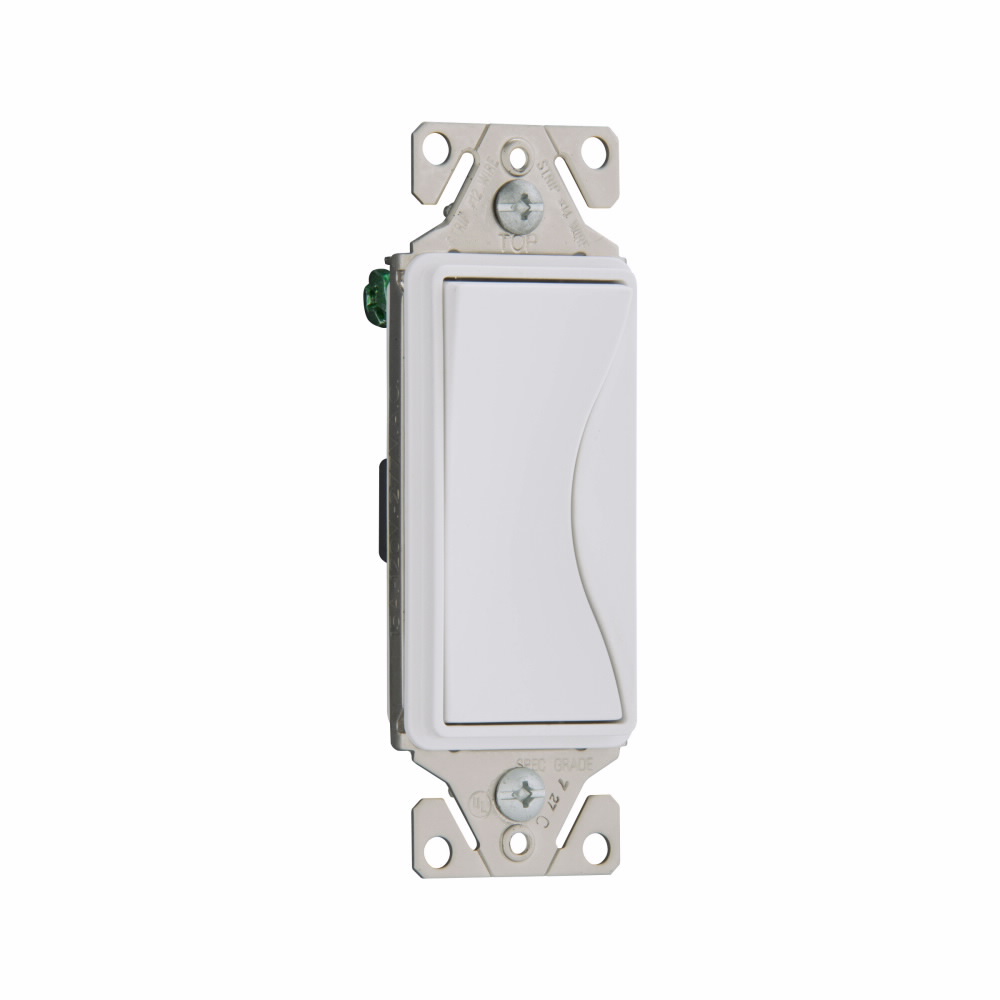

EATON ASPIRE™ 9501AW Rocker Switch, 15 A at 120/277 VAC, 1 Poles

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD9501AW
  • MPN: 9501AW
  • UPC:032664707520
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON ASPIRE™ Rocker Switch, 15 A at 120/277 VAC Electrical Rating, 1 Pole, Screw Connection, Push-In/Side Wire Terminal, Polycarbonate, Alpine White, 1.44 in L x 0.97 in W x 3.81 in H Dimensions

Color      :      Alpine White
Connection      :      Screw
Dimensions      :      1.44 in L x 0.97 in W x 3.81 in H
Electrical Ratings      :      15 A at 120/277 VAC
Material      :      Polycarbonate
Number of Poles      :      1
Terminal Type      :      Push-In/Side Wire
  • Virtually unbreakable, ultrasonically welded top and back body
  • Long, broad mounting strap virtually eliminates floating installations
  • Tri-combo screws accept slotted, Phillips® and Robertson head tools for installation flexibility
  • Push-in terminals accept 14 AWG solid wire for quick installation
  • Backwire clamps (4-way models only) on the side terminals provide for easy installation of 12 and 14 AWG wire
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0edcfc692aa29fe61f2ae4997d4a6653f81e0ce0af7da4e3ae3a74aae9d1dd82.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5ae466563fdf01b8e3c0b5438539d5ee9578d776d784489e94e3c3fb59860349.pdf
