CWDCS220BK

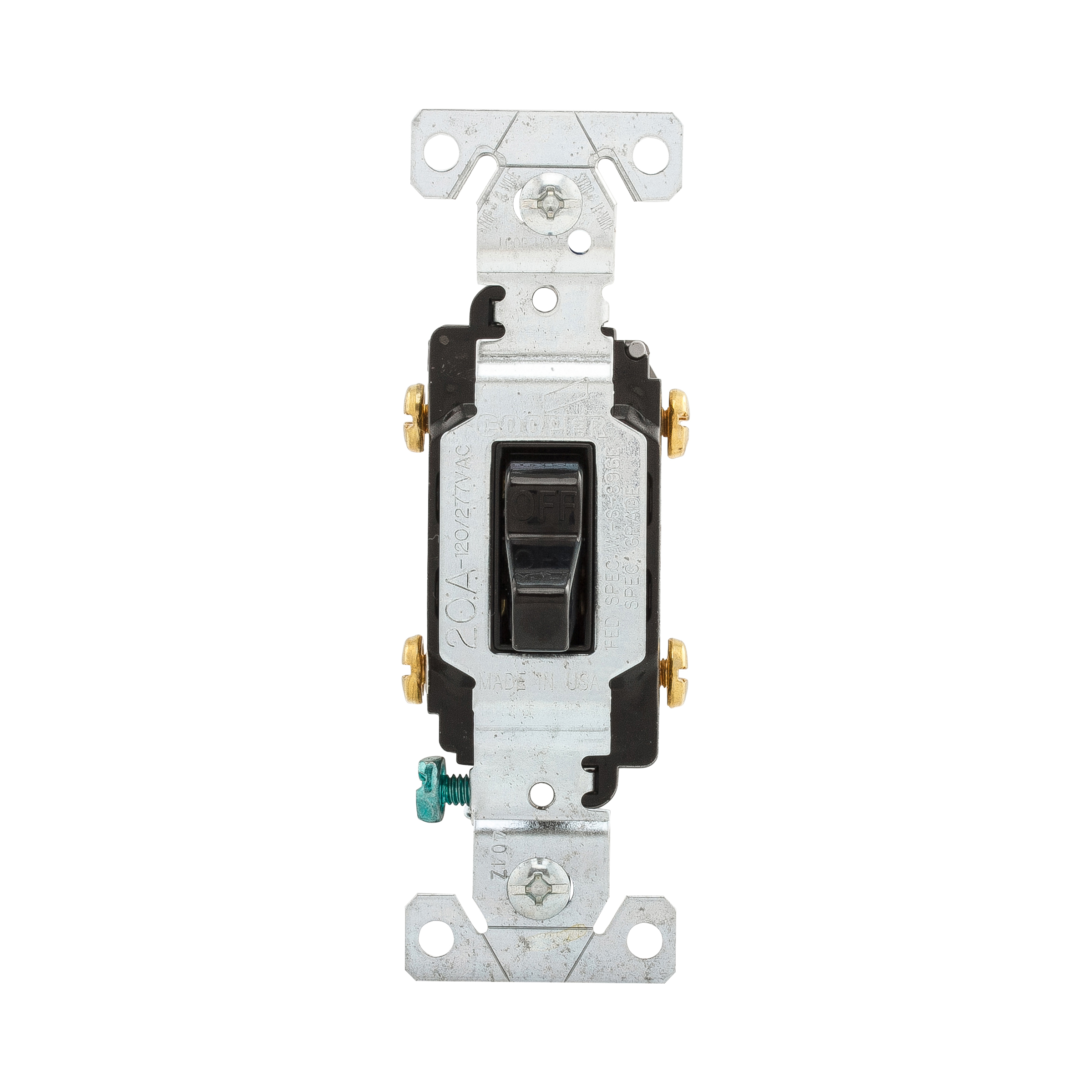

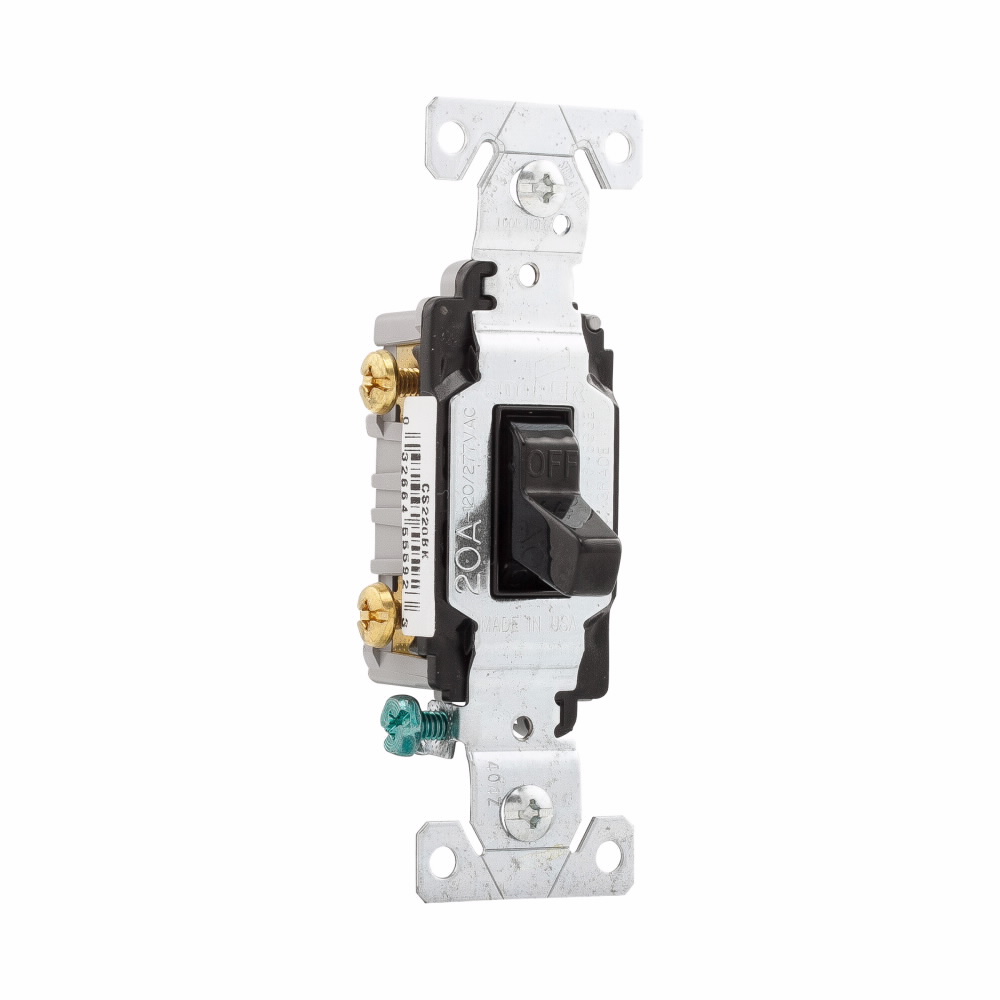

EATON Wiring Devices Arrow Hart® CS220BK CS Series Specification Grade Toggle Switch, 120/277 V, 20 A, 1 hp Power Rating
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWDCS220BK
- MPN: CS220BK
- UPC:032664555923
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Commercial grade - AC quiet switches - side wire. Heavy duty cam action mechanism insures quiet switch action. Side wire terminals accept up to 10 AWG solid or stranded wire. Ground screw terminal standard. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications.
EATON Wiring Devices Arrow Hart® Toggle Switch, Specification Grade, Series: CS Series, 120/277 V, 20 A, 1 hp Power, 2 Pole, Compact Toggle Actuator, Flush Mounting, Side Wire/Screw Terminal, PVC, Black, Environmental Conditions: 4 to 140 deg F Operating Temperature, 1.3 in L x 0.902 in W Dimensions
| Actuator | : | Compact Toggle |
| Amperage Rating | : | 20 A |
| Color | : | Black |
| Dimensions | : | 1.3 in L x 0.902 in W |
| Environmental Conditions | : | 4 to 140 deg F Operating Temperature |
| Material | : | PVC |
| Mounting | : | Flush |
| Number of Poles | : | 2 |
| Power Rating | : | 1 hp |
| Series | : | CS Series |
| Terminal Type | : | Side Wire/Screw |
| Type | : | Specification Grade |
| Voltage Rating | : | 120/277 V |
- Spring cup toggle design for robust actuation
- Terminals accept up to 10 AWG stranded/solid
- 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
- Terminal screws are backed out and ready to wire
- Tri-combo head mounting and terminal screws
- Motor control load
- 14 to 10 AWG terminal accommodation
