AHDS30VFD EATON
EATON AHDS30VFD CWDAHDS30VFD
Send Print
  1. pin-int

CWDAHDS30VFD

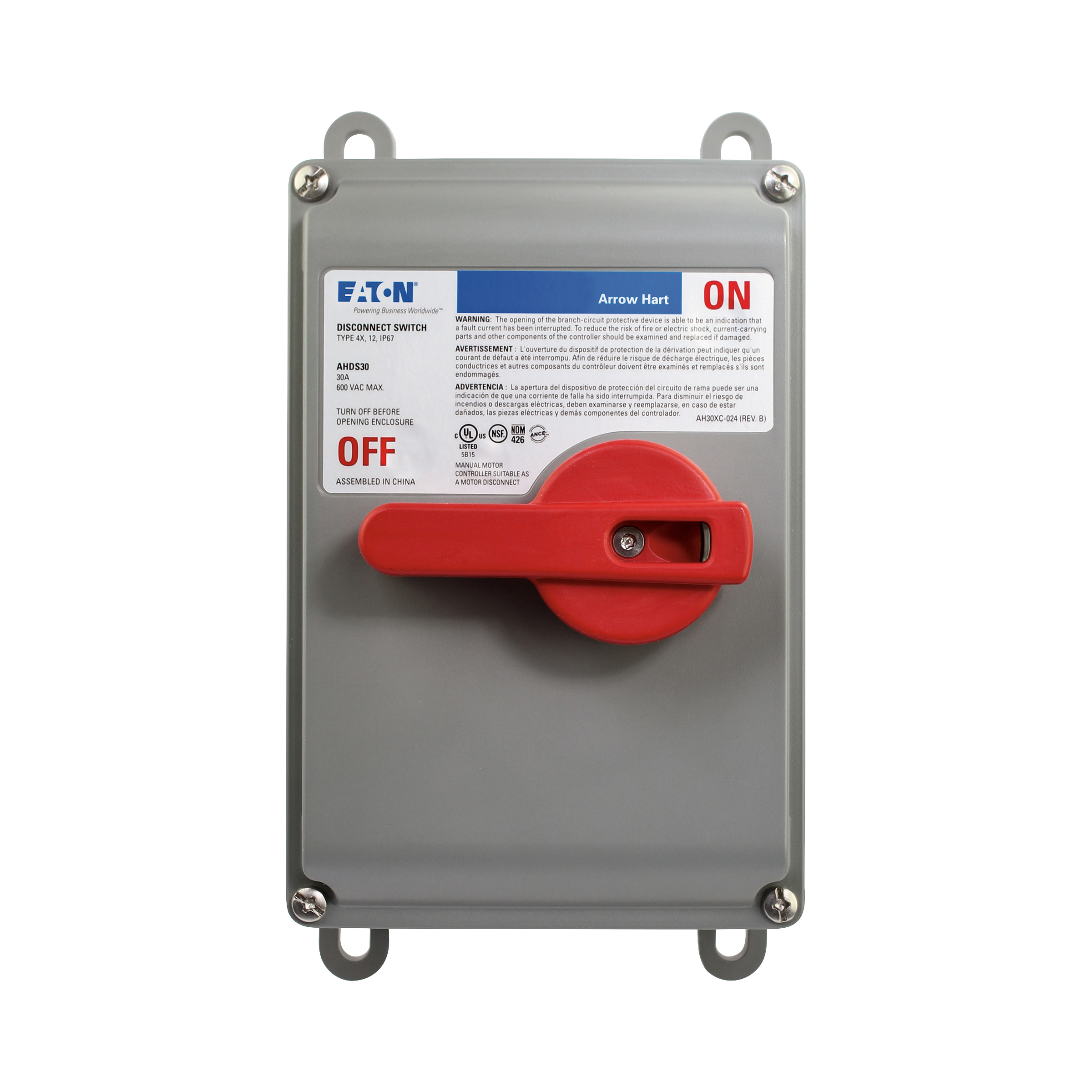

EATON Arrow Hart® AHDS30VFD Non-Fusible Manual Motor Control Disconnect Switch, 600 VAC, 30 A, 10 hp, 3 Poles

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDAHDS30VFD
  • MPN: AHDS30VFD
  • UPC:032664741340
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Arrow Hart® Manual Motor Control Disconnect Switch, Non-Fusible, 600 VAC, 30 A, 10 hp, 3 Phase, 3 Poles, NEMA 4/4X/12/IP67, Flush Mount, -58 to 140 deg F, 8.75 in L x 5.68 in W x 5 in H, Thermoplastic

Amperage Rating      :      30 A
Dimensions      :      8.75 in L x 5.68 in W x 5 in H
Enclosure Type      :      NEMA 4X
Horsepower      :      10 hp
Material      :      Thermoplastic
Mounting Type      :      Flush
Number of Poles      :      3
Phase      :      3
Temperature Rating      :      -58 to 140 deg F
Type      :      3-Pole Industrial
Voltage Rating      :      600 VAC
  • Thermoplastic enclosure made from VALOX™ resin provides high impact strength and excellent corrosion resistance
  • Adjustable mounting feet for flexible positioning options
  • High visibility red handle can be padlocked to meet OSHA lockout/tagout requirements
  • Mounting feet have 2 options - flush mount or 1/4 in offset (for easy washdown behind the enclosure)
  • Auxiliary contacts are available for PLC or VFD applications
  • 14 to 10 AWG wire
  • Auxiliary contacts for variable frequency drive
