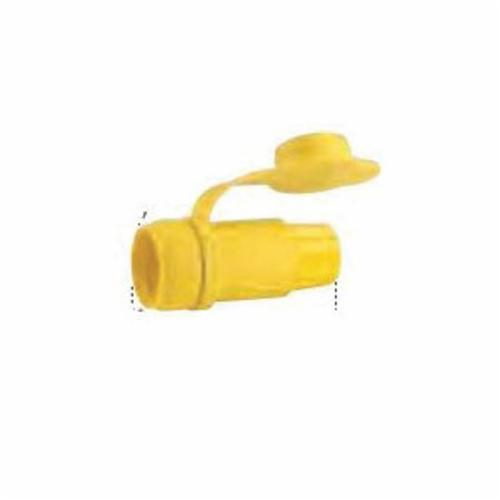

EATON Arrow Hart™ Hart-Lock® 25W49 Grounding Watertight Locking Connector, 250 VAC, 15 A, 2 Poles, 3 Wires, Yellow

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD25W49
  • MPN: 25W49
  • UPC:040893631042
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Hart-Lock® industrial specification grade locking devices watertight plug and connector 15 A, 250 VAC NEMA L6-15 2-pole 3-wire. Superior design and performance make arrow Hart™ Hart-Lock® devices the ideal choice for industrial applications. Available in a wide range of NEMA and Non-NEMA configurations.

EATON Arrow Hart™ Hart-Lock® Locking Connector, Grounding Watertight, 250 VAC, 15 A, 2 Pole, 3 Wires, NEMA L6-15 NEMA Rating, Industrial Grade, IP67 Enclosure, 0.3 to 0.65 in Diameter Cord, -40 to 167 deg F, Back/Side Wire Terminal, Santoprene™ TPE, Yellow, 1.62 in Dia x 4 in L Dimensions

Amperage Rating      :      15 A
Color      :      Yellow
Cord Diameter      :      0.3 to 0.65 in
Dimensions      :      1.62 in Dia x 4 in L
Enclosure      :      IP67
Grade      :      Industrial
Material      :      Santoprene™ TPE
NEMA Rating      :      NEMA L6-15
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -40 to 167 deg F
Terminal Type      :      Back/Side Wire
Type      :      Grounding Watertight
Voltage Rating      :      250 VAC
  • Nickel plated contacts, blades and terminal screws provide corrosion-resistance
  • Quick-drive Tri-combo stainless steel assembly screws provide corrosion-resistance and fast assembly
  • Tapered individual wire pockets guide wire into contact area for ease of installation
  • Innovative sealing system provides multipoint watertight seal
  • Thermoplastic elastomeric exterior outperforms rubber when exposed to moisture, chemicals, oils and the effects of UV exposure and ozone attack
  • High visibility safety yellow for identification
  • Power contacts, blades and terminal screws nickel plated for corrosion-resistance
  • Quick-drive stainless steel assembly screws for corrosion-resistance and fast installation
  • 18 to 10 AWG wire
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_92a4401843c09153a1df322a57fe4906341642339e4767994140cd5096dc8959.pdf
