TRAFCI15BK EATON
EATON TRAFCI15BK CWDTRAFCI15BK
Send Print
  1. pin-int

CWDTRAFCI15BK

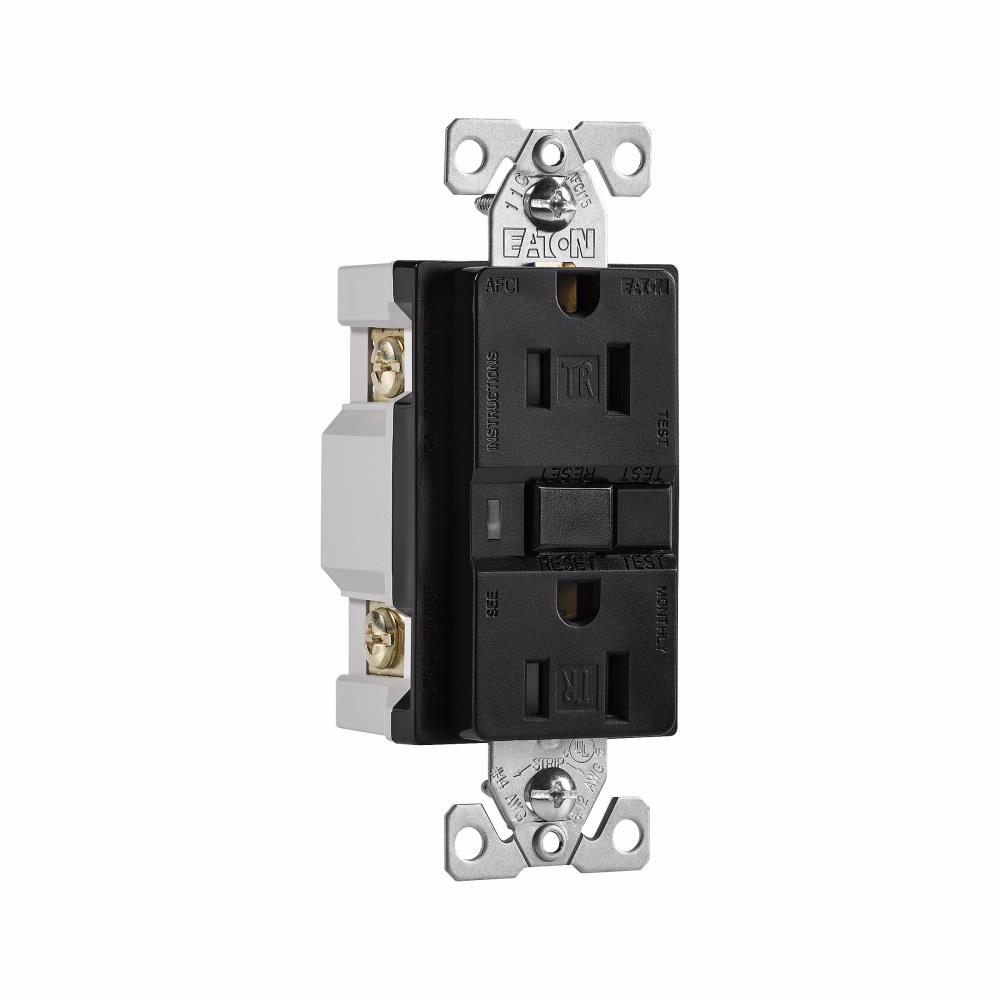

EATON Aspire® TRAFCI15BK Duplex AFCI Lockout Receptacle, 125 V, 15 A, 2 Poles, 3 Wires, Black

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDTRAFCI15BK
  • MPN: TRAFCI15BK
  • UPC:032664739422
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's Arc Fault Circuit Interrupter (AFCI) receptacles are designed to recognize a dangerous arc in your wiring and immediately break the flow of electricity, thus preventing your electrical system from becoming an ignition source for a fire. The life-saving technology and superior design of AFCI protection, now standard in new construction has been refined over the years to also reduce unwanted nuisance tripping due to interference from electrical devices or appliances. When combined with Eaton's GFCI technology, Eaton's arc fault receptacles provide fire and electrical safety in one device, and are also available in breakers.

EATON Aspire® AFCI Lockout Receptacle, Duplex, 125 V, 15 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R/5-20R NEMA Rating, -31 to 150.8 deg F, Line Terminal, PVC, Black, 4.2 in H x 3.3 in W Dimensions

Amperage Rating      :      15 A
Color      :      Black
Dimensions      :      4.2 in H x 3.3 in W
Frequency Rating      :      60 Hz
Material      :      PVC
NEMA Rating      :      NEMA 5-15R/5-20R
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -31 to 150.8 deg F
Terminal Type      :      Line
Type      :      Duplex
Voltage Rating      :      125 V
  • Protects against arc faults in wiring resulting from damaged insulation and other causes that can lead to electrical fires
  • Outlet branch circuit (OBC) AFCI receptacles protect from series and parallel arcs downstream
  • Outlet branch circuit (OBC) AFCI receptacles also provide protection from upstream series arcs (no AFCI receptacle from any manufacturer can protect from upstream parallel arcs)
  • Tamper resistant products comply with 2014 NEC Article 406.12 for all dwelling units
  • Ground termination with back wire clamp provides secure wiring and reduces installation time
  • Line side terminals are backed out and staked for fast installation
  • When downstream receptacles are wired from load side, a 20 A feed through rating offers full protection
  • Tri combo head terminal and mounting screws
  • 98% non-condensing relative humidity
  • Steel strap, brass line and brass ground contact
  • Grounding connection
