9544AW EATON
EATON 9544AW CWD9544AW
Send Print
  1. pin-int

CWD9544AW

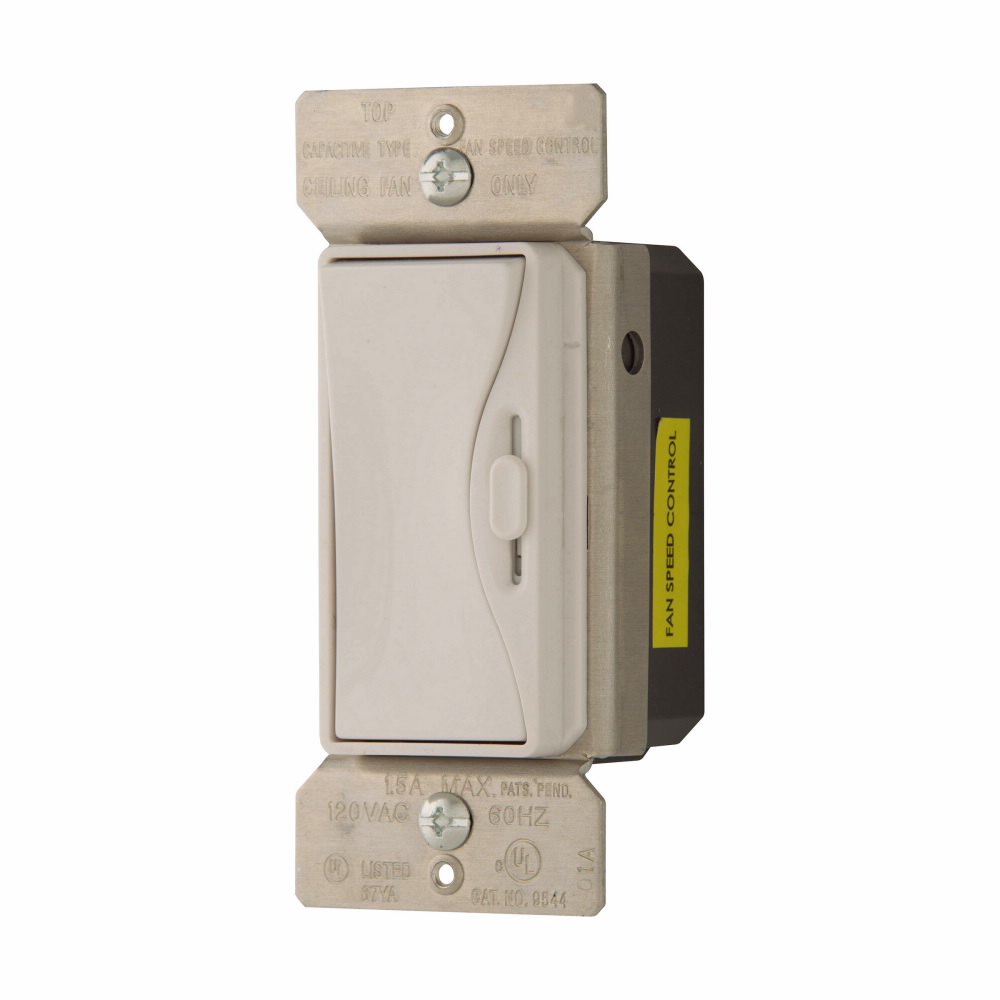

EATON Aspire® 9544AW Dimmer Switch, 120 V, 1.5 A, 1 Poles, 3-Way/Maintained Operation, Alpine White

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD9544AW
  • MPN: 9544AW
  • UPC:032664707537
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's fan controls vary the speed of air flow and employ special circuitry to quiet the fan's motor at low speeds. Install the device in place of a standard switch to add convenient fan control with quiet, smooth actuation. Tri-combo and ground screws help allow easy accesibility and installation. The top and back body are virtually unbreakable, and the device features electrostatic discharge protection, radio frequency interface filtering, and power failure memory. Eaton fan controls are available with color change kits and are compatible with traditional-style or screwless wallplates.

EATON Aspire® Dimmer Switch, 120 V, 1.5 A, 60 Hz Frequency, 1 Pole, Operation Mode: 3-Way/Maintained, Flush Mounting, Lead Wire Terminal, 32 to 104 deg C, Polycarbonate, Alpine White, 3 in L x 2.13 in W x 4.5 in H Dimensions

Amperage Rating      :      1.5 A
Color      :      Alpine White
Dimensions      :      3 in L x 2.13 in W x 4.5 in H
Frequency Rating      :      60 Hz
Material      :      Polycarbonate
Mounting Type      :      Flush
Number of Poles      :      1
Operation Mode      :      3-Way/Maintained
Temperature Rating      :      32 to 104 deg C
Terminal Type      :      Lead Wire
Voltage Rating      :      120 V
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0a500c066ebacf2bd890d8ff80955188a7160ecbd7d4cd695dfd1606e59fcf31.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f266ca04fa40c629935545e811de4cecf1aaa31ccb8df447eb4d2471bdd315a.pdf
