9515WS EATON
EATON 9515WS CWD9515WS
Send Print
  1. pin-int

CWD9515WS

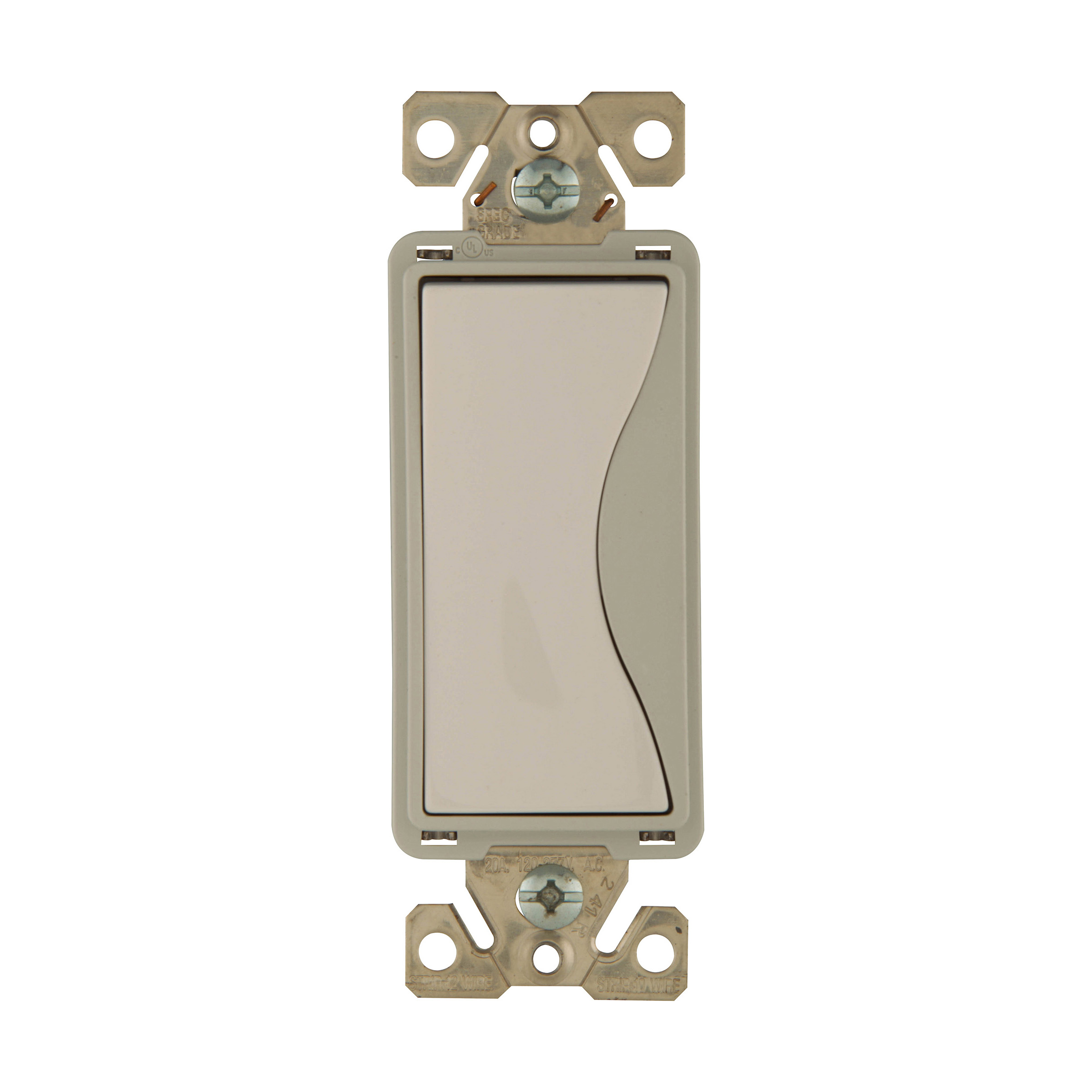

EATON Aspire® 9515WS Rocker Switch, 1 Poles

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD9515WS
  • MPN: 9515WS
  • UPC:032664651625
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Aspire® Rocker Switch, 1 Pole, Screw Connection, Push-In/Side Wire Terminal, Polycarbonate, White Satin, 1.44 in L x 0.97 in W x 3.81 in H Dimensions

Color      :      White Satin
Connection      :      Screw
Dimensions      :      1.44 in L x 0.97 in W x 3.81 in H
Material      :      Polycarbonate
Number of Poles      :      1
Terminal Type      :      Push-In/Side Wire
  • Virtually unbreakable, ultrasonically welded top and back body
  • Long, broad mounting strap virtually eliminates floating installations
  • Tri combo screws accept slotted, Phillips® and Robertson head tools for installation flexibility
  • Push-in terminals accept 14 AWG solid wire
  • Backwire clamps (4-way models only) on the side terminals provide for easy installation of 12 and 14 AWG wire
