5223-7V-BU EATON
EATON 5223-7V-BU CWD52237VBU
Send Print
  1. pin-int

CWD52237VBU

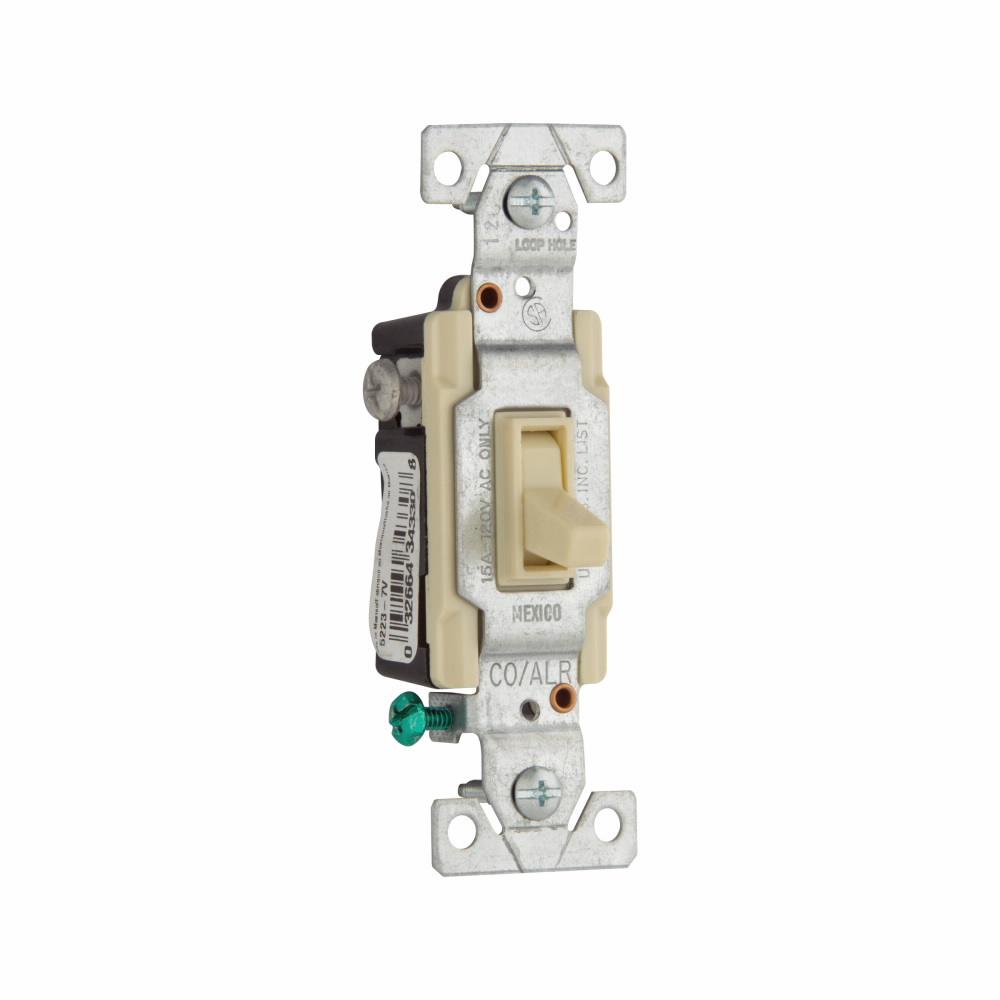

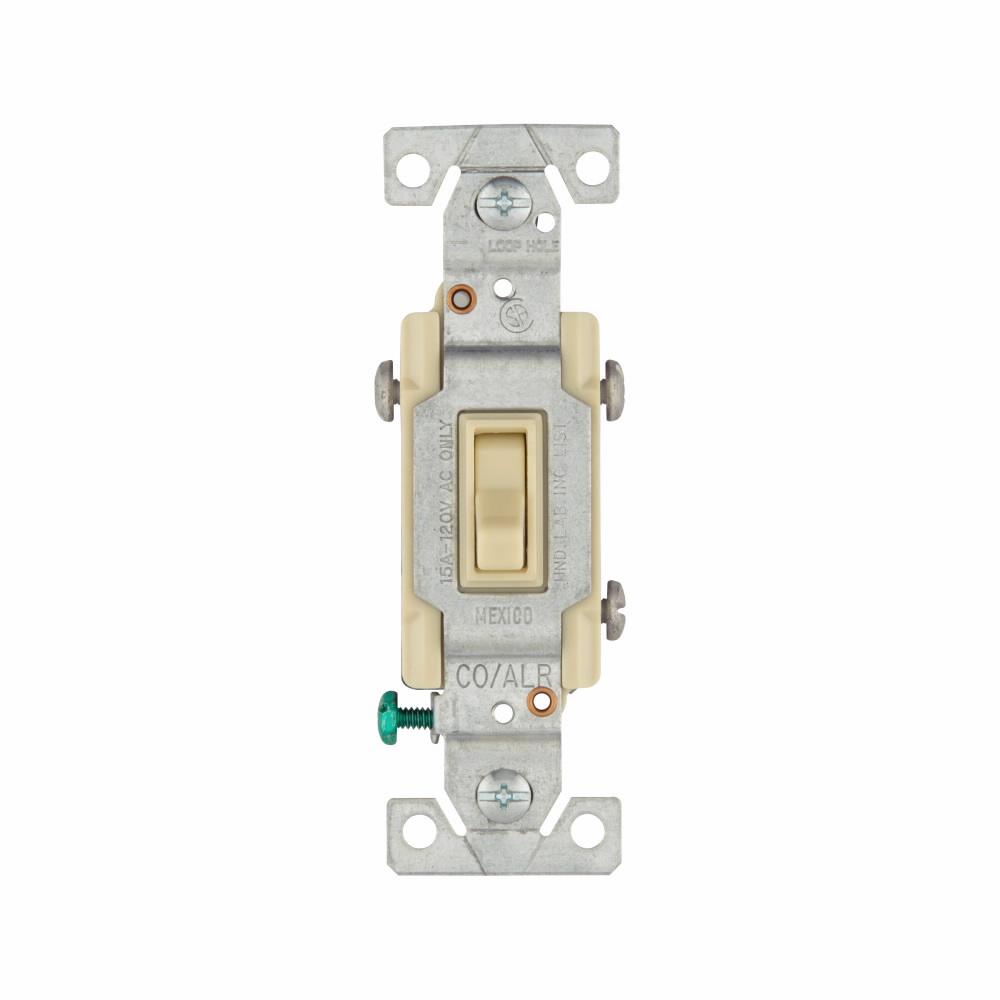

EATON Arrow Hart® 5223-7V-BU 5223-7 3-Way Grounding Standard Grade Toggle Switch, 120 VAC, 15 A, 1 hp Power Rating

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD52237VBU
  • MPN: 5223-7V-BU
  • UPC:032664752179
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Arrow Hart® Toggle Switch, 3-Way Grounding Standard Grade, Series: 5223-7, 120 VAC, 15 A, 1 hp Power, 1 Pole, Toggle Actuator, Wall Mounting, Side Wire/Screw Terminal, Ivory, Environmental Conditions: -40 to 65 deg C Operating Temperature, 1.31 in L x 0.88 in W x 3.28 in H Dimensions

Actuator      :      Toggle
Amperage Rating      :      15 A
Color      :      Ivory
Dimensions      :      1.31 in L x 0.88 in W x 3.28 in H
Environmental Conditions      :      -40 to 65 deg C Operating Temperature
Mounting      :      Wall
Number of Poles      :      1
Power Rating      :      1 hp
Series      :      5223-7
Terminal Type      :      Side Wire/Screw
Type      :      3-Way Grounding Standard Grade
Voltage Rating      :      120 VAC
  • For direct connection to aluminum or copper wire
  • Industrial design cam action mechanism ensures quiet switch action
  • Side wire terminals accept up to 10 AWG solid copper wire and up to 10 AWG solid aluminum wire
  • Long, broad mounting strap virtually eliminates floating installations
  • Patented built-in wire stripper for 12 and 14 AWG wire to speed installation
  • Terminal screws are backed out and ready to wiring
  • Combination slot/Phillips head mounting and terminal screws ease installation
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_667680856a9f166d92e780a8af1ce1a8619a5a1d275480c36b20025f4da72915.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_634dc481e9eeca63ba96c45da134a63dbd5f7c3c1c86ed7aac2943e0fa43bb1f.pdf
