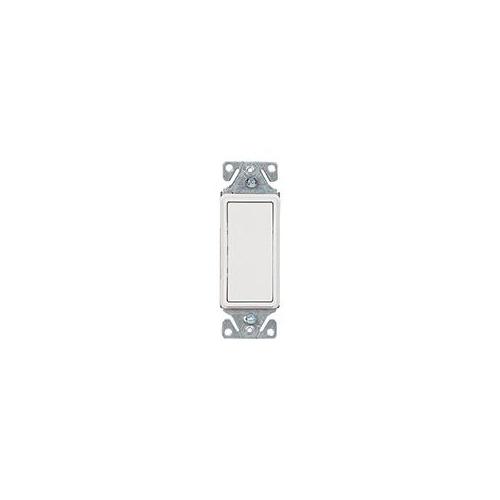

EATON 7501W-10-L Standard Grade Decorator Switch, 120 VAC, 15 A

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD7501W10L
  • MPN: 7501W-10-L
  • UPC:032664749797
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Decorator Switch, Standard Grade, 120 VAC, 15 A, 1 Pole, Paddle Actuator, Surface Mounting, Push-In/Side Wire Terminal, Thermoplastic, White

Actuator      :      Paddle
Amperage Rating      :      15 A
Color      :      White
Material      :      Thermoplastic
Mounting      :      Surface
Number of Poles      :      1
Terminal Type      :      Push-In/Side Wire
Type      :      Standard Grade
Voltage Rating      :      120 VAC
  • Decorator switches feature ultrasonic welding and integrated construction of the strap and body provide superior integrity
  • Back wire clamps on the side terminals provide for easy installation of 14 to 12 AWG wire
  • Redesigned paddle for easier actuation and quiet operation
  • Thermoplastic rocker, top and back body are virtually unbreakable, promising years of durable performance
  • Tri-combo screws accept slotted, Phillips® and Robertson head tools for installation flexibility
  • Long, broad mounting strap virtually eliminates floating installations
  • Patented built-in wire stripper for 14 to 12 AWG wire to speed installation
  • Stippled ground screw terminal standard
