L1530RWBK EATON
EATON L1530RWBK CWDL1530RWBK
Send Print
  1. pin-int

CWDL1530RWBK

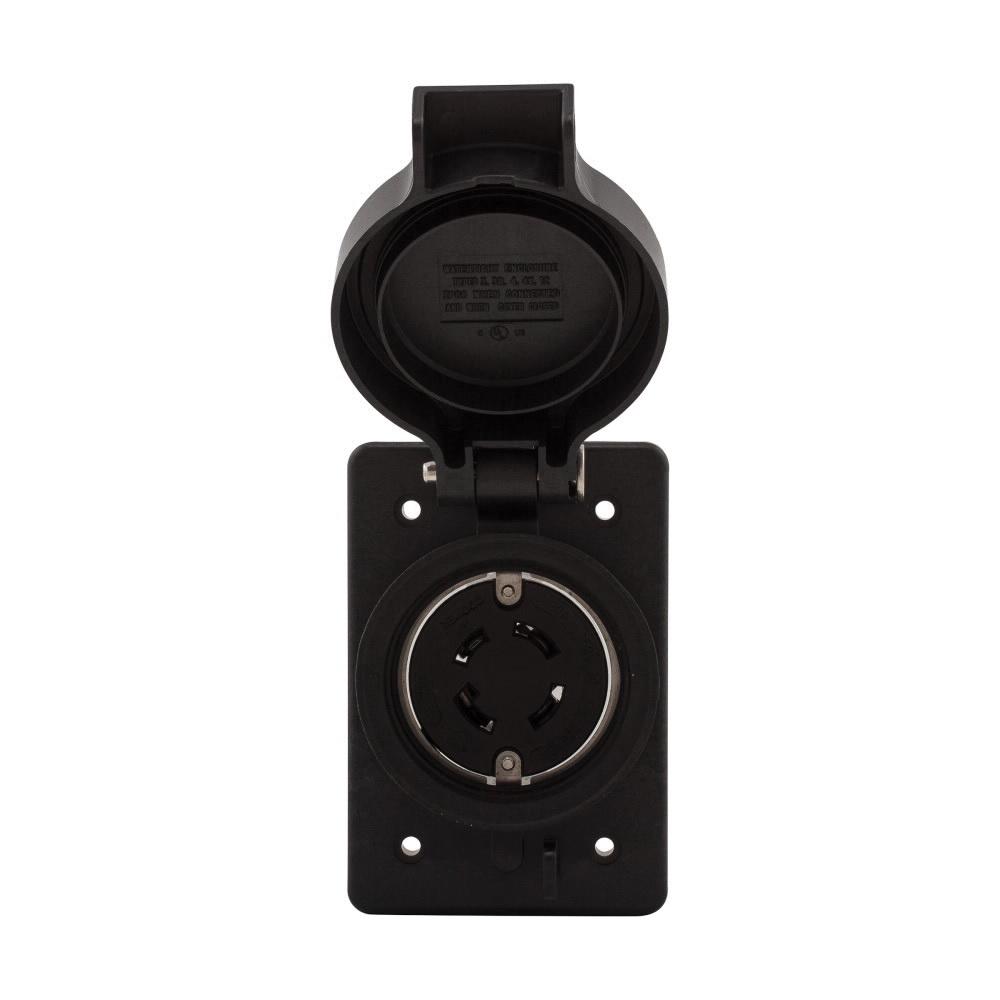

EATON Arrow Hart® Hart-Lock® L1530RWBK 3-Phase Complex Environment Grounding Single Watertight Locking Receptacle, 250 VAC, 30 A, 3 Poles, 4 Wires, Black

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDL1530RWBK
  • MPN: L1530RWBK
  • UPC:032664709029
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Arrow Hart® Hart-Lock® Locking Receptacle, 3-Phase Complex Environment Grounding Single Watertight, 250 VAC, 30 A, 3 Pole, 4 Wires, NEMA L15-30 NEMA Rating, Industrial/Specification Grade, NEMA 3/3R/4/4X/12/IP66 Enclosure, 0.43 to 1.15 in Diameter Cord, -40 to 167 deg F, Screw Terminal, Glass Filled Nylon/Thermoplastic, Black, 6-3/4 in L x 4-1/4 in W x 4 in H Dimensions

Amperage Rating      :      30 A
Color      :      Black
Cord Diameter      :      0.43 to 1.15 in
Dimensions      :      6-3/4 in L x 4-1/4 in W x 4 in H
Enclosure      :      NEMA 3/3R/4/4X/12/IP66
Grade      :      Industrial/Specification
Material      :      Glass Filled Nylon/Thermoplastic
NEMA Rating      :      NEMA L15-30
Number of Poles      :      3
Number of Wires      :      4
Temperature Rating      :      -40 to 167 deg F
Terminal Type      :      Screw
Type      :      3-Phase Complex Environment Grounding Single Watertight
Voltage Rating      :      250 VAC
  • Spring loaded self-closing flip lid cover ensures a watertight seal to NEMA type 4X when the receptacle is not in use
  • Glass filled nylon cover and exterior shell provide impact resistance in harsh environments
  • Stainless steel mounting and assembly screws provide corrosion resistance
  • Lockable cover provides means of lockout/tagout
  • Nickel plated power contacts and terminal assemblies provide corrosion resistance
  • Utilize a unique, robust design and superior materials to provide watertight security in harsh environments
  • Meets NEMA and IEC IP ratings and withstands water spray test at 1000 psi
  • High visibility safety yellow for identification
  • Power contacts, blades and terminal screws nickel plated for corrosion resistance
  • Quick drive stainless steel assembly screws for corrosion resistance and fast installation
  • Color coded neoprene grommets for a watertight seal on a wide range of cord sizes
