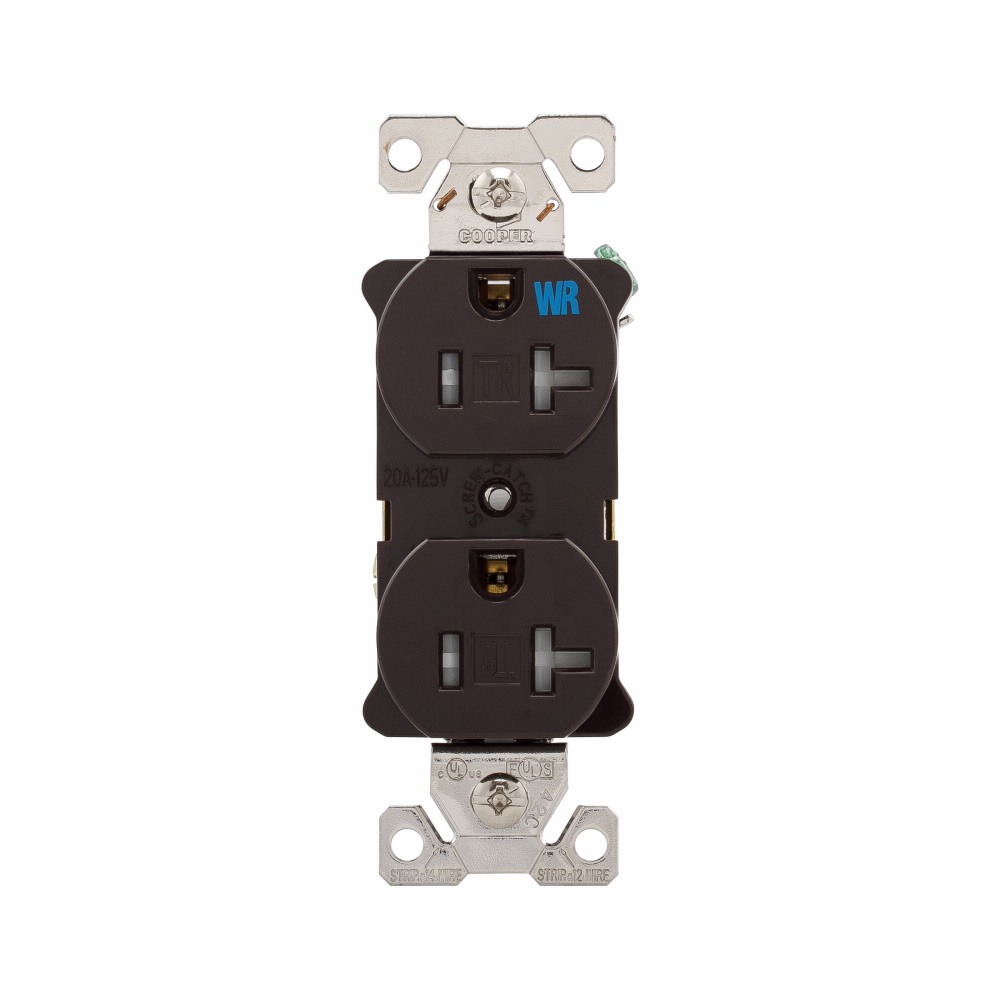

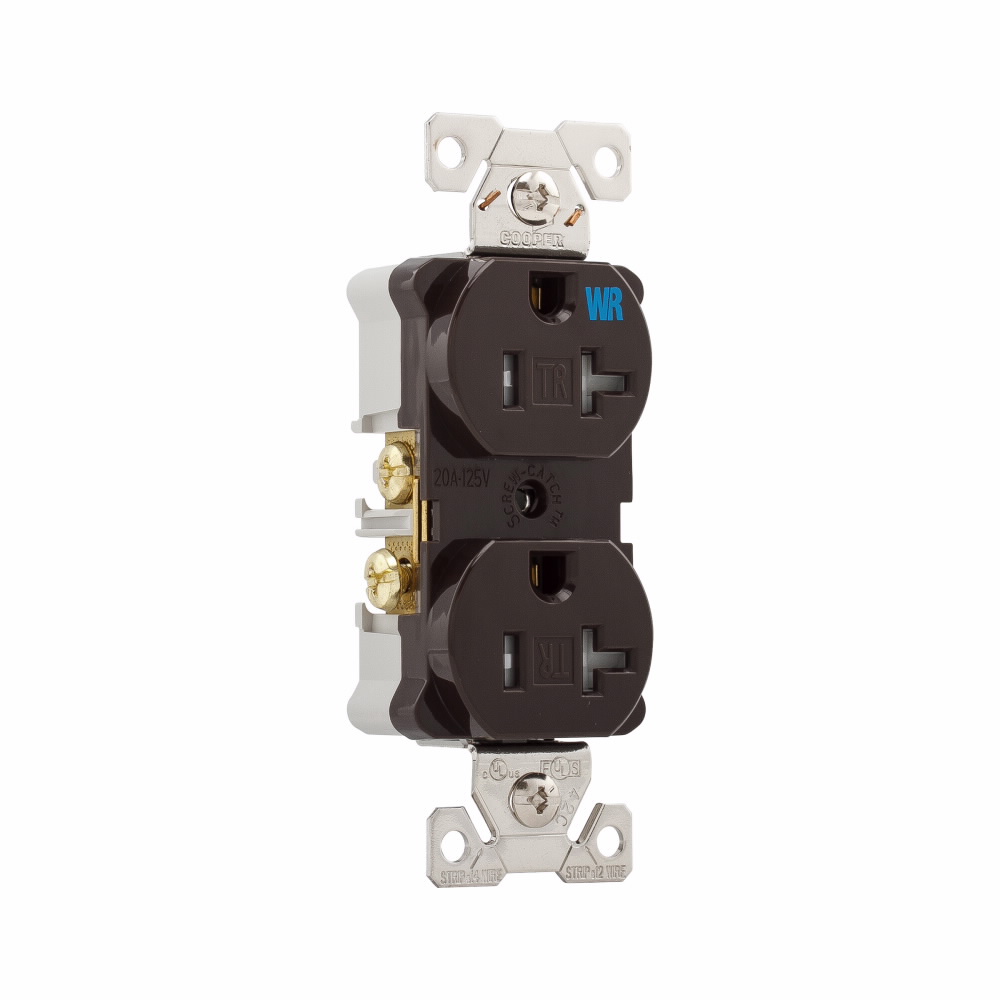

EATON Arrow Hart® TWRBR20B Duplex Straight Blade Receptacle, 125 V, 20 A, 2 Poles, 3 Wires, Brown

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDTWRBR20B
  • MPN: TWRBR20B
  • UPC:032664673504
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's straight blade receptacles cover the full range of residential, hospital, industrial, construction, and commercial grades to meet any application. Choose from decorator or traditional styles, multiple colors, tamper resistant solutions and weather resistant products for exterior installations. Eaton also offers special solutions for complex environments including corrosion-resistant, severe-duty insulated and watertight products.

EATON Arrow Hart® Straight Blade Receptacle, Duplex, 125 V, 20 A, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial Grade, Screw Terminal, Nylon, Brown, 1.3 in L x 1.09 in W x 4.19 in H Dimensions

Amperage Rating      :      20 A
Color      :      Brown
Dimensions      :      1.3 in L x 1.09 in W x 4.19 in H
Grade      :      Commercial
Material      :      Nylon
NEMA Rating      :      5-20R
Number of Poles      :      2
Number of Wires      :      3
Terminal Type      :      Screw
Type      :      Duplex
Voltage Rating      :      125 V
  • Nickel plated brass contact
  • Flush mounting
