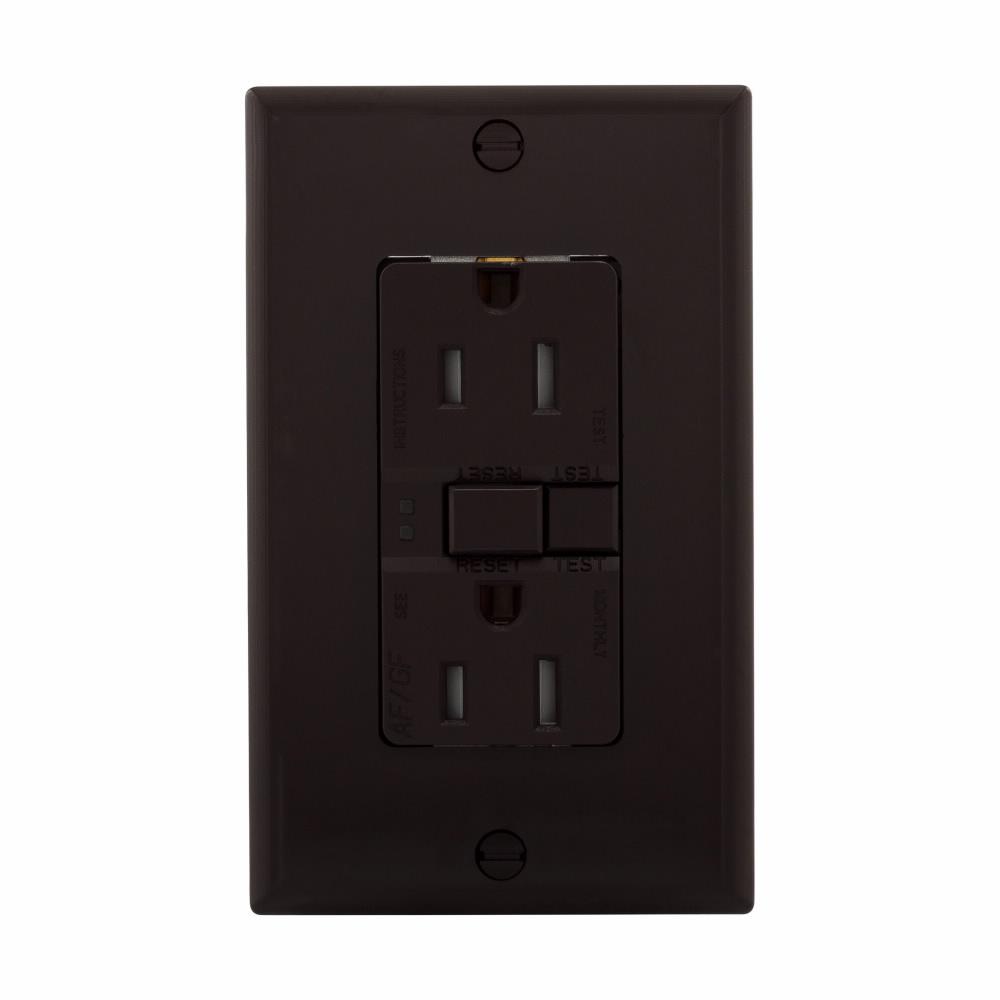

EATON TRAFGF15B TRAFGF15 Duplex Self-Test Tamper Resistant AFCI/GFCI Receptacle With Standard Size Thermoplastic Wallplate, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDTRAFGF15B
  • MPN: TRAFGF15B
  • UPC:032664747557
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Both arc fault protection and ground fault protection are required in kitchens and laundry areas according to the 2017 NEC, with expansion to further areas expected in coming code cycles. Eaton has long been a leader in ground fault and arc fault protection-both from the breaker and from the receptacle. Eaton AF/GF receptacle allows for local reset and provides protection from series arcs, parallel arcs and ground faults using Eaton 15 years of arc fault experience to help reduce the number of unwanted nuisance trips and self-test GFCI technology to ensure the proper operation of the protection circuitry.

EATON AFCI/GFCI Receptacle, Duplex Self-Test Tamper Resistant, Series: TRAFGF15, 125 VAC, 15 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Specification Grade, -31 to 150.8 deg F, Screw Terminal, Thermoplastic/Polypropylene, Brown, 4.2 in H x 1.3 in W x 1.27 in D Dimensions

Amperage Rating      :      15 A
Color      :      Brown
Dimensions      :      4.2 in H x 1.3 in W x 1.27 in D
Frequency Rating      :      60 Hz
Grade      :      Specification
Material      :      Thermoplastic/Polypropylene
NEMA Rating      :      NEMA 5-15R
Number of Poles      :      2
Number of Wires      :      3
Series      :      TRAFGF15
Temperature Rating      :      -31 to 150.8 deg F
Terminal Type      :      Screw
Type      :      Duplex Self-Test Tamper Resistant
Voltage Rating      :      125 VAC
  • Provides both arc fault protection per UL 1699A and ground fault protection per UL 943 in one convenient device
  • Protects from both series and parallel arcs downstream from the outlet Branch circuit (OBC) AF/GF receptacle
  • OBC AF/GF receptacles also protect from upstream series arcs
  • Trip indicators make it easy to diagnose arc and ground faults
  • Device self-tests periodically to ensure proper function of both the ground fault and arc fault protection elements
  • Meets and exceeds 10 kA short circuit testing and UL 943 safety standards
  • Ground termination with back wire clamp provides secure wiring and reduces installation time
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Tapered backwire openings handle multiple wire sizes and types for applications up to 10 AWG solid or stranded wire
  • When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
  • Lockout functionality prevents mis-wired line load connections and GFCI/AFCI circuitry damage
  • Visual indicator light provides quick visual reference of a tripped or "end of life" condition
  • Tamper resistant shutters comply with 2014 NEC article 406.12
  • Terminal screws are backed out and ready to wiring
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a5344c123ffae980846da3570dcfe916089f23c7bf9fc5d45dee1323d78835eb.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_TRAFGF20BK_Instruction_Sheet.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_69f11f9a78a8e73a5121f4986cc4e421d57e4b350388719611421a68c77c730f.pdf
