IG8210RN EATON
EATON IG8210RN CWDIG8210RN
Send Print
  1. pin-int

CWDIG8210RN

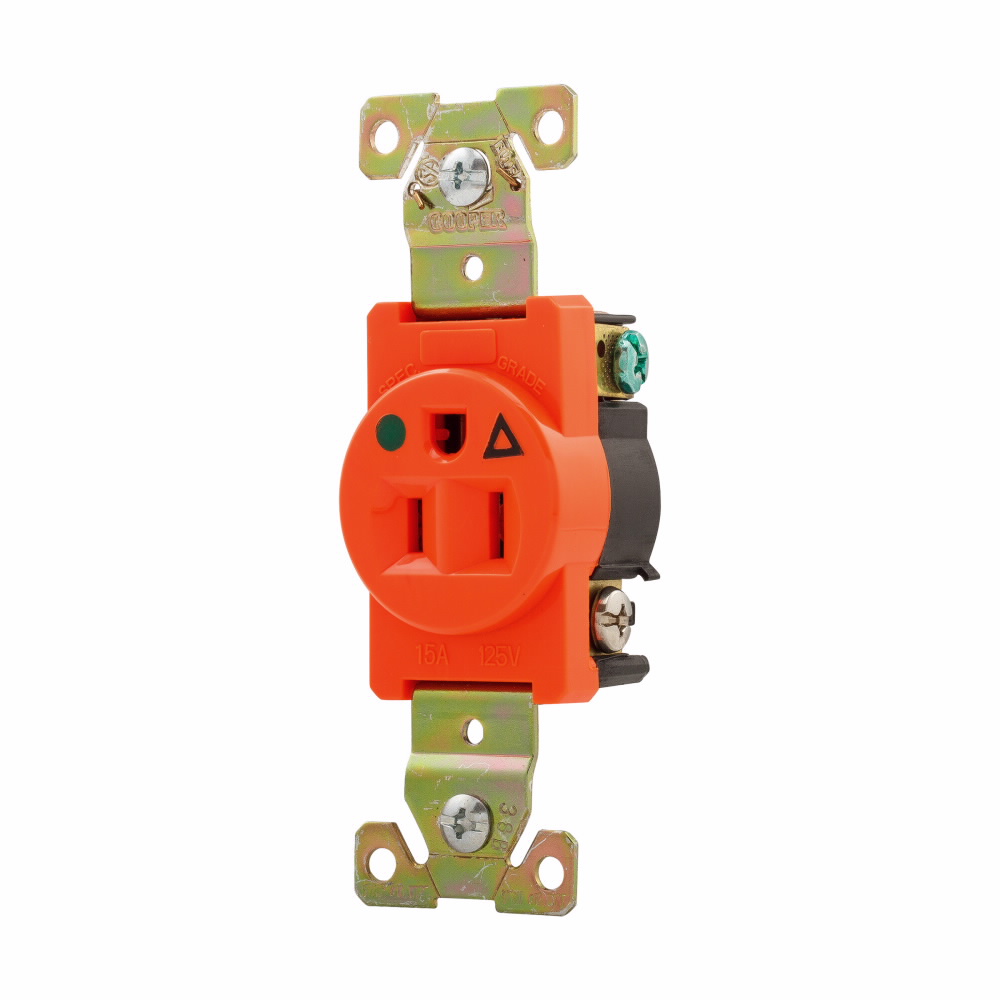

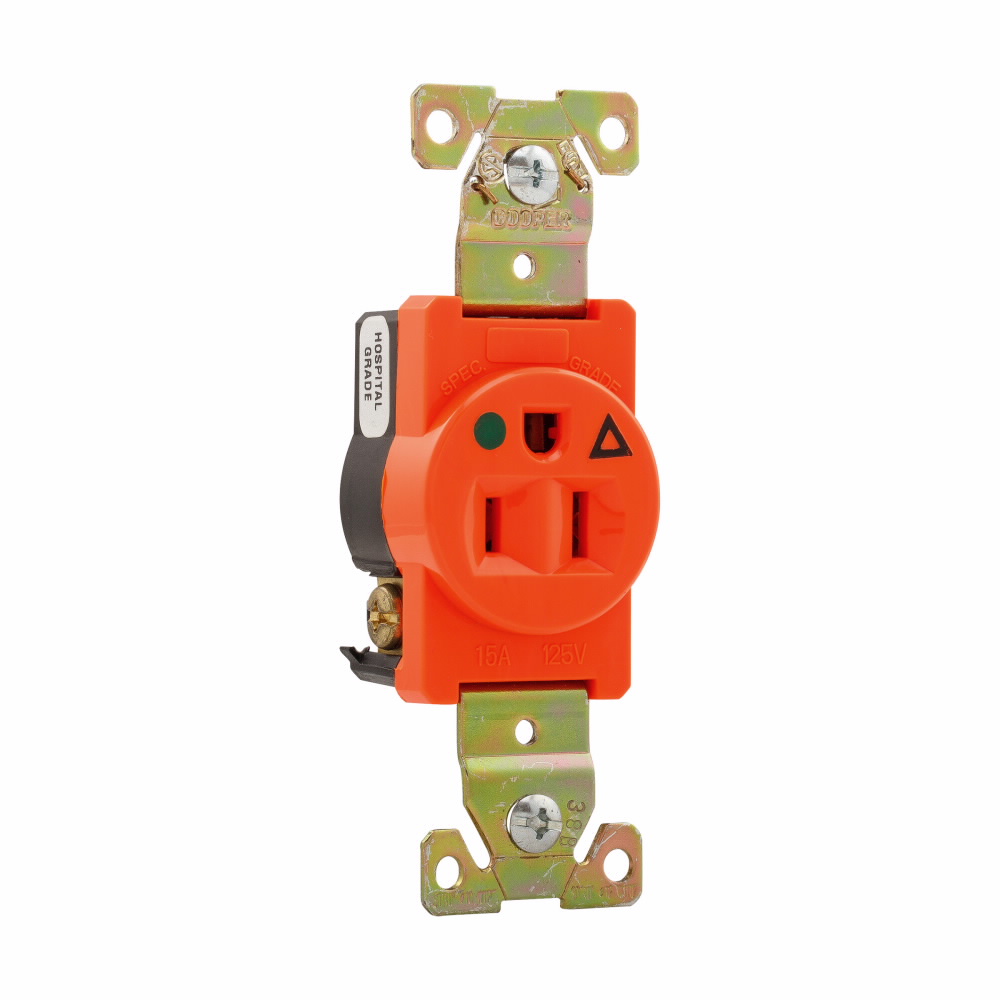

EATON IG8210RN IG8210 Isolated Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Orange

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDIG8210RN
  • MPN: IG8210RN
  • UPC:032664379505
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's straight blade receptacles cover the full range of residential, hospital, industrial, construction, and commercial grades to meet any application. Choose from decorator or traditional styles, multiple colors, tamper resistant solutions and weather resistant products for exterior installations. Eaton also offers special solutions for complex environments including corrosion-resistant, severe-duty insulated and watertight products.

EATON Straight Blade Receptacle, Isolated Grounding, Series: IG8210, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, Back/Side Wire Terminal, Nylon, Orange, 1.3 in L x 0.88 in W x 4.19 in H Dimensions

Amperage Rating      :      15 A
Color      :      Orange
Dimensions      :      1.3 in L x 0.88 in W x 4.19 in H
Grade      :      Industrial
Material      :      Nylon
NEMA Rating      :      NEMA 5-15R
Number of Poles      :      2
Number of Wires      :      3
Series      :      IG8210
Terminal Type      :      Back/Side Wire
Type      :      Isolated Grounding
Voltage Rating      :      125 VAC
  • Flush mount
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_88364d532dbd325ea45d58af577eea884cb525d94659e2749e66f860342a8882.pdf
