Longer, wider strap on Toggle Switches provides 40% more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Patented built-in wire stripper for 14 and 12 AWG wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to job site breakage. Patented built-in wire looper for pre-looping. 3-way switches feature additional push-in common termination for feed through tapping. Push-in terminals accept 14 AWG solid wire only. Side wire terminals accept up to 10 AWG solid or stranded wire. Tri-combo screws accept slotted, Phillips® and Robertson head tools for installations in both the US and Canada.

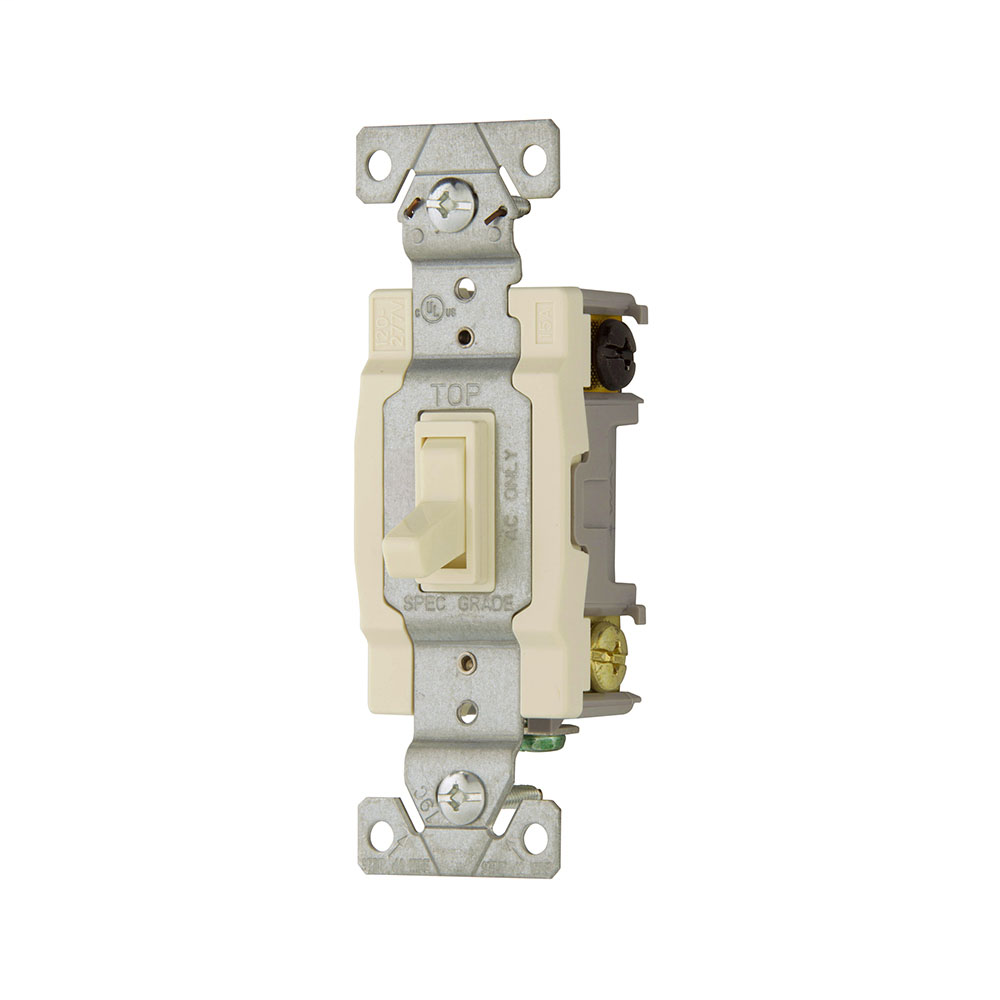

EATON Arrow Hart® Toggle Switch, 4-Way Grounding Standard/Specification Grade, Series: 1242-7, 120 VAC, 15 A, 1/2 hp Power, Framed Toggle Actuator, Residential Mounting, Side Wire/Push-In/Screw Terminal, 30000 Cycles Operating Cycles, Polycarbonate/Thermoplastic/PVC, Almond, Environmental Conditions: -20 to 60 deg C Operating Temperature, 1.31 in W x 1.05 in D Dimensions

• 3-way switches feature additional push-in common termination for feed through tapping
• Push-in terminals accept 14 AWG solid wire only
• Side wire terminals accept up to 10 AWG solid wire
• Long, broad mounting strap virtually eliminates floating installations
• Patented built-in wire stripper for 14 and 12 AWG wire to speed installation
• Patented built-in wire looper for pre-looping
• Tri-combo screws accept slotted, Phillips® and Robertson head tools for installation flexibility
• Lighted toggle glows in OFF position
• 3.28 in L screw to screw
• 2.4 in L back

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6f2c7b5e3406c0f92947e75c3418ceda6c323131100ee469cc3750a3eef1183e.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_29d29b2b08768a13cdf07c7c728bf40918b8e88be713a0bfd8267071f09e4401.pdf
