5361B EATON
EATON 5361B CWD5361B
Send Print
  1. pin-int

CWD5361B

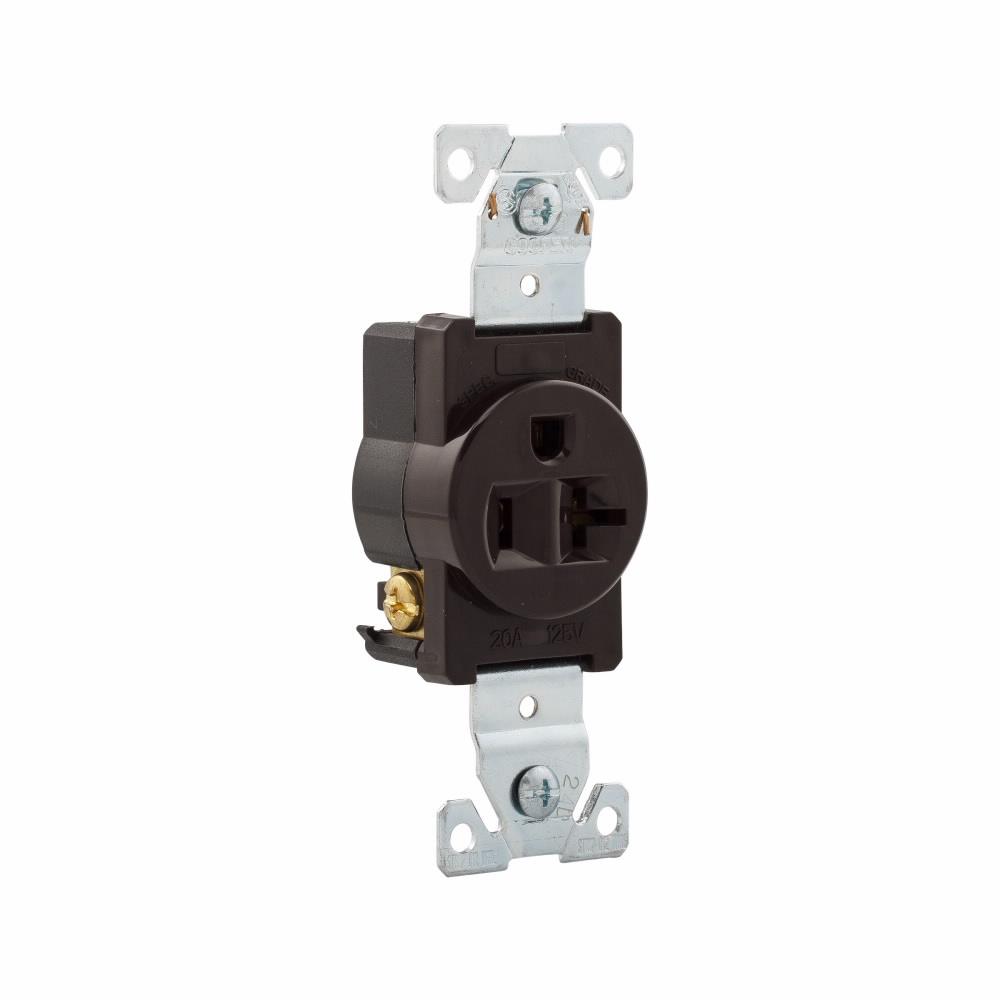

EATON Arrow Hart™ Eaton Wiring Devices 5361B Premium Single Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD5361B
  • MPN: 5361B
  • UPC:032664381904
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Industrial specification grade straight blade receptacles - premium 20 A, 125 VAC, NEMA 5-20R. designed from the inside out, these receptacles meet and exceed the UL 498 and Federal Specification W-C-596 standards to withstand the most abusive environments and excel in applications that demand the highest levels of performance.

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Premium Single, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, -4 to 158 deg F, Screw Terminal, Nylon, Brown, 4.03 in H x 1.3 in W x 0.76 in D Dimensions

Amperage Rating      :      20 A
Color      :      Brown
Dimensions      :      4.03 in H x 1.3 in W x 0.76 in D
Grade      :      Industrial
Material      :      Nylon
NEMA Rating      :      NEMA 5-20R
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -4 to 158 deg F
Terminal Type      :      Screw
Type      :      Premium Single
Voltage Rating      :      125 VAC
  • Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
  • All terminal and mounting screws Triple-combination (slot/Phillips®/Robertson) head for maximum installer flexibility
  • Long, broad mounting strap helps reach large panel cut-outs for code compliance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Screw catch feature on duplex devices speeds mounting of wallplates
  • Impact-resistant thermoplastic insulation
  • Flush mounting
  • 14 to 10 AWG wire terminal
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_11c99e703fd533a9204715a83ebb20095a9a09f805bacaab54a8fa0b63029436.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a3de5b5d82b611c8d812ee394358d85969f85aa3cdb3c04d3b31131e14fc28d3.pdf
