AHDS60 EATON
EATON AHDS60 CWDAHDS60
Send Print
  1. pin-int

CWDAHDS60

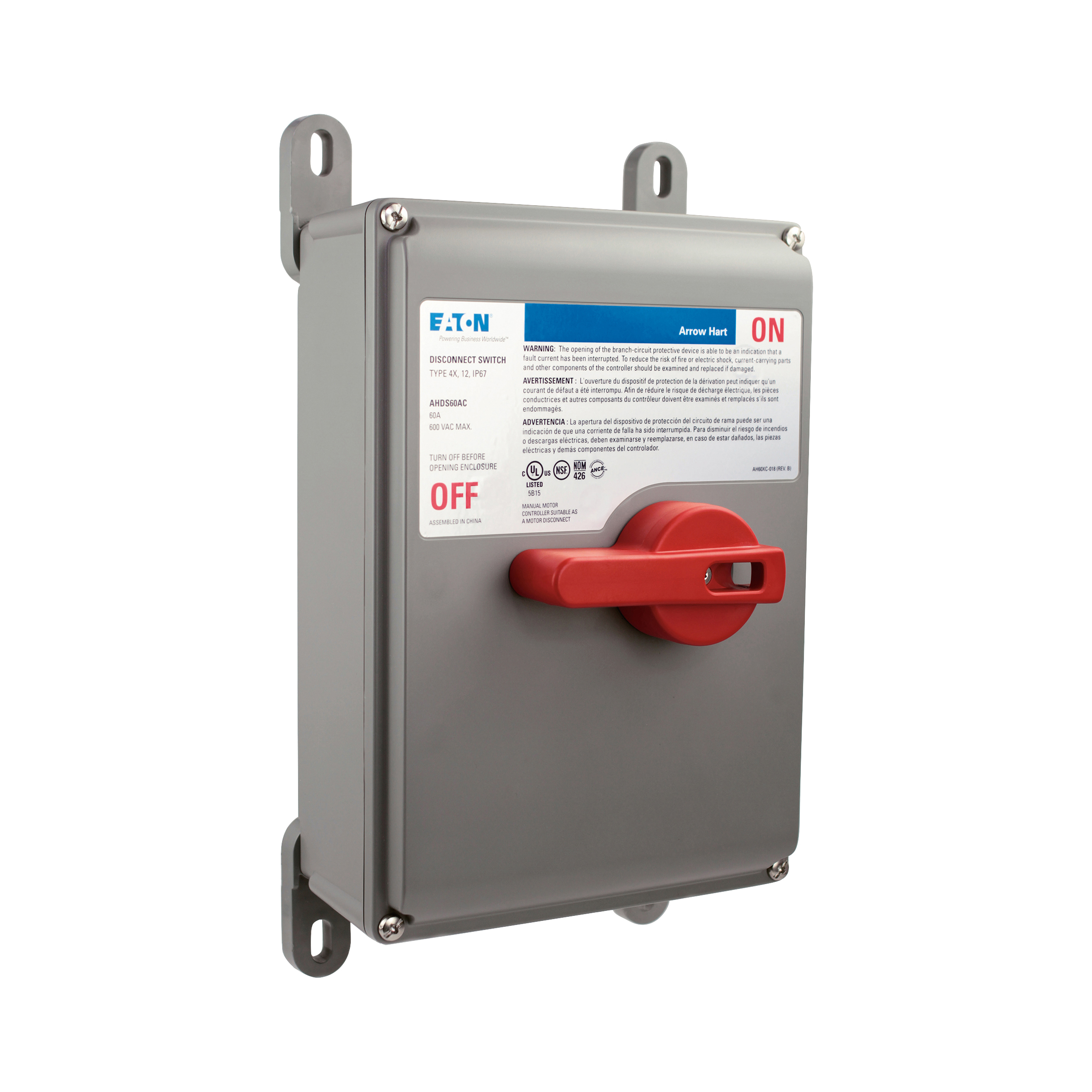

EATON Eaton Wiring Devices AHDS60 Non-Fusible Disconnect Switch, 600 VAC, 60 A, 20 hp, 3 Poles

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDAHDS60
  • MPN: AHDS60
  • UPC:032664741357
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Eaton Wiring Devices Disconnect Switch, Non-Fusible, 600 VAC, 60 A, 20 hp, 3 Phase, 3 Pole, NEMA 4/4X/12/IP67 Enclosure, Flush Mounting, -58 to 140 deg F, 11 in L x 7-1/2 in W x 5-1/2 in H Dimensions, Thermoplastic

Amperage Rating      :      60 A
Dimensions      :      11 in L x 7-1/2 in W x 5-1/2 in H
Enclosure Type      :      NEMA 4/4X/12/IP67
Horsepower      :      20 hp
Material      :      Thermoplastic
Mounting Type      :      Flush
Number of Poles      :      3
Phase      :      3
Temperature Rating      :      -58 to 140 deg F
Type      :      Non-Fusible
Voltage Rating      :      600 VAC
  • Thermoplastic enclosure made from VALOX™ resin provides high impact strength and excellent corrosion resistance
  • Adjustable mounting feet for flexible positioning options
  • High visibility red handle can be padlocked to meet OSHA lockout tagout requirements
  • Mounting feet have 2 options - flush mount or 1/4 in offset (for easy washdown behind the enclosure)
  • Auxiliary contacts are available for PLC or VFD applications
  • 14 to 4 AWG wire
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3598ec83dd5bee4b4e723a53aceeecd5952730f6e4228fafae61861960cf833d.pdf
