L2120CWBK EATON
EATON L2120CWBK CWDL2120CWBK
Send Print
  1. pin-int

CWDL2120CWBK

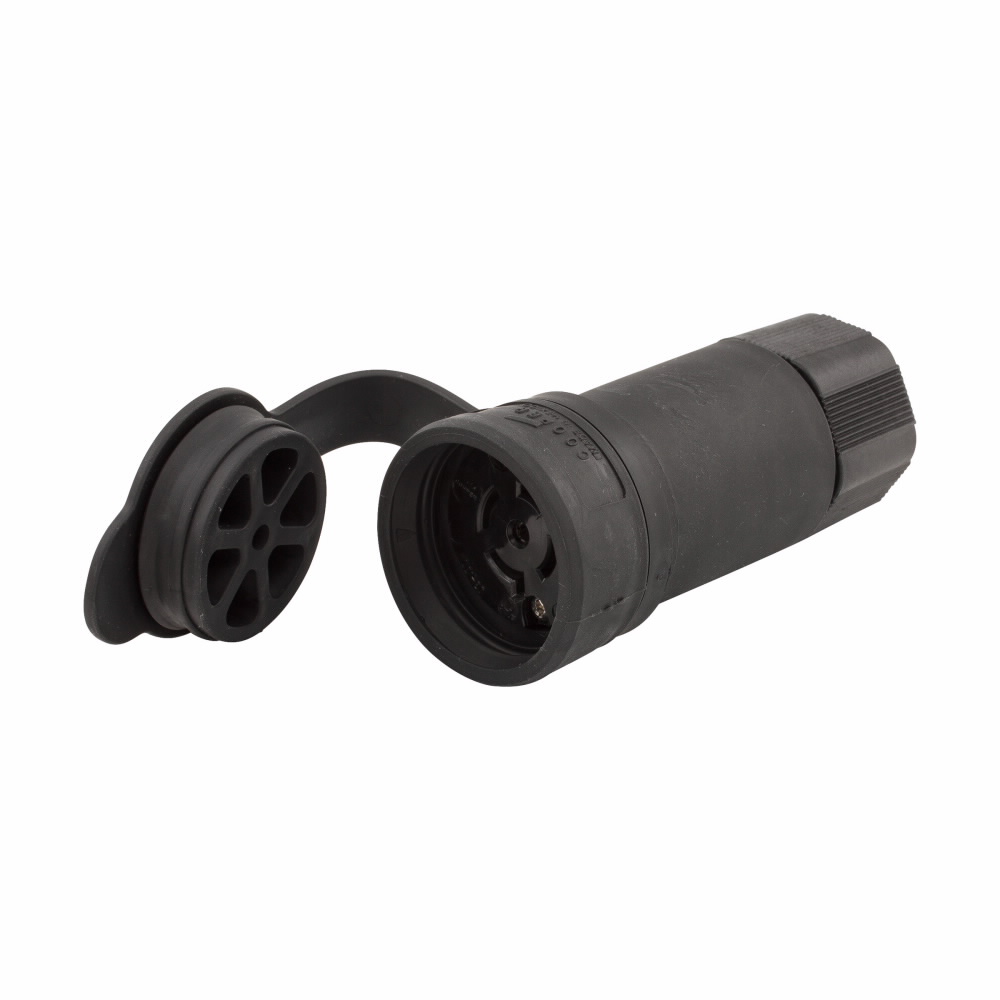

EATON Arrow Hart® Hart-Lock® L2120CWBK Locking Connector, 120/208 V, 20 A, 4 Poles, 5 Wires, Black

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDL2120CWBK
  • MPN: L2120CWBK
  • UPC:040893686219
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Arrow Hart® Hart-Lock® Connector, Locking, 120/208 V, 20 A, 4 Pole, 5 Wires, L21 to 20 NEMA Rating, Industrial Grade, 0.36 to 0.84 in Diameter Cord, Back Wire Terminal, Santoprene Thermoplastic Elastomeric, Black, 6.78 in L x 4.41 in W x 3.87 in H Dimensions

Amperage Rating      :      20 A
Color      :      Black
Cord Diameter      :      0.36 to 0.84 in
Dimensions      :      6.78 in L x 4.41 in W x 3.87 in H
Grade      :      Industrial
Material      :      Santoprene Thermoplastic Elastomeric
NEMA Rating      :      L21 to 20
Number of Poles      :      4
Number of Wires      :      5
Terminal Type      :      Back Wire
Type      :      Locking
Voltage Rating      :      120/208 V
  • Santoprene™ thermoplastic elastomeric over polypropylene outer shell, nylon interior body
  • Steel contact
  • 18 to 10 AWG wire
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d2bb29e2b96ef958170f1f7f2c55e3925b9ca33c7737fb2b525207723d8508fc.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1673a1c8bf60b96b357bdbfc59198d26da43097f44e63c65fbd1ebeed79d4e53.pdf
