TR274A EATON
EATON TR274A CWDTR274A
Send Print
  1. pin-int

CWDTR274A

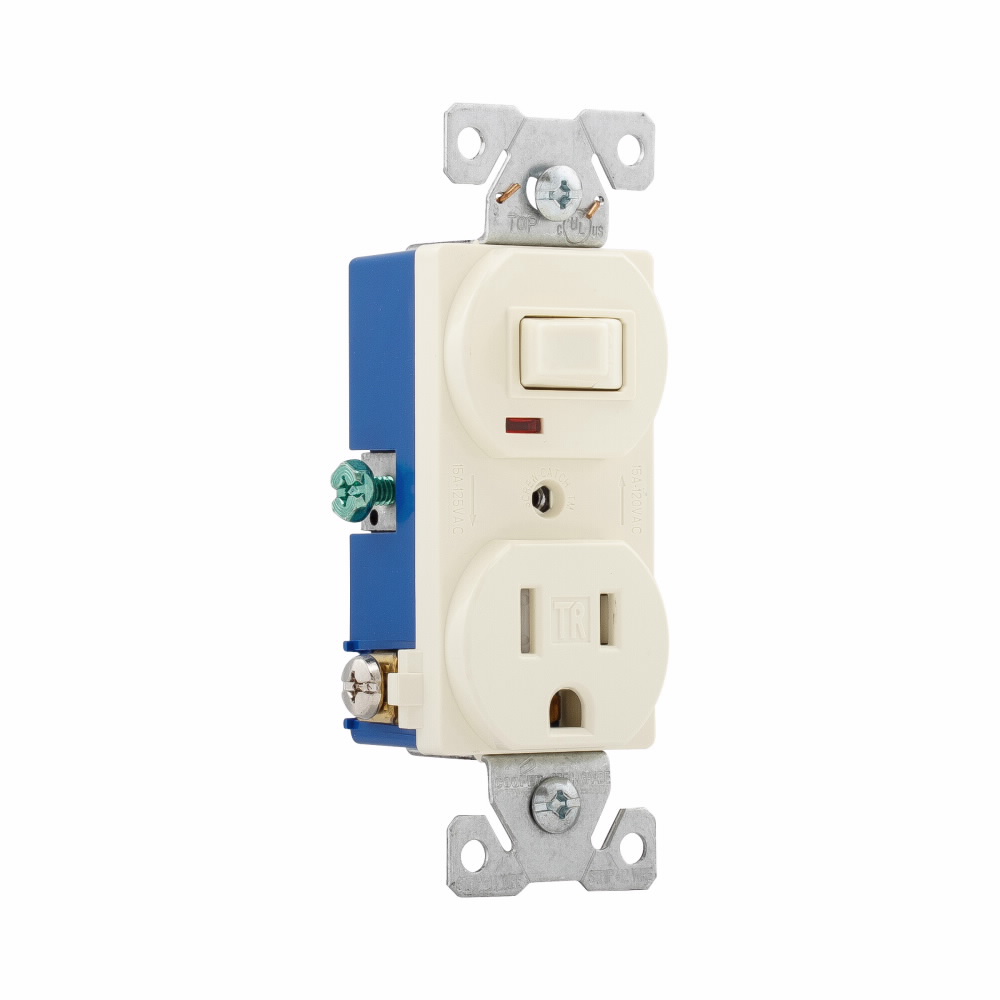

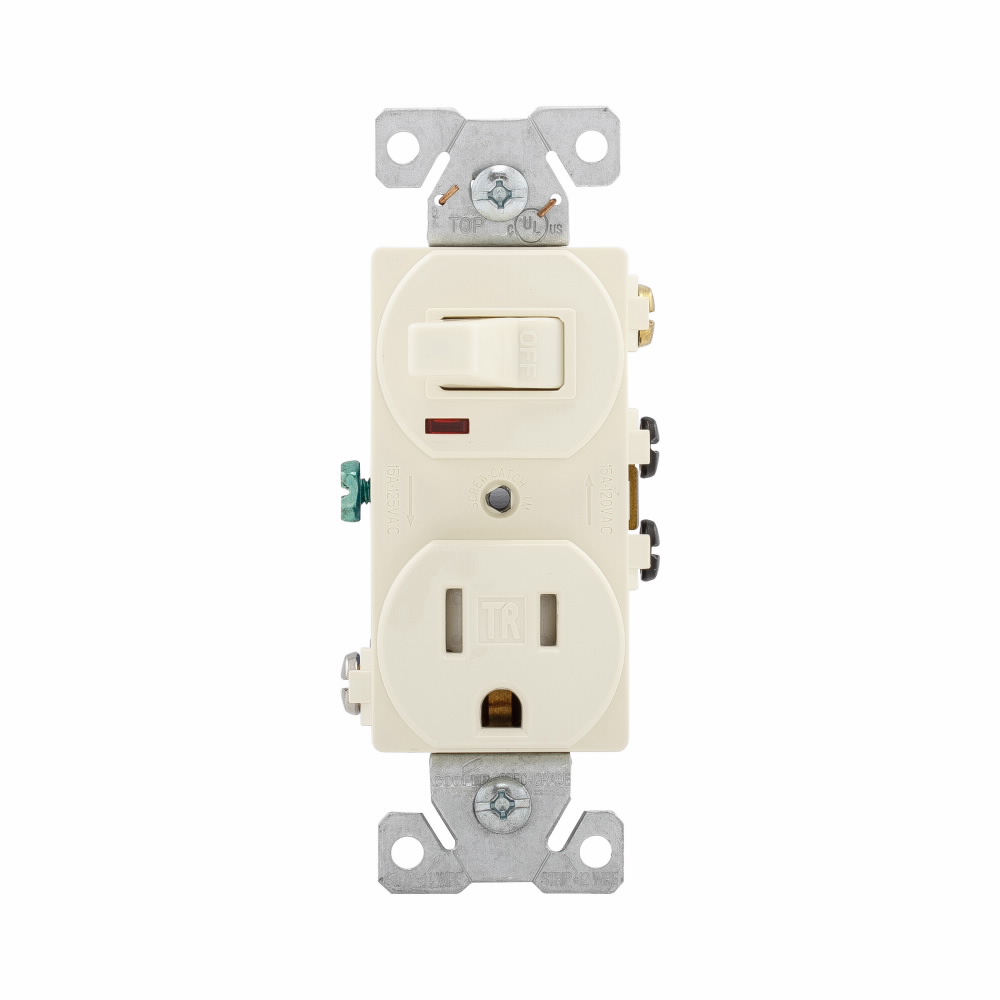

EATON TR274A TR274 Standard Straight Blade Receptacle, 120/125 V, 15 A, 2 Poles, 3 Wires, Almond

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDTR274A
  • MPN: TR274A
  • UPC:032664722240
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Straight Blade Receptacle, Standard, Series: TR274, 120/125 V, 15 A, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial Grade, -20 to 60 deg C, Back/Side Wire/Screw Terminal, Thermoplastic, Almond, 1.015 in D x 4.193 in H Dimensions

Amperage Rating      :      15 A
Color      :      Almond
Dimensions      :      1.015 in D x 4.193 in H
Grade      :      Commercial
Material      :      Thermoplastic
NEMA Rating      :      5-15R
Number of Poles      :      2
Number of Wires      :      3
Series      :      TR274
Temperature Rating      :      -20 to 60 deg C
Terminal Type      :      Back/Side Wire/Screw
Type      :      Standard
Voltage Rating      :      120/125 V
  • Tamper resistant receptacle
  • Maintained closure
  • 14 to 12 AWG wire
  • Flush mounting
  • Indoor enclosure environmental rating
  • PVC insulation
  • Toggle switch and receptacles configuration
  • Toggle actuator
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_81f649e4fa28991178ade1c611026c331fcbe52003548490ec983b4537ec6b5a.pdf
