78V-BOX EATON
EATON 78V-BOX CWD78VBOX
Send Print
  1. pin-int

CWD78VBOX

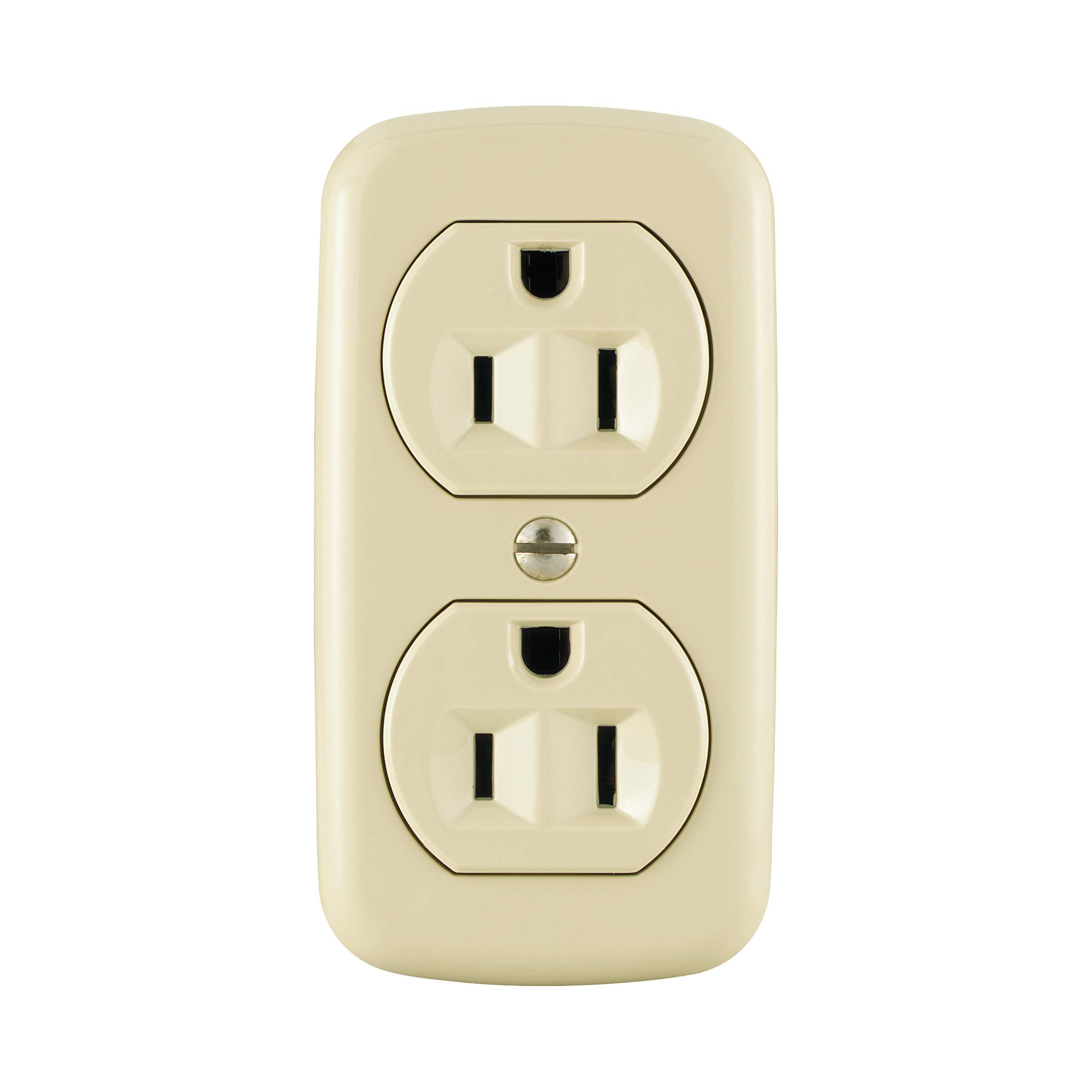

EATON 78V-BOX Duplex Straight Blade Receptacle, 125 V, 15 A, 2 Poles, 3 Wires, Ivory

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD78VBOX
  • MPN: 78V-BOX
  • UPC:032664205606
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's straight blade receptacles cover the full range of residential, hospital, industrial, construction, and commercial grades to meet any application. Choose from decorator or traditional styles, multiple colors, tamper resistant solutions and weather resistant products for exterior installations. Eaton also offers special solutions for complex environments including corrosion-resistant, severe-duty insulated and watertight products.

EATON Straight Blade Receptacle, Duplex, 125 V, 15 A, 2 Pole, 3 Wires, 5-15R NEMA Rating, Specialty/Standard Grade, -20 to 70 deg C, Screw Terminal, Thermoplastic, Ivory, 1.9 in W x 1.12 in D x 3.6 in H Dimensions

Amperage Rating      :      15 A
Color      :      Ivory
Dimensions      :      1.9 in W x 1.12 in D x 3.6 in H
Grade      :      Specialty/Standard
Material      :      Thermoplastic
NEMA Rating      :      5-15R
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -20 to 70 deg C
Terminal Type      :      Screw
Type      :      Duplex
Voltage Rating      :      125 V
  • Brass contacts
  • Surface mounting
  • Nylon face insulation
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_834f5a5801ae11d0e5ab67232d192bc87fdc234ec6ac0494a04b2c3738a9f53f.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cb539cbccb3290d81655497dde79917008e781806ccbf2e63658b235bb2aeb25.pdf
