1224BK EATON
EATON 1224BK CWD1224BK
Send Print
  1. pin-int

CWD1224BK

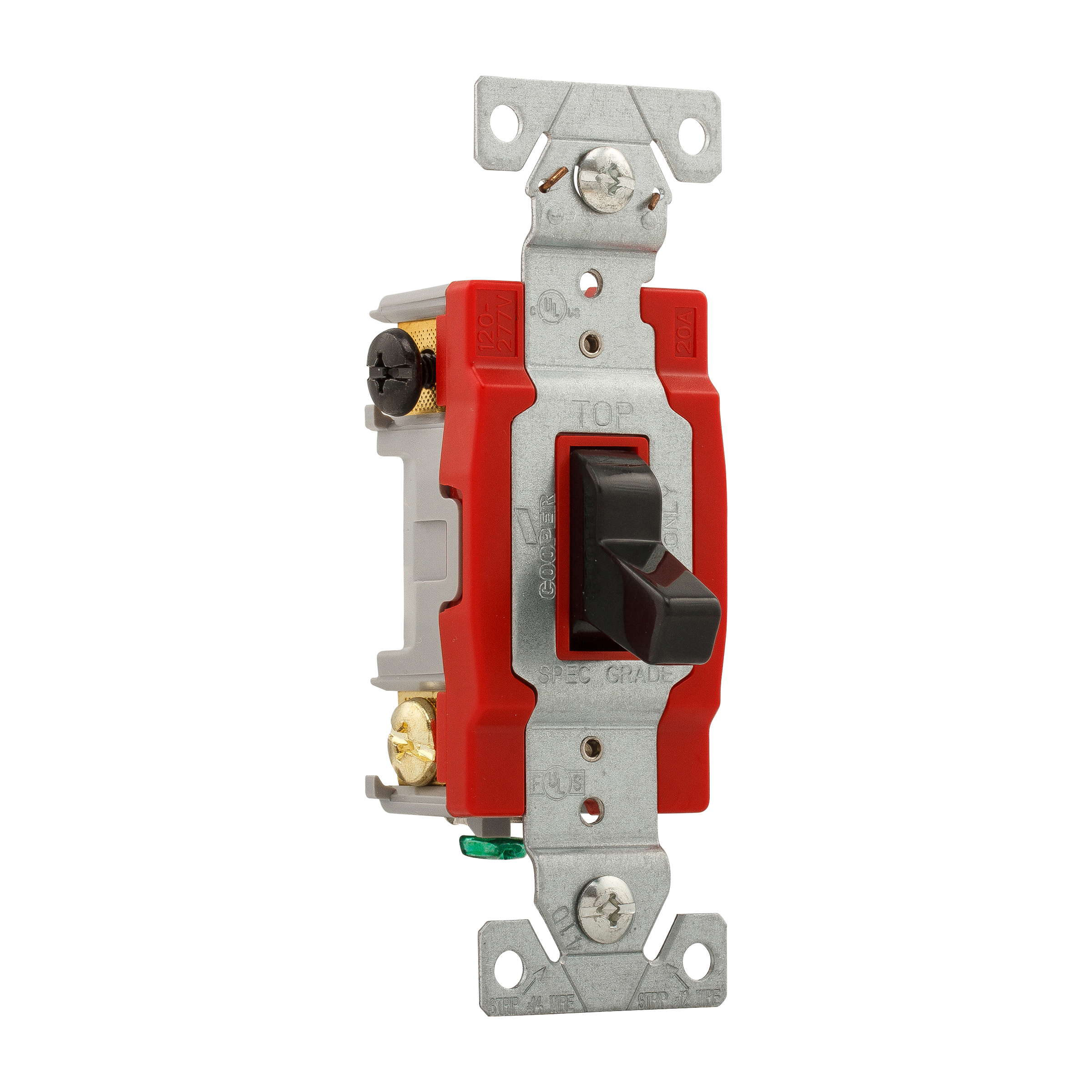

EATON Arrow Hart® 1224BK 1220 4-Way Construction Grade Toggle Switch, 120/277 V, 20 A, 1 hp Power Rating

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD1224BK
  • MPN: 1224BK
  • UPC:032664735875
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Arrow Hart® construction grade AC toggle switches incorporate the most durable design elements in the industry and are horsepower rated to handle motor loads.

EATON Arrow Hart® Toggle Switch, 4-Way Construction Grade, Series: 1220, 120/277 V, 20 A, 1 hp Power, Toggle Actuator, Wall Mounting, Back/Side Wire/Screw Terminal, Polycarbonate, Black, Environmental Conditions: -4 to 140 deg F Operating Temperature, 1.31 in L x 0.88 in W x 3.28 in H Dimensions

Actuator      :      Toggle
Amperage Rating      :      20 A
Color      :      Black
Dimensions      :      1.31 in L x 0.88 in W x 3.28 in H
Environmental Conditions      :      -4 to 140 deg F Operating Temperature
Material      :      Polycarbonate
Mounting      :      Wall
Power Rating      :      1 hp
Series      :      1220
Terminal Type      :      Back/Side Wire/Screw
Type      :      4-Way Construction Grade
Voltage Rating      :      120/277 V
  • Rugged thermoplastic top and bottom housing provides durability and strength
  • Color coded top housing helps identify amperage
  • Back and side wire terminals accept up to 10 AWG solid or stranded wire
  • Dual back wire holes for maximum feed through wiring flexibility
  • 1-piece brass contact arm assures proper contact for low resistance switching
  • Automatic grounding eliminates need for bonding jumper in metal enclosures
  • Tri-combo terminal and mounting screws for flexibility in installation
  • 14 to 10 AWG wire
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c8a0558d373fe81a1b1100bd6bd5480dc27cfae0b8acc9df005ef04347dec41f.pdf
