GFI22M1NN EATON
EATON GFI22M1NN CWDGFI22M1NN
Send Print
  1. pin-int

CWDGFI22M1NN

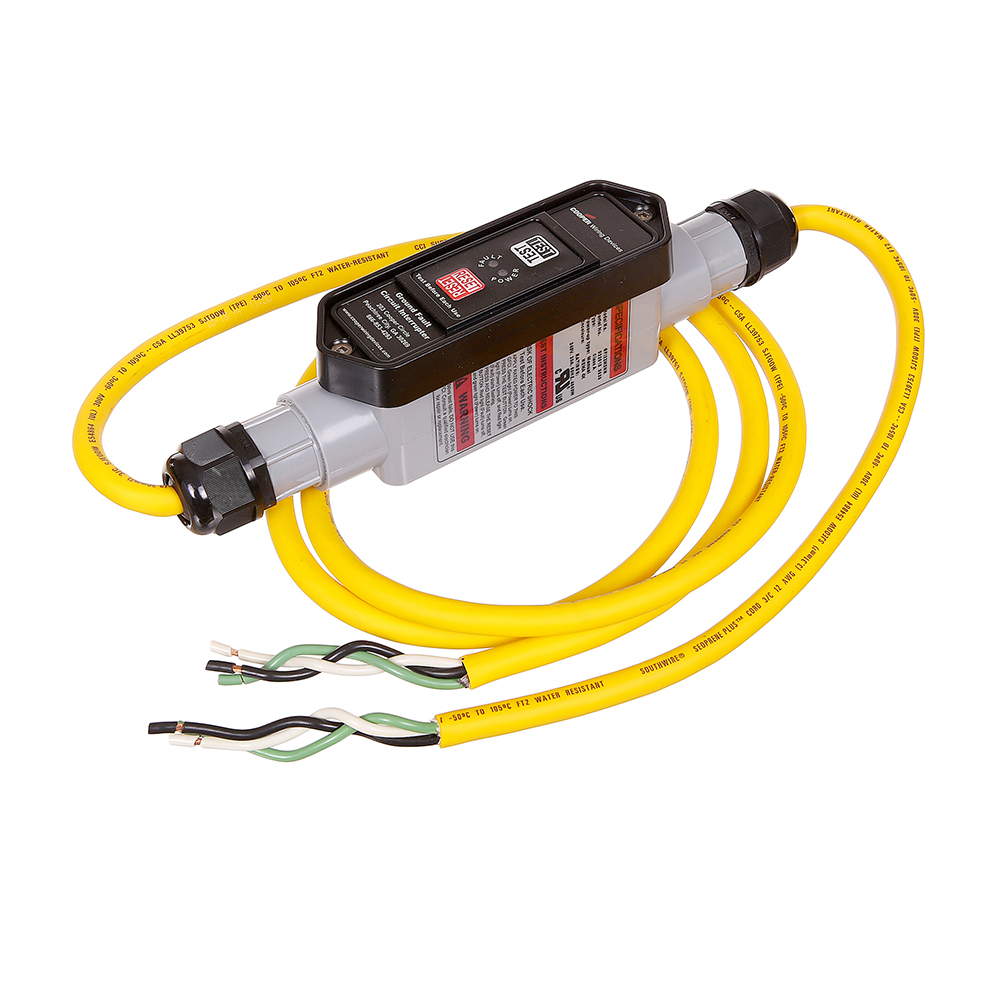

EATON GFI22M1NN Inline Portable GFI In-Line Cord Set, 240 VAC, (3) 12 AWG, 2 ft L

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDGFI22M1NN
  • MPN: GFI22M1NN
  • UPC:032664670008
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON GFI In-Line Cord Set, Portable, Series: Inline, 12 AWG Conductor, 3 Conductors, 2 ft Length, Straight Blade Plug, 20 A, 240 VAC, Polycarbonate, -31 to 151 deg F

Amperage Rating      :      20 A
Conductor Size      :      12 AWG
End Style      :      Straight Blade Plug
Jacket Material      :      Polycarbonate
Length      :      2 ft
Number of Conductors      :      3
Series      :      Inline
Temperature Rating      :      -31 to 151 deg F
Type      :      Portable
Voltage Rating      :      240 V
  • GFCI circuit interrupter
  • Housing is high strength polycarbonate for durability
  • Compact design
  • NEMA 4X wet location rated for indoor/outdoor use
  • Field wireable versions available for attachment to existing cords or equipment power supply
  • Manual reset
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_aed433f1ae8a6a39bec88be17065c0e6bd2de5fff744d0f3410da8d66cc03fa4.pdf
