RF9542DLA EATON
EATON RF9542DLA CWDRF9542DLA
Send Print
  1. pin-int

CWDRF9542DLA

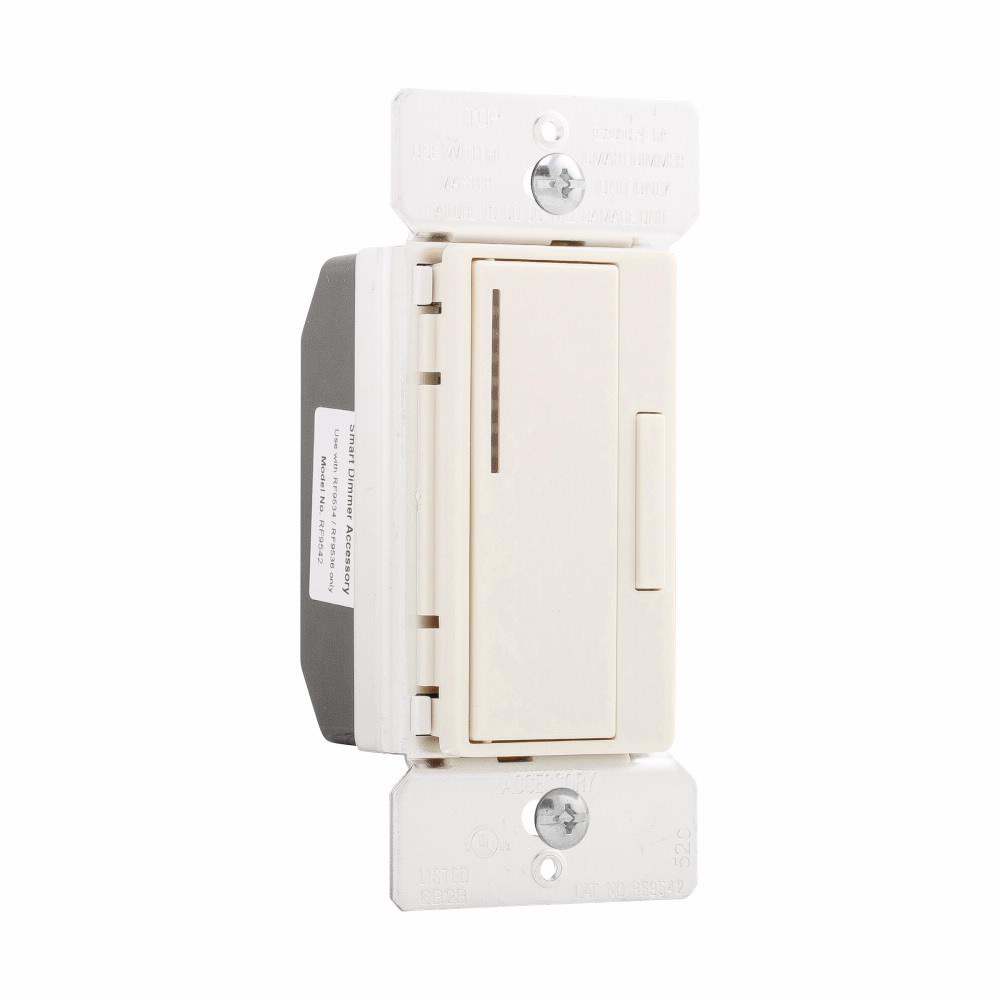

EATON Aspire RF® RF9542DLA Decorator Residential Smart Dimmer Switch, 120 V, 1 Poles, On/Off Operation, Light Almond

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDRF9542DLA
  • MPN: RF9542DLA
  • UPC:032664739064
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Using the latest in dimming technology, Eaton's dimmers let you adjust the level of your lighting at the light switch, so you can bring the right look to the room and save money at the same time. That s because lighting controls reduce the amount of electricity used by your lights, which saves electricity, reduces utility bills and extends the life of the bulb. Eaton's lighting controls are compatible with most common lighting loads, including LED, CFL, MLV, ELV and Fluorescent; and they come in multiple styles and colors, you can select the perfect dimmer for every room in your home or commercial building.

EATON Aspire RF® Smart Dimmer Switch, Residential, Series: Decorator, 120 V, 60 Hz Frequency, 1 Pole, LED Lamp, Operation Mode: On/Off, 3-Way/Push Pad Control, Flush Mounting, Lead Wire Terminal, 32 to 104 deg F, Polycarbonate, Light Almond, 4.2 in H x 1.8 in W x 1.36 in D Dimensions

Color      :      Light Almond
Control      :      3-Way/Push Pad
Dimensions      :      4.2 in H x 1.8 in W x 1.36 in D
Frequency Rating      :      60 Hz
Lamp Type      :      LED
Material      :      Polycarbonate
Mounting Type      :      Flush
Number of Poles      :      1
Operation Mode      :      On/Off
Series      :      Decorator
Temperature Rating      :      32 to 104 deg F
Terminal Type      :      Lead Wire
Type      :      Residential
Voltage Rating      :      120 V
  • Turn lights ON and OFF and adjust the light intensity to create any mood or environment with a single touch on one of the Aspire RF® controllers
  • Versions with no neutral are ideal for remodeling/retrofit applications
  • Electro-mechanical push pad for ON/OFF operation with separate DIM/BRIGHT bar
  • LED light level display for presetting illumination levels and master/accessory units for multi-location control
  • Amber LED at bottom of LED display indicates ON/OFF load status
  • Seven step blue LED display indicates selected light level and reduces brightness when OFF
  • RF accessory RF9542 works with no neutral RF dimmers to provide traditional multi-location control for up to 3 additional locations using traditional 3-way traveler wires
  • All Aspire RF® master dimmers can be used for multi-location control with the RF9542-Z
  • Can be associated with up to 5 other devices
  • All ON/OFF capability
  • Panic mode capability
  • Patented indicator system alerts if dimmer is not set up in the network
  • 7-step LED light level display
  • Maintained closure
  • Fan load type
  • For use with RF9534 and RF9536 non-neutral RF dimmers
