276LA EATON
EATON 276LA CWD276LA
Send Print
  1. pin-int

CWD276LA

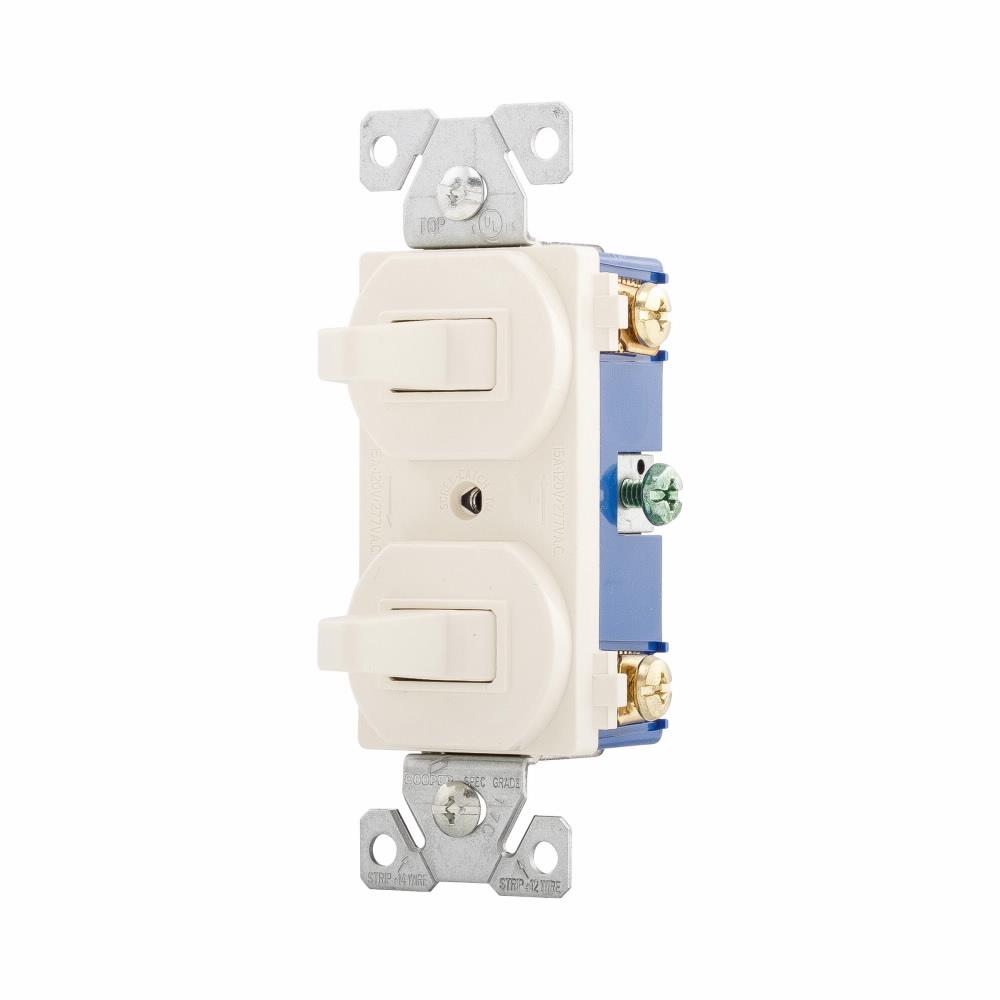

EATON Arrow Hart™ Eaton Wiring Devices 276LA 3-Way Duplex Heavy Duty Toggle Combination Switch, 15 A at 120/277 VAC, 1 Poles

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD276LA
  • MPN: 276LA
  • UPC:032664583322
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Arrow Hart™ Eaton Wiring Devices Toggle Combination Switch, 3-Way Duplex Heavy Duty, 15 A at 120/277 VAC Electrical Rating, 1 Pole, Surface Mounting, 4.19 in H x 1.3 in W x 1.08 in D Size, 30000 Operating Cycles, Environmental Conditions: -20 to 60 deg C Operating Temperature, Thermoplastic, Light Almond

Color      :      Light Almond
Electrical Ratings      :      15 A at 120/277 VAC
Environmental Conditions      :      -20 to 60 deg C Operating Temperature
Material      :      Thermoplastic
Mounting      :      Surface
Number of Poles      :      1
Operating Cycles      :      30000
Size      :      4.19 in H x 1.3 in W x 1.08 in D
Type      :      3-Way Duplex Heavy Duty
  • Screw connection
  • (2) toggle switch and duplex
  • Heavy duty brass contact
  • Switch action
  • Thermoplastic top and back body are virtually unbreakable
  • Mounting straps are zinc plated to for added corrosion-resistance
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_aca267b5b5d7d1c77ffb5cdacba7510a952b49fa3cf482f542f2bdb53b50b887.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cooper_Wiring_271B_BOX_Installation_Instructions.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_81f649e4fa28991178ade1c611026c331fcbe52003548490ec983b4537ec6b5a.pdf
