  • Manufacturers: Leviton
  • Brand Name: LEVITON
  • BPN: LEVECS00103
  • MPN: ECS00-103
  • UPC:078477627372
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

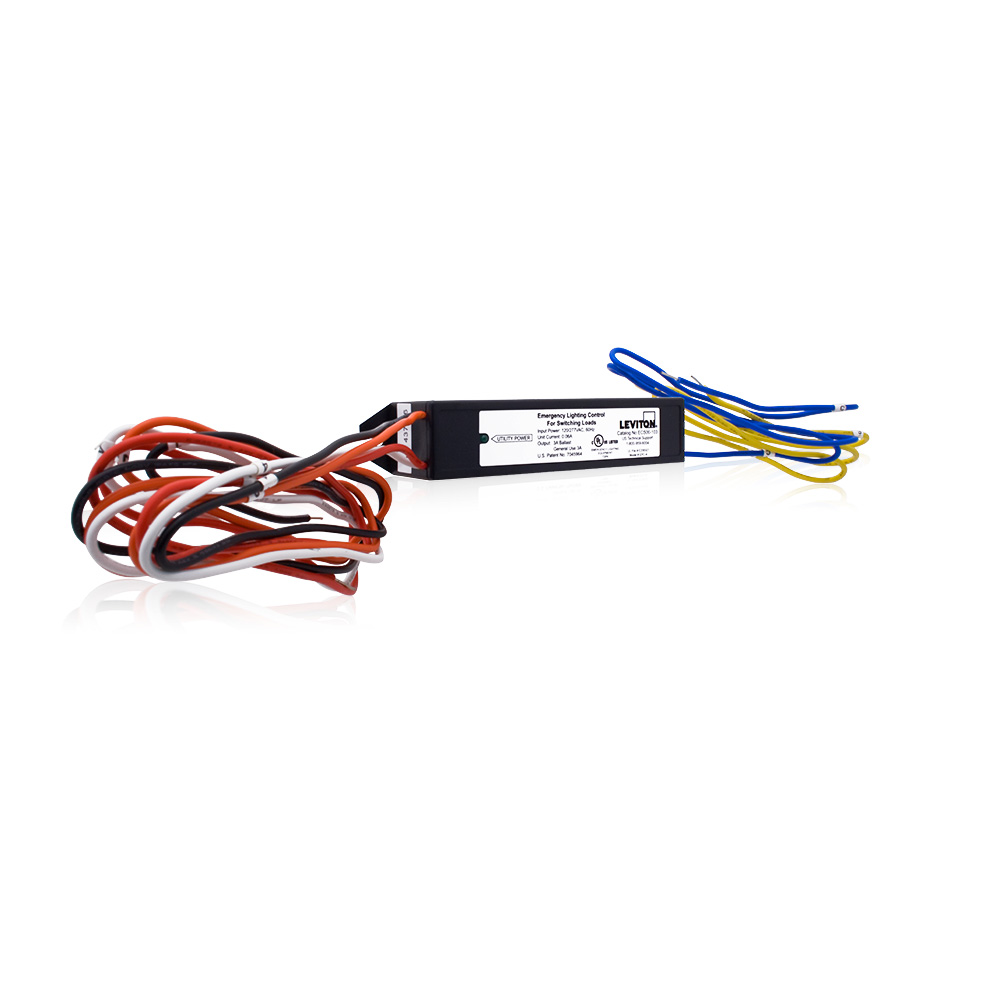

Emergency Power Control, Fixture Mount, Switching Loads Transfer and Shunt Relay, 120-277VAC, 3A, 60Hz

Amperage Rating      :      3 Amp
Amperage      :      3 Amp
Application      :      Commercial
Brand Name      :      Leviton
Country of Origin      :      China
Standards      :      UL Listed to UL924
Standard      :      UL Listed To UL924
Trade Slang      :      078477627372, emergency bypass, LEVECS00103, Leviton, ECS00-103, Enclosed Relays - Emergency Bypass / Shunt, Enclosed Relays, Relays, Control, Automation
Type      :      Emergency Switching Luminaire Control
Voltage Rating      :      120-277 Volt
Voltage      :      120-277 Volt


  • In the past, all designated emergency lights in a facility had to stay on 24 hours a day to meet safety codes. The Leviton Emergency Switching Luminaire Control allows you to specify and install a UL-924 listed emergency power control device that can convert and control up to 20 regular light fixtures as approved emergency lights.
  • Automatic diagnostic when the room switch is turned OFF
  • Emergency luminaires stay on for 2.5 seconds
  • Power indicator LED for utility power for easy verification
  • Compatible with all switching controls including occupancy sensors, relay panels and switches
  • Local room switch or lighting control turns both regular and emergency luminaries on at the same time eliminating the need for a dedicated emergency room switch


  • RoHS Compliant: Yes
  • pdfSpec Sheet http://www.leviton.com/en/docs/G-8963A_Emergency_Switching_Luminaire_Control_-_REV_MAY_19.pdf
