ED23S100A Siemens
Siemens ED23S100A ITEED23S100A
Send Print
  1. pin-int

ITEED23S100A

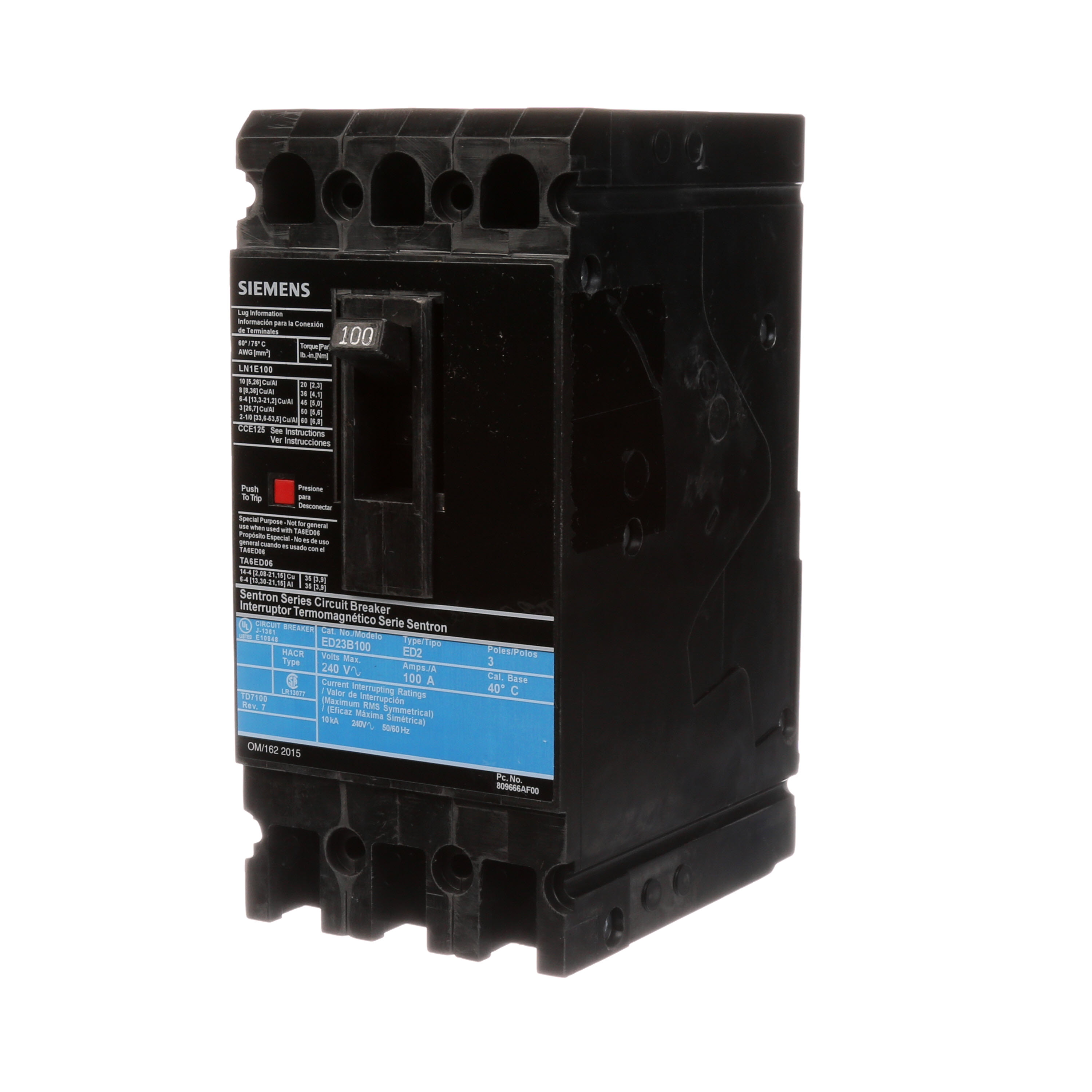

Siemens ED23S100A BREAKER ED 3P 100A 24

  • Manufacturers: Siemens
  • Brand Name: Siemens
  • BPN: ITEED23S100A
  • MPN: ED23S100A
  • UPC:783643211018
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC ONLY TRIPUNIT. MOLDED CASE SWITCH (BREAKER) ED FRAME WITH STANDARD BREAKING CAPACITY. 100A 3-POLE 240V 1000A SELF-PROTECTIVE INSTANTANEOUS OVERRIDE. NON-INTERCHANGEABLETRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN 3.00 x 6.4 x 3.92.

Actuator      :      Varying
Amperage Rating      :      100 Amp
Amperage      :      100 Amp
Application      :      Molded Case Switch
Auxiliary Contacts      :      N/A
Brand Name      :      Siemens
Connection      :      N/A
ETIM 7 Class      :      EC000228
Enclosure Standard      :      Varying
Frame      :      ED
Frequency Rating      :      50/60 Hz
Height      :      6 Inch
Interrupt Rating      :      10 kAIC
Length      :      4
Load Rating      :      N/A
Number of Poles      :      3 Pole
Operating Temperature      :      40C
Standards      :      HACR
Sub Brand      :      Sentron
  • linkSpec Sheet https://mall.industry.siemens.com/tedservices/DatasheetService/DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:ED23S100A&language=en
