ED22B050 Siemens Canada
Siemens Canada ED22B050 ITEED22B050
Send Print
  1. pin-int

ITEED22B050

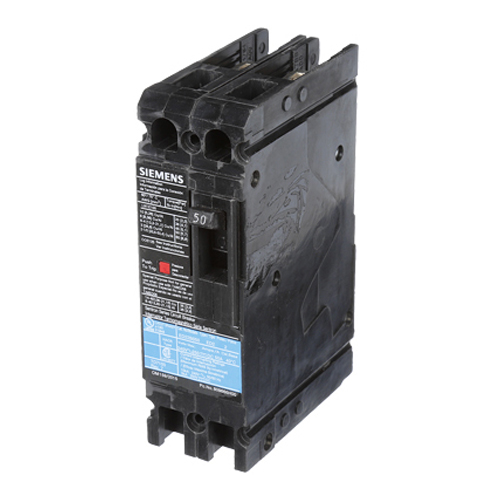

Siemens ED22B050 240 VAC 50 Amp 10 kaic 2-Pole Circuit Breaker with LD Lug

  • Manufacturers: Siemens
  • Brand Name: Siemens Canada
  • BPN: ITEED22B050
  • MPN: ED22B050
  • UPC:783643208902
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Type ED Molded Case Circuit Breaker, 10kA @ 240V, 2 Poles, 50A, Non-interchangeable, Standard 40 Degree Celsius Breaker, Thermal Magnetic, Standard IC Rating

Actuator      :      Varying
Amperage Rating      :      50 Amp
Amperage      :      50 Amp
Application      :      Standard 40C Breaker
Auxiliary Contacts      :      N/A
Brand Name      :      Siemens Canada
Connection      :      N/A
Current Rating      :      50 Amp
Current      :      50 Amp
ETIM 7 Class      :      EC000228
Enclosure Standard      :      Varying
Frame      :      ED
Frequency Rating      :      50/60 Hz
Height      :      6 Inch
Interrupt Rating      :      10 kAIC
Length      :      3 Inch
Load Rating      :      N/A
Number of Poles      :      2 Pole
Operating Temperature      :      40C
Standards      :      HACR
Sub Brand      :      Sentron
  • linkSpec Sheet https://mall.industry.siemens.com/tedservices/DatasheetService/DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:ED22B050&language=en
