ED61B025 Siemens
Siemens ED61B025 ITEED61B025
Send Print
  1. pin-int

ITEED61B025

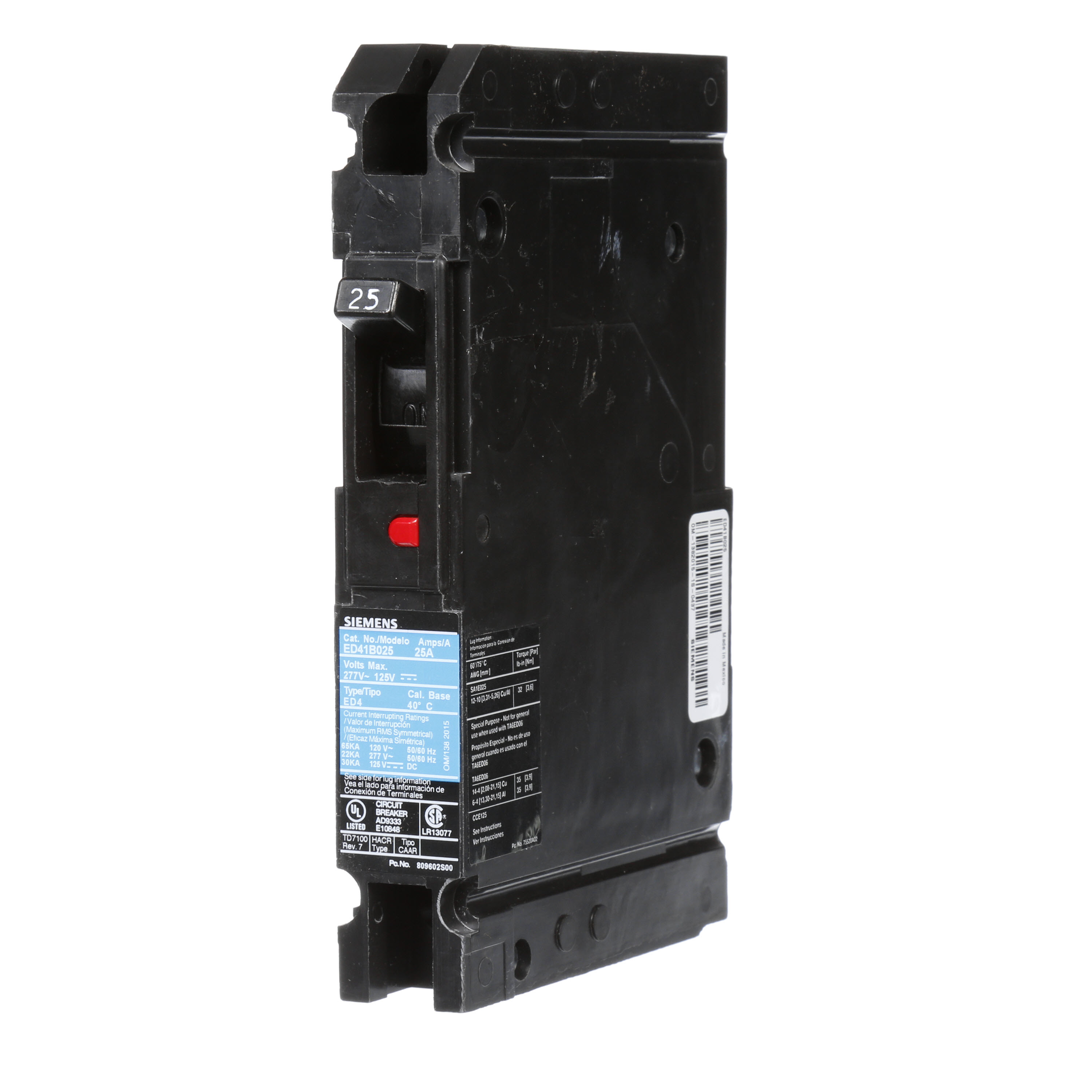

Siemens ED61B025 ED MCCB,30kA@34

  • Manufacturers: Siemens
  • Brand Name: Siemens
  • BPN: ITEED61B025
  • MPN: ED61B025
  • UPC:783643218468
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Type ED Molded Case Circuit Breaker, 30kA @ 347V, 1 Pole, 25A, Non-interchangeable, Standard 40 Degree Celsius Breaker, Thermal Magnetic, Standard IC Rating

Actuator      :      Switch Position Knob
Amperage Rating      :      25 Amp
Amperage      :      25 Amp
Application      :      Standard 40C Breaker
Auxiliary Contacts      :      N/A
Brand Name      :      Siemens
Connection      :      N/A
Current Rating      :      25 Amp
Current      :      25 Amp
Dimensions      :      6 in L x 1 in W x 5 in H
ETIM 7 Class      :      EC000228
Enclosure Standard      :      Varying
Frame      :      ED
Frequency Rating      :      50/60 Hz
Height      :      5 Inch
Interrupt Rating      :      30 kAIC
Item Name      :      Circuit Breaker
Length      :      6 Inch
Load Rating      :      N/A
Number of Poles      :      1 Pole
Operating Temperature      :      40C
Standards      :      HACR Rated
Sub Brand      :      Sentron
Temperature Rating      :      40 °C
Terminal Connection      :      Stud
  • linkSpec Sheet https://mall.industry.siemens.com/tedservices/DatasheetService/DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:ED61B025&language=en
