ED63A025 Siemens
Siemens ED63A025 ITEED63A025
Send Print
  1. pin-int

ITEED63A025

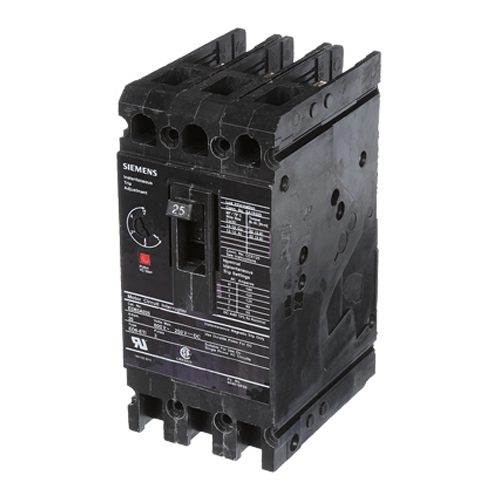

Siemens ED63A025 600 Volt 25 Amp 3-Pole Circuit Breaker with ETI Lugs

  • Manufacturers: Siemens
  • Brand Name: Siemens
  • BPN: ITEED63A025
  • MPN: ED63A025
  • UPC:783643210837
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC TRIP ONLYUNIT. STANDARD RANGE ETI BREAKER ED FRAME WITH STAND ARDBREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 25A 3-POLEBREAKER (18KAIC AT 600V) (25KAIC AT 480V). SPECIAL FEATURES LOAD LUGSONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS(W x H x D) IN 3 x 6.35 x 3.92.____________________ ____________________________________________________

Actuator      :      Varying
Amperage Rating      :      25 Amp
Amperage      :      25 Amp
Application      :      Standard Range ETI Breaker
Auxiliary Contacts      :      N/A
Brand Name      :      Siemens
Connection      :      N/A
Current Rating      :      25 Amp
Current      :      25 Amp
Dimensions      :      4 in L x 6 in W x 7 in H
ETIM 7 Class      :      EC000228
Enclosure Standard      :      Varying
Frame      :      ED
Frequency Rating      :      50/60 Hz
Height      :      7 Inch
Interrupt Rating      :      18 kAIC
Item Name      :      Circuit Breaker
Length      :      4
Load Rating      :      N/A
Number of Poles      :      3 Pole
Operating Temperature      :      40C
Standards      :      HACR Rated
Sub Brand      :      Sentron
Temperature Rating      :      40 °C
Terminal Connection      :      Lug
  • linkSpec Sheet https://mall.industry.siemens.com/tedservices/DatasheetService/DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:ED63A025&language=en
