ED23B070L Siemens Canada
Siemens Canada ED23B070L ITEED23B070L
Send Print
  1. pin-int

ITEED23B070L

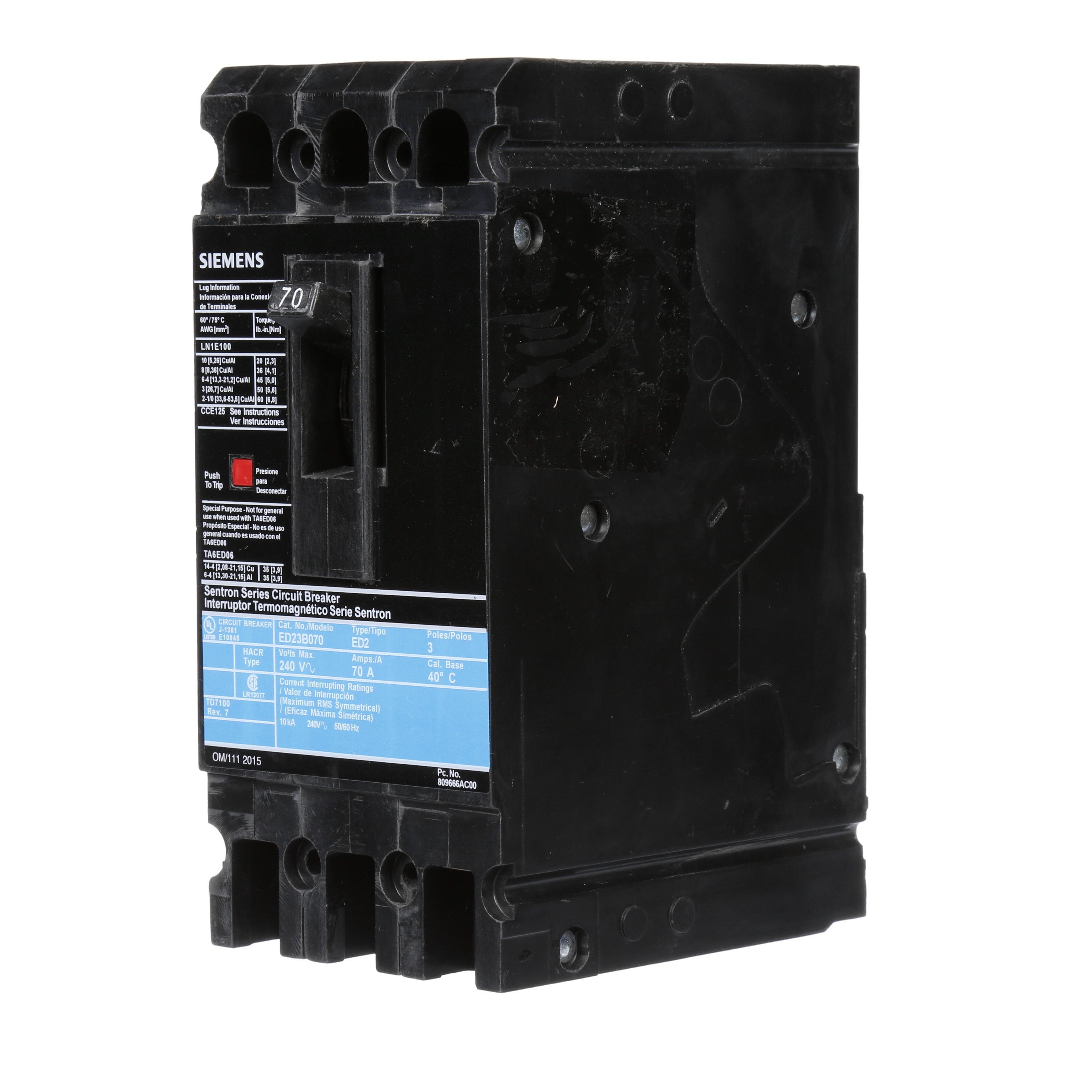

Siemens ED23B070L ED MCCB,10kA@2

  • Manufacturers: Siemens
  • Brand Name: Siemens Canada
  • BPN: ITEED23B070L
  • MPN: ED23B070L
  • UPC:783643318908
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Type ED Molded Case Circuit Breaker, 10kA @ 240V, 3 Poles, 70A, Non-interchangeable, Standard 40 Degree Celsius Breaker, Thermal Magnetic, Line/Load Lugs Installed, Standard IC Rating

Actuator      :      Varying
Amperage Rating      :      70 Amp
Amperage      :      70 Amp
Application      :      Standard 40C Breaker
Auxiliary Contacts      :      N/A
Brand Name      :      Siemens Canada
Connection      :      Line/Load lugs installed
Current Rating      :      70 Amp
Current      :      70 Amp
ETIM 7 Class      :      EC000228
Enclosure Standard      :      Varying
Frame      :      ED
Frequency Rating      :      50/60 Hz
Height      :      6 Inch
Interrupt Rating      :      10 kAIC
Length      :      3 Inch
Load Rating      :      N/A
Number of Poles      :      3 Pole
Operating Temperature      :      40C
Standards      :      HACR
Sub Brand      :      Sentron
  • linkSpec Sheet https://mall.industry.siemens.com/tedservices/DatasheetService/DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:ED23B070L&language=en
