HFC221NR
Siemens
https://www.billows.com/3448429/product/ITEHFC221NR
https://www.billows.com/3448429/product/ITEHFC221NR
ITEHFC221NR
Siemens HFC221NR CSA 30A 2P 3W 2
- Manufacturers: Siemens
- Brand Name: Siemens
- BPN: ITEHFC221NR
- MPN: HFC221NR
- UPC:783643221505
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term

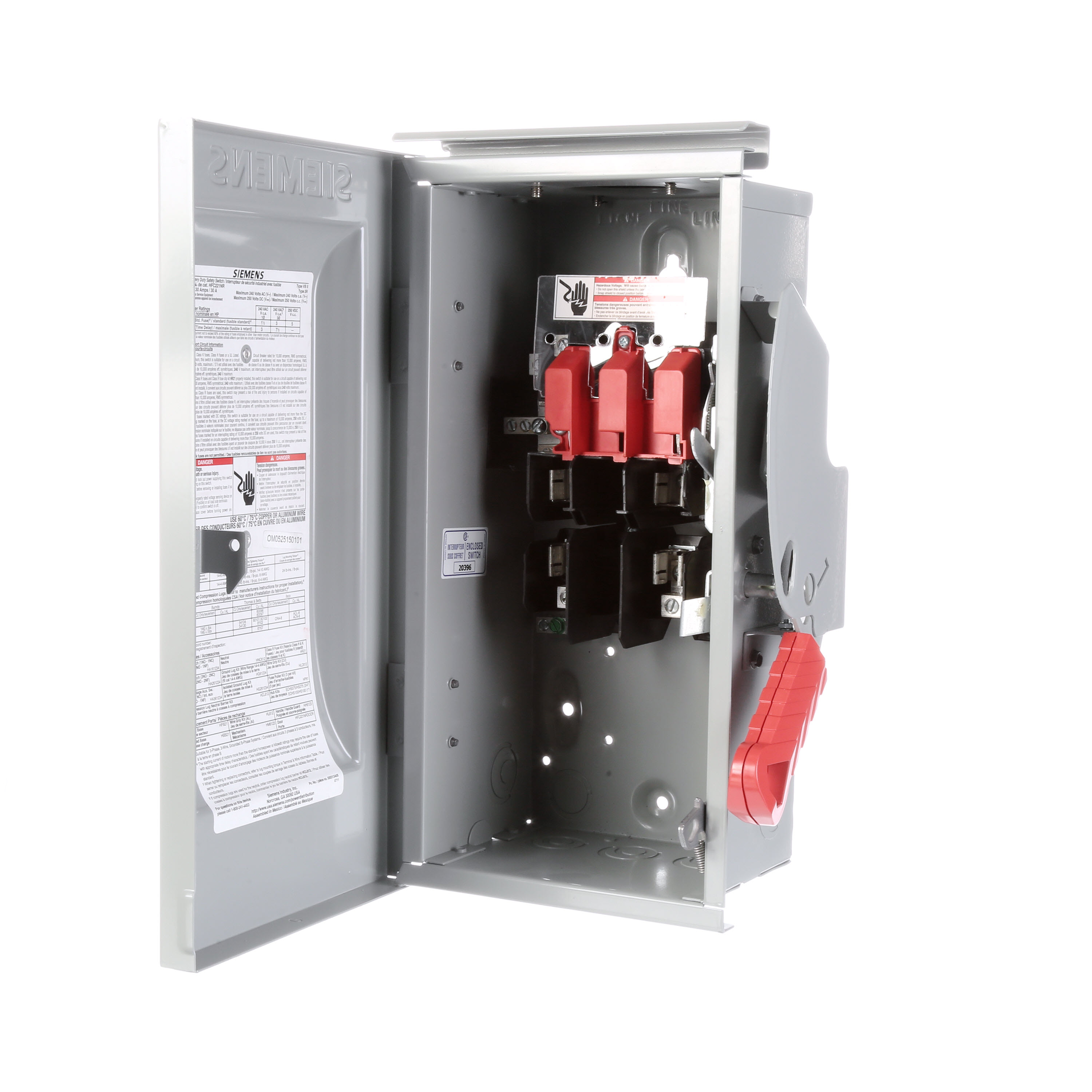

CSA Heavy Duty Safety Switch, Fusible, 2 Poles, 240V, 30A, Type 3R, With Neutral - Service Entrance Rated
| Action | : | SINGLE THROW |
| Actuator | : | SINGLETHROW |
| Amperage Rating | : | 30 Amp |
| Amperage | : | 30 Amp |
| Application | : | For Outdoor use |
| Brand Name | : | Siemens |
| Connection Type | : | MECHANICAL LUGS |
| Connection | : | MECHANICALLUGS |
| Country of Origin | : | Mexico |
| ETIM 7 Class | : | EC002498 |
| Enclosure Standard | : | NEMA3R |
| Frequency Rating | : | 60 Hz |
| Fuse Type | : | A2/A3 |
| Height | : | 9.18 Inch |
| Housing Material | : | 304 Stainless Steel |
| Insulation | : | None |
| Interrupt Rating | : | 10 kAIC |
| Item Name | : | Safety Switch |
| Length | : | 14.91 Inch |
| Load Rating | : | 3 W |
| Material | : | Steel |
| Mounting Type | : | 2 or 3 Point Hole |
| Mounting | : | SURFACE |
| NEMA Rating | : | NEMA 3R |
| Number of Poles | : | 2 Pole |
| Number of Wires | : | 3 Wire |
| Operating Cycles | : | 10000 |
| Operating Temperature | : | -29 °C |
| RoHS Indicator | : | Unknown |
| Standards | : | CSA Certified |
| Sub Brand | : | VBII |
| Temperature Rating | : | -20 to 120 °F Ambient |
Specifications
- Material: STEEL
- Country of Origin: MX
- Sub Brand: VBII
- Mounting: SURFACE
- Enclosure: TYPE 3R
- Number of Poles: 2
- Amperage Rating: 30
- Brand Name: SIEMENS
- Standard: UL98 / CSA
- Actuator: SINGLE THROW
- Frequency Rating: true
- Operating Cycles: 10000
- Type: HEAVY DUTY SWITCH
- Connection: MECHANICAL LUGS
- Operating Temperature: -29 Cel ... 85 Cel
- Environmental Conditions: -29 Cel ... 85 Cel
- Application: DISCONNECTING MEAN FOR SERVICE ENTRANCE / LOADS
