HHJD63F400 Siemens
Siemens HHJD63F400 ITEHHJD63F400
Send Print
  1. pin-int

ITEHHJD63F400

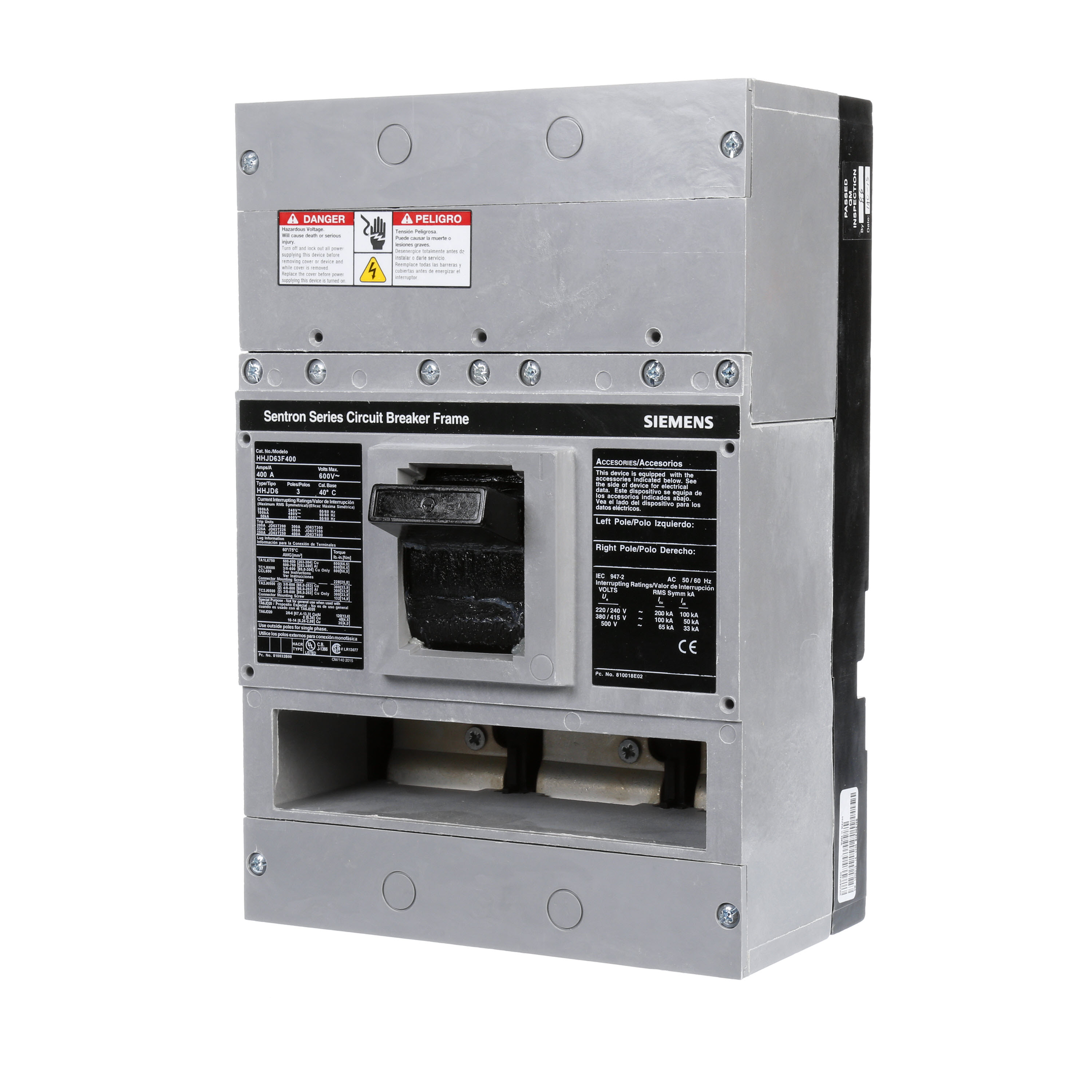

Siemens HHJD63F400 3-Pole 400 Amp 600 VAC 50 kA Circuit Breaker JD Frame

  • Manufacturers: Siemens
  • Brand Name: Siemens
  • BPN: ITEHHJD63F400
  • MPN: HHJD63F400
  • UPC:783643257696
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Type JD Molded Case Circuit Breaker, 50kA @ 600V, 3 Poles, 400A, Interchangeable, Frame Only, Thermal Magnetic, Extra High IC Rating

Actuator      :      Varying
Amperage Rating      :      400 Amp
Amperage      :      400 Amp
Application      :      For Frame Only
Auxiliary Contacts      :      N/A
Brand Name      :      Siemens
Connection      :      N/A
Current Rating      :      400 Amp
Current      :      400 Amp
Dimensions      :      6.7 in L x 8.7 in W x 14.6 in H
ETIM 7 Class      :      EC000228
Enclosure Standard      :      Varying
Frame      :      HHJD6
Frequency Rating      :      50/60 Hz
Height      :      14.6 Inch
Interrupt Rating      :      50 kAIC
Item Name      :      Circuit Breaker Frame
Length      :      6.7 Inch
Load Rating      :      N/A
Number of Poles      :      3 Pole
Operating Temperature      :      40C
Special Features      :      Extra High IC Rating
Standards      :      UL Listed, HACR Rated
Sub Brand      :      Sentron
Temperature Rating      :      40 °C
  • pdfSpec Sheet https://digitalcontentcenter.compas.siemens-info.com/SIE_CS_JD-LD-Frames_Cut-Sheet.pdf
