JXD63B200 Siemens
Siemens JXD63B200 ITEJXD63B200
Send Print
  1. pin-int

ITEJXD63B200

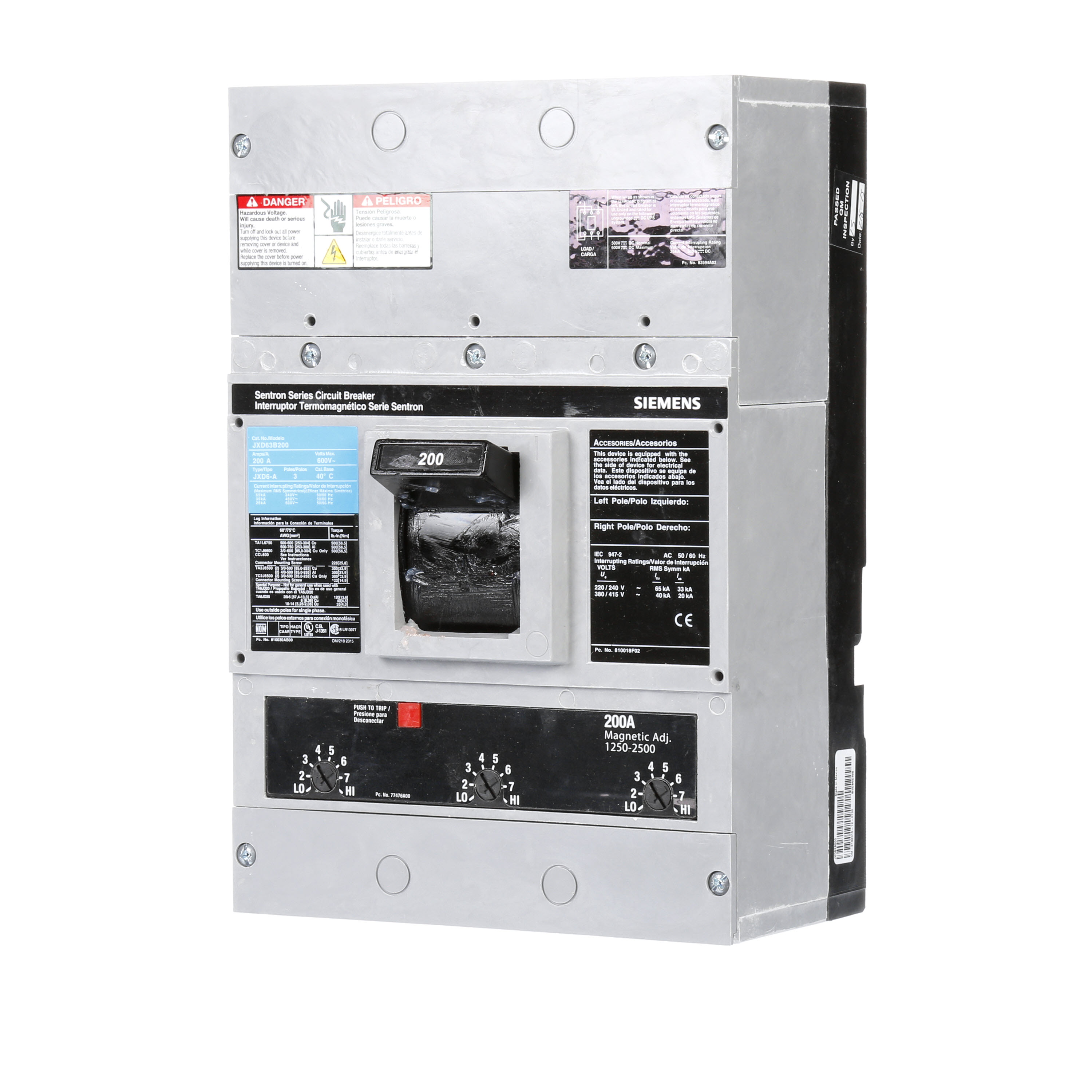

Siemens JXD63B200 3-Pole 600 VAC 200 Amp 25 kA Non-Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker

  • Manufacturers: Siemens
  • Brand Name: Siemens
  • BPN: ITEJXD63B200
  • MPN: JXD63B200
  • UPC:783643213043
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY. 200A 3-POLE (25KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.

Actuator      :      Varying
Amperage Rating      :      200 Amp
Amperage      :      200 Amp
Application      :      Standard 40C Breaker
Auxiliary Contacts      :      N/A
Brand Name      :      Siemens
Connection      :      N/A
Current Rating      :      200 Amp
Current      :      200 Amp
ETIM 7 Class      :      EC000228
Enclosure Standard      :      Varying
Frame      :      JD
Frequency Rating      :      50/60 Hz
Height      :      14-1/2 Inch
Interrupt Rating      :      25 kAIC
Length      :      6-1/2 Inch
Load Rating      :      N/A
Number of Poles      :      3 Pole
Operating Temperature      :      40C
Standards      :      UL/HACR
Sub Brand      :      Sentron
  • pdfSpec Sheet https://digitalcontentcenter.compas.siemens-info.com/SIE_CS_JD-LD-Frames_Cut-Sheet.pdf
