HNXD63B900 Siemens
Siemens HNXD63B900 ITEHNXD63B900
Send Print
  1. pin-int

ITEHNXD63B900

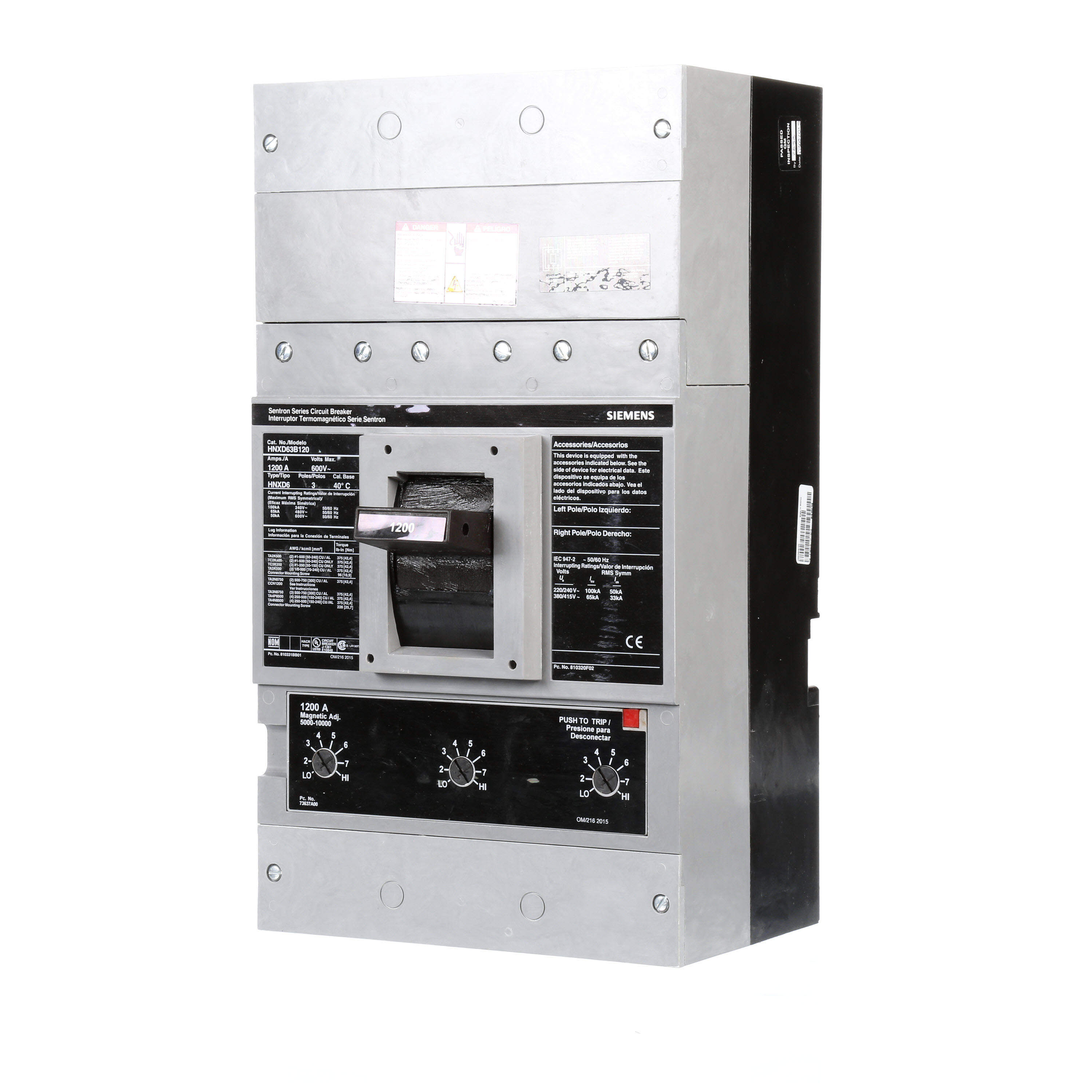

Siemens HNXD63B900 BRKR HND6 3P 600V 90

  • Manufacturers: Siemens
  • Brand Name: Siemens
  • BPN: ITEHNXD63B900
  • MPN: HNXD63B900
  • UPC:783643252387
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER ND FRAME WITH HIGH BREAKING CAPACITY. 900A 3-POLE (50KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 9.00 x 16.0 x 6.00.

Actuator      :      Varying
Amperage Rating      :      900 Amp
Amperage      :      900 Amp
Application      :      Standard 40C Breaker
Auxiliary Contacts      :      N/A
Brand Name      :      Siemens
Connection      :      N/A
Enclosure Standard      :      Varying
Frame      :      ND
Frequency Rating      :      50/60 Hz
Height      :      19 Inch
Interrupt Rating      :      50 kAIC
Length      :      10 Inch
Load Rating      :      N/A
Number of Poles      :      3 Pole
Operating Temperature      :      40C
Standards      :      HACR
Sub Brand      :      Sentron
  • pdfSpec Sheet https://digitalcontentcenter.compas.siemens-info.com/SIE_CS_MD-ND-Frames_Cut-Sheet.pdf
