KTG200 Siemens
Siemens KTG200 ITEKTG200
Send Print
  1. pin-int

ITEKTG200

S-A KTG200 CONTROL TRANSFORMER,208-

  • Manufacturers: Siemens
  • Brand Name: Siemens
  • BPN: ITEKTG200
  • MPN: KTG200
  • UPC:754554024240
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

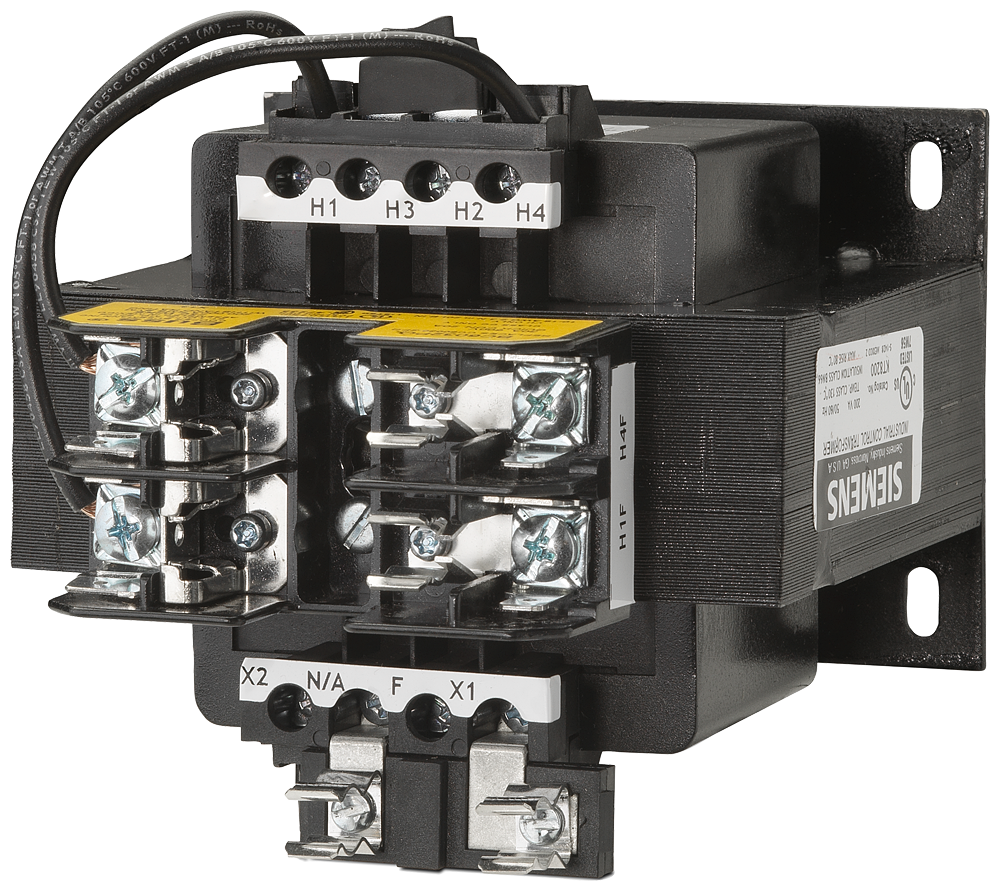

Control Power Transformer, 200va, H2 SEC 115v, Kit

Brand Name      :      Siemens
Connection Type      :      Screw-Type Terminals
Country of Origin      :      Mexico
ETIM 7 Class      :      EC002485
Number of Phases      :      1 Phase

Specifications

  • Country of Origin: MX
  • Type: KT
  • Phase: 1 / 1
  • Wattage: 200
  • Enclosure: Open
  • Input Voltage: 208
  • Output Voltage: 24
  • Standard: UL / CSA
  • Special Features: Complete kit
  • Mounting: Surface mounting / Any
  • Application: Control power voltage
  • Sub Brand: Control Power Transformer
  • Frequency Rating: 50 Hz … 60 Hz / 50 Hz … 60 Hz
  • Temperature Rating: -20 Cel … 40 Cel / -4 [degF] … 104 [degF]
  • Connection: Screw-type terminals (touchsafe) / Screw-type terminals (tou
  • pdfSpec Sheet https://media.distributordatasolutions.com/siemenscomplete/2023q3/documents/18878fd713a08f3fc5534192cd084d6998961263.pdf
