MC0606L1200RA Siemens
Siemens MC0606L1200RA ITEMC0606L1200RA
Send Print
  1. pin-int

ITEMC0606L1200RA

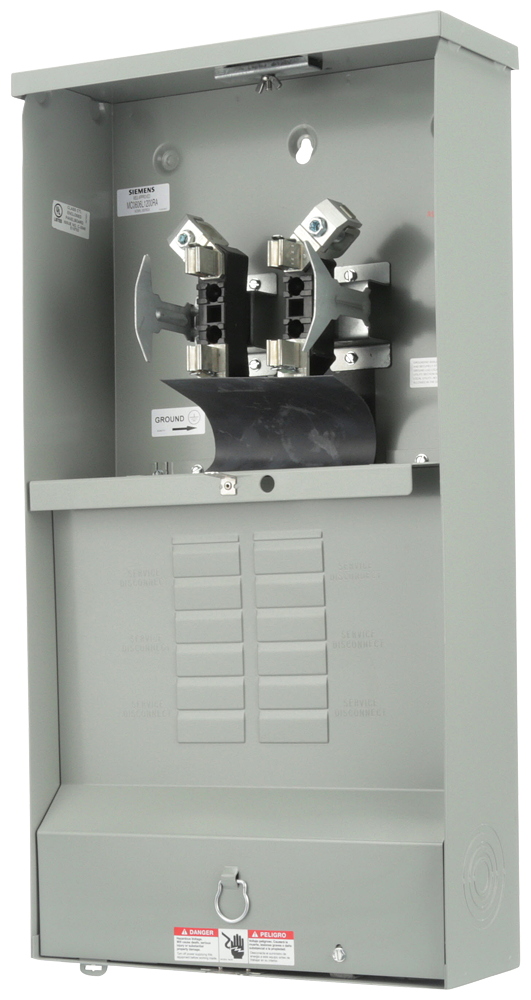

Siemens MC0606L1200RA 120/240 VAC 200 Amp 1-Phase 3-Wire Ringless Combination Meter Load Center

  • Manufacturers: Siemens
  • Brand Name: Siemens
  • BPN: ITEMC0606L1200RA
  • MPN: MC0606L1200RA
  • UPC:783643510609
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

SIEMENS LOW VOLTAGE METER LOAD CENTER COMBINATION. MAIN LUG 6 (1 INCH) SPACES INTERIOR ALLOWING MAX 6 CIRCUITS. 4-JAW METER / 1-PHASE SYSTEM RATED 200A. SPECIAL FEATURES: OH/UG FEED, RINGLESS TYPE COVER, ALUMINUM ENCLOSURE

Amperage Rating      :      200 Amp
Amperage      :      200 Amp
Application      :      SERVICEENTRANCEEQUIPMENT
Brand Name      :      Siemens
Cable Entry      :      TOP/BOTTOM
Country of Origin      :      USA
Cutout Size      :      1in spaces
ETIM 7 Class      :      EC000214
Enclosure Standard      :      Ringless/Aluminum
Frequency Rating      :      TRUE
Height      :      7 Inch
Insulation      :      None
Length      :      28.8 Inch
Mounting      :      SURFACE
Number of Cutouts      :      6S
Number of Phases      :      1 Phase
Operating Temperature      :      N/A
Phase      :      1
Size      :      1
Standards      :      UL
Sub Brand      :      Modular Metering
Terminal      :      4-JAW

Specifications

  • Standard: UL67
  • Length: 28.800000000 IN
  • Width: 14.800000000 IN
  • Mounting: Surface
  • Cable Entry: OH/UG
  • Height: 7.000000000 IN
  • Weight: 16.600000000 LB
  • Brand Name: Siemens
  • Amperage Rating: 200
  • Country of Origin: US
  • Number of Cutouts: 6
  • Frequency Rating: false
  • Enclosure: Ringless/Aluminum /
  • Terminal: Tin-plated aluminum extrusions 6061-T6
  • pdfSpec Sheet https://media.distributordatasolutions.com/siemenscomplete/2021q3/documents/91853d6249d9a4a5edb7a8b2ba907d1ad2450d9b.pdf
