MC2040B1150RJBC Siemens
Siemens MC2040B1150RJBC ITEMC2040B1150RJBC
Send Print
  1. pin-int

ITEMC2040B1150RJBC

Siemens MC2040B1150RJBC MC 20S/40C 150A

  • Manufacturers: Siemens
  • Brand Name: Siemens
  • BPN: ITEMC2040B1150RJBC
  • MPN: MC2040B1150RJBC
  • UPC:783643510579
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

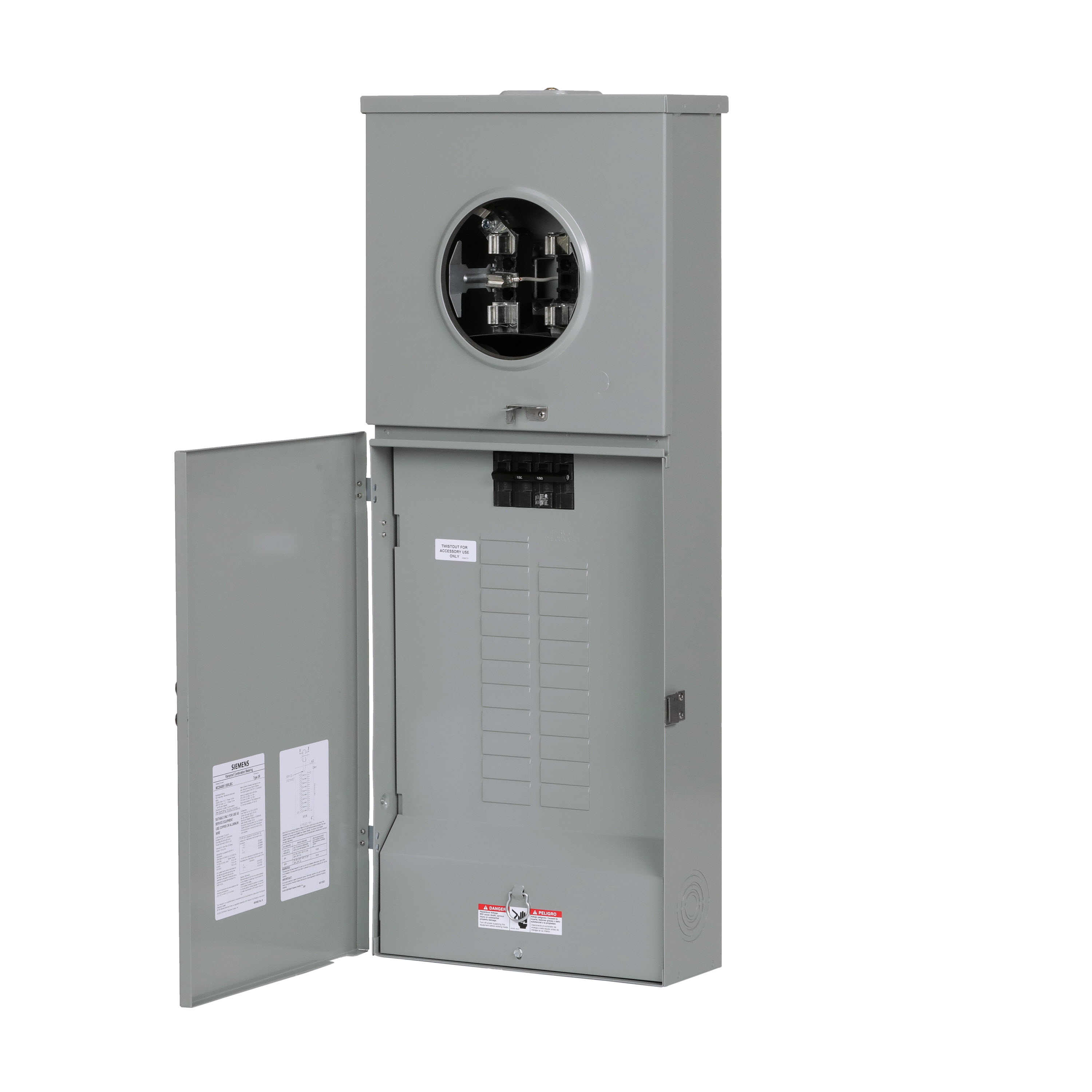

SIEMENS LOW VOLTAGE METER LOAD CENTER COMBINATION. FACTORY INSTALLED MAIN BREAKER 20 (1 INCH) SPACES INTERIOR ALLOWING MAX 40 CIRCUITS. 5-JAW METER / 1-PHASE SYSTEM RATED 150A. SPECIAL FEATURES OH/UG FEED, RINGLESS TYPE COVER, HORN BYPASS SOCKET

Amperage Rating      :      150 Amp
Amperage      :      150 Amp
Application      :      SERVICEENTRANCEEQUIPMENT
Brand Name      :      Siemens
Cable Entry      :      TOP/BOTTOM
Cutout Size      :      1in spaces
ETIM 7 Class      :      EC000214
Enclosure Standard      :      Ringless
Frequency Rating      :      TRUE
Insulation      :      None
Mounting      :      SURFACE
Number of Cutouts      :      20S
Number of Phases      :      1 Phase
Operating Temperature      :      N/A
Phase      :      1
Size      :      1
Standards      :      UL
Sub Brand      :      Meter Combos
Terminal      :      5-JAW
  • linkSpec Sheet https://mall.industry.siemens.com/tedservices/DatasheetService/DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:MC2040B1150RJBC&language=en
