SLVBR4630G Siemens
Siemens SLVBR4630G ITESLVBR4630G
Send Print
  1. pin-int

ITESLVBR4630G

Siemens SLVBR4630G SENTRON SLVB

  • Manufacturers: Siemens
  • Brand Name: Siemens
  • BPN: ITESLVBR4630G
  • MPN: SLVBR4630G
  • UPC:783643551558
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

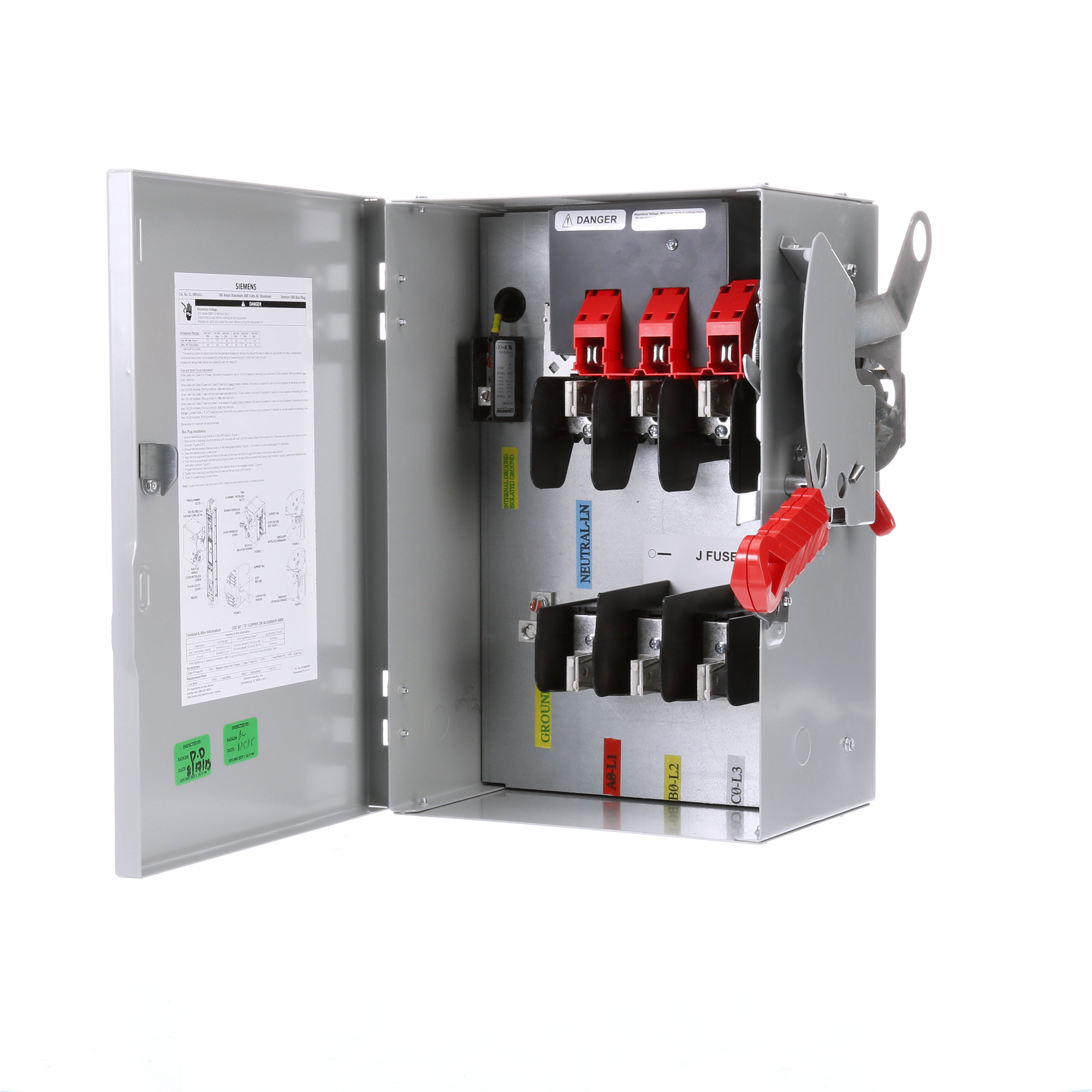

3 Phase 4 Wire Sentron II Heavy Duty Fusible Switch, Riser Orientation. 600V , 100A Max Ampere Rating, IP40, Internal Ground

Application      :      BUSWAYFUSIBLESWITCHPLUGDISCONNECT
Brand Name      :      Siemens
Construction      :      Riser
Country of Origin      :      Mexico
ETIM 7 Class      :      EC002271
Height      :      15.86 Inch
NEMA Rating      :      IP40
Number of Phases      :      3 Phase
Number of Wires      :      4 Wire
Phase      :      3
Standards      :      UL
Sub Brand      :      SENTRONII

Specifications

  • Country of Origin: MX
  • Phase: 3
  • Standard: UL
  • Type: Sentron II
  • NEMA Rating: IP40
  • Number of Wires: 4
  • Application: Busway
  • Brand Name: Siemens
  • Construction: Riser
  • Sub Brand: Sentron BW Plugs Fusible
  • Special Features: Heavy Duty Fusable Switch
  • pdfSpec Sheet https://media.distributordatasolutions.com/siemenscomplete/2023q3/documents/95c0ff68088220ac5e8a84eb66bac0ebf55ff535.pdf
